roller shutter door roll forming machine/gutter roll forming machine/roll forming machine

roll forming machine

 1.Processing flow chart of  roller shutter door roll forming machine/gutter roll forming machine /roll forming machine:

Decoiling—active feeding (put the coil strip into the first feeding roller)—leveling —roll forming —computer control system—hydraulic cutting—product to stand

2.Technical specifications of the  roller shutter door roll forming machine/gutter roll forming machine /roll forming machine:

1 . suitable to process color steel plate

2  width of the plate 1250mm

3  roller station: 17steps

4 dimensions  9500*1550*1910mm

5 power :4+4kw

6 thickness of the plate :0.3-0.6mm

7 material of the plate Cr12

8 diameter of the roller Φ70mm

9 weight about : 3.5 tons

10 voltage 380V 50HZ 3Phases

11 control system PLC control

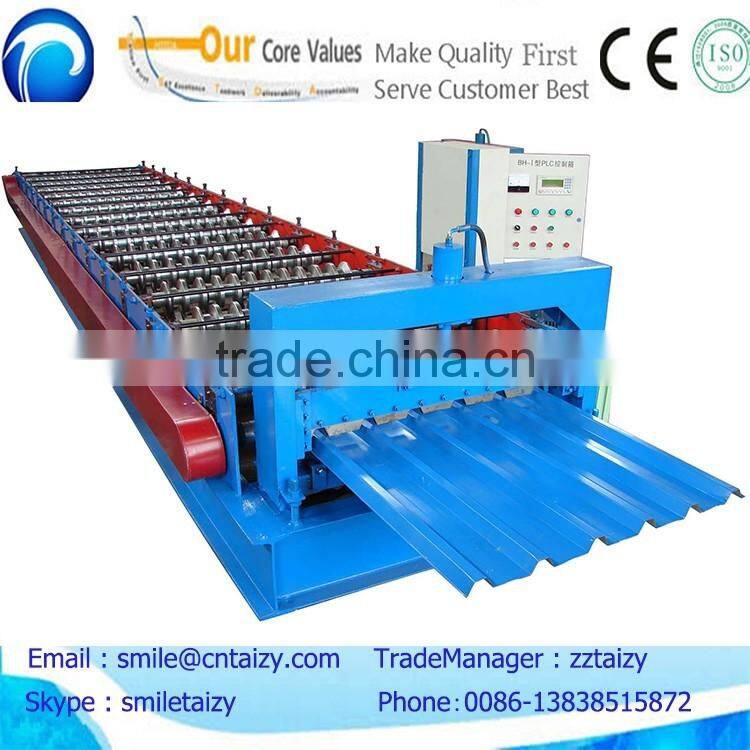

3.Pictures of the  roller shutter door roll forming machine/gutter roll forming machine/ roll forming machine:

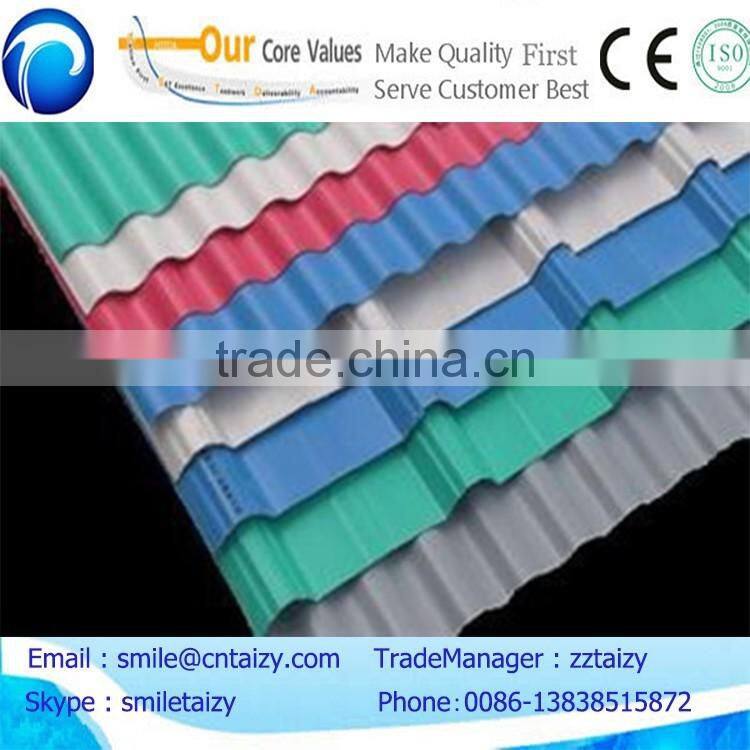

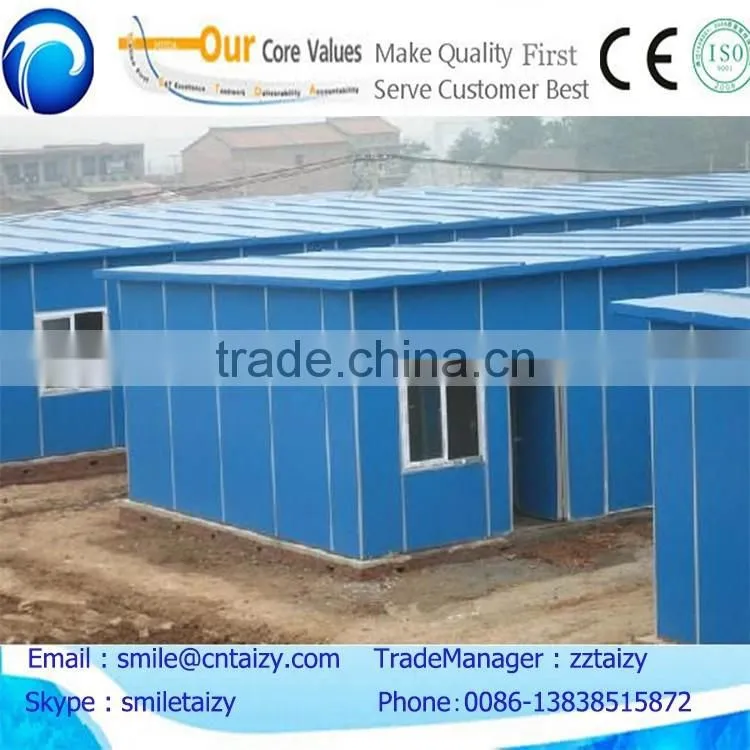

usage and the finished products:

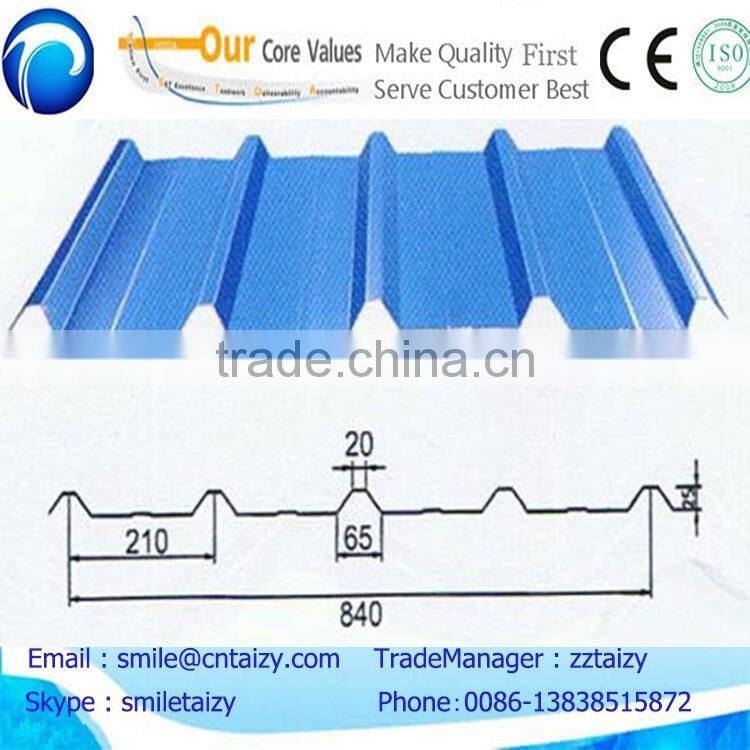

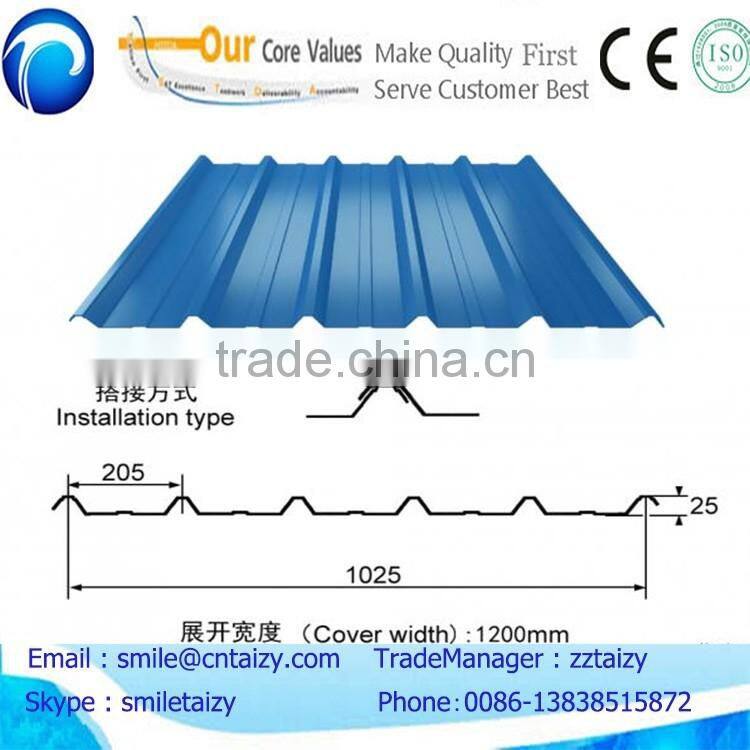

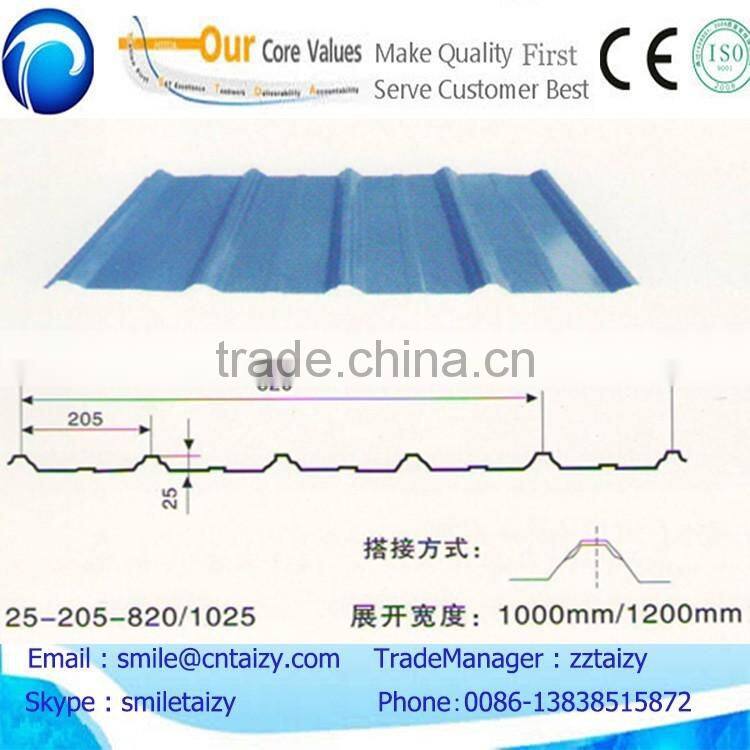

product size for your reference:

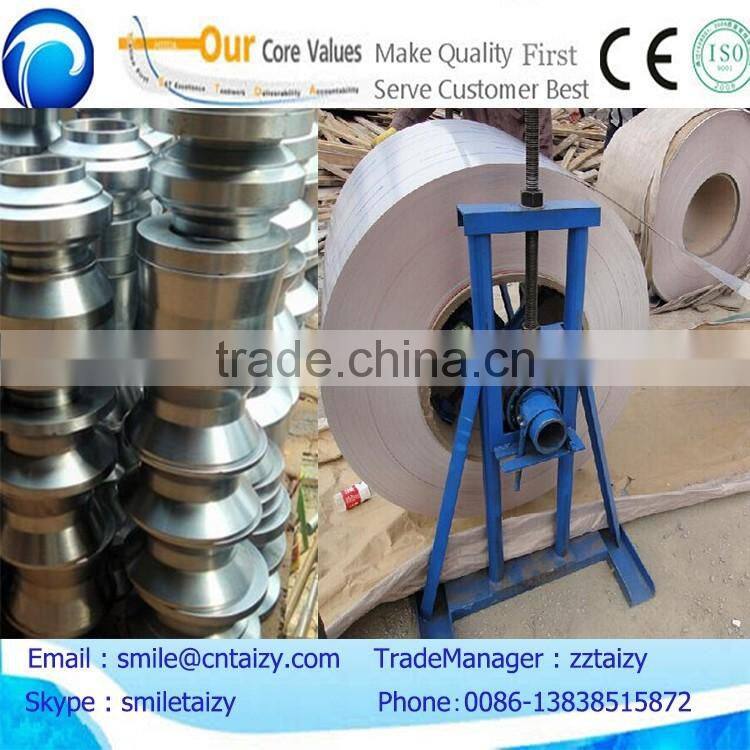

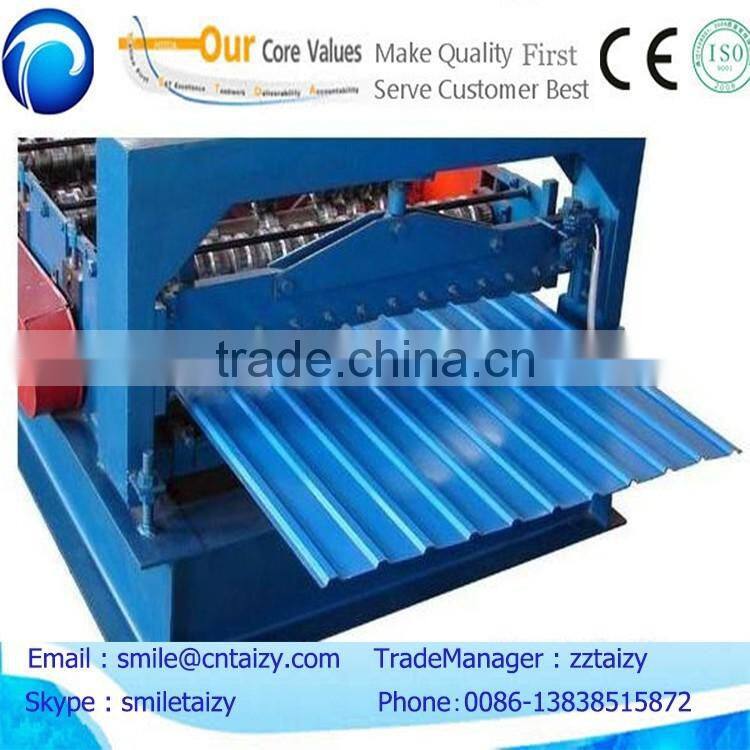

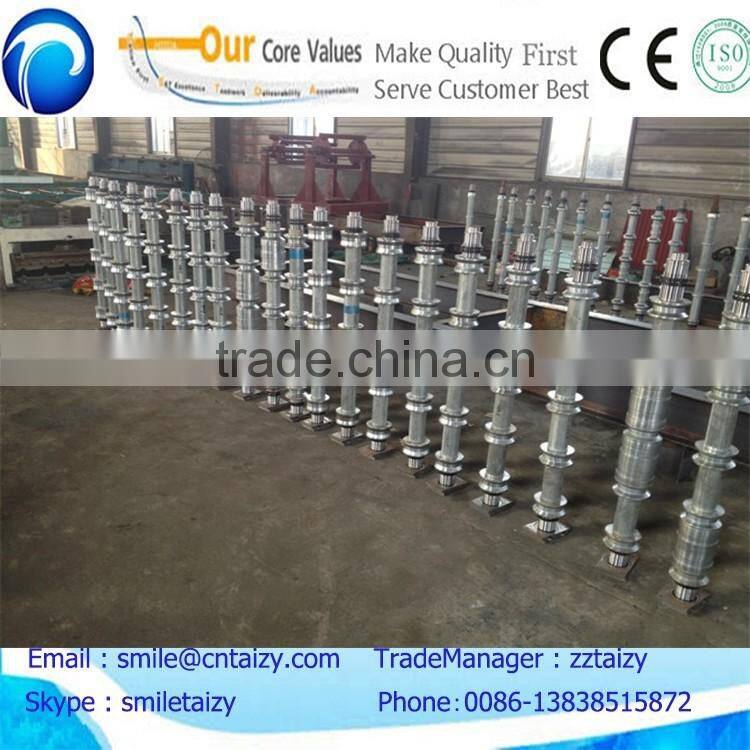

details and structure:

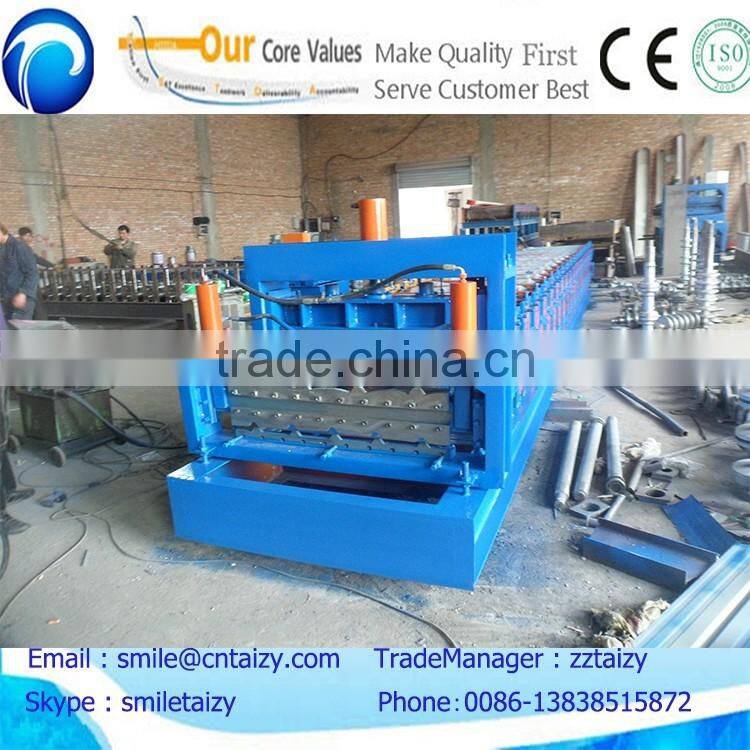

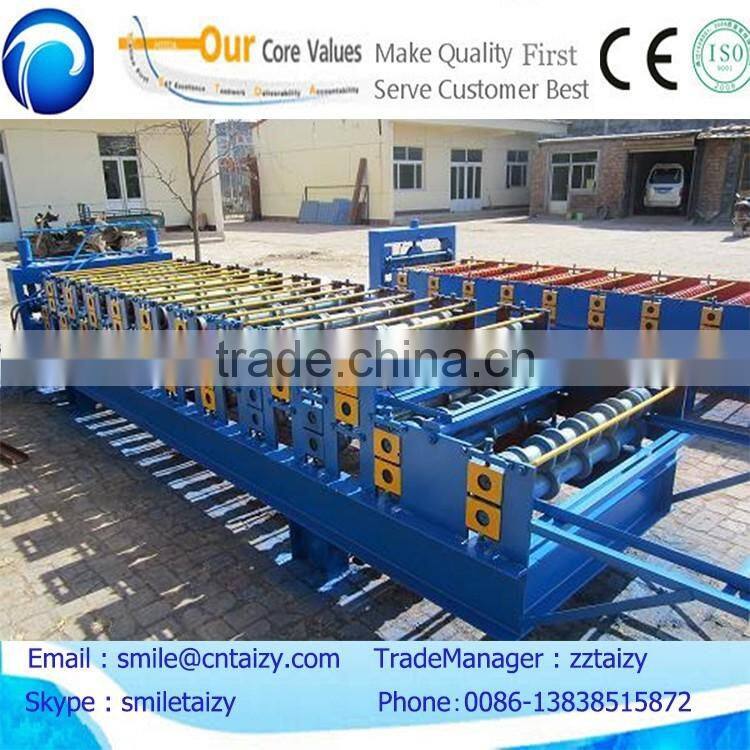

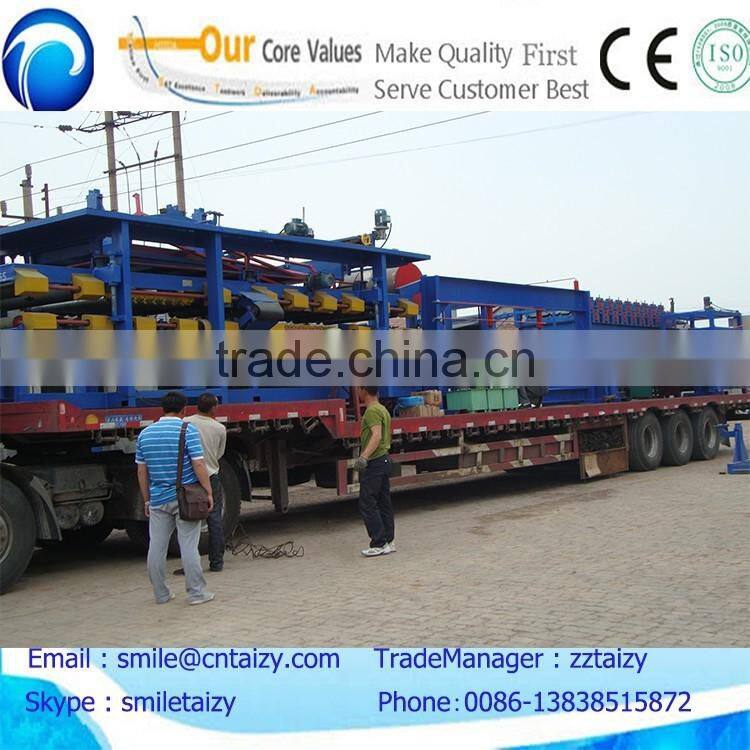

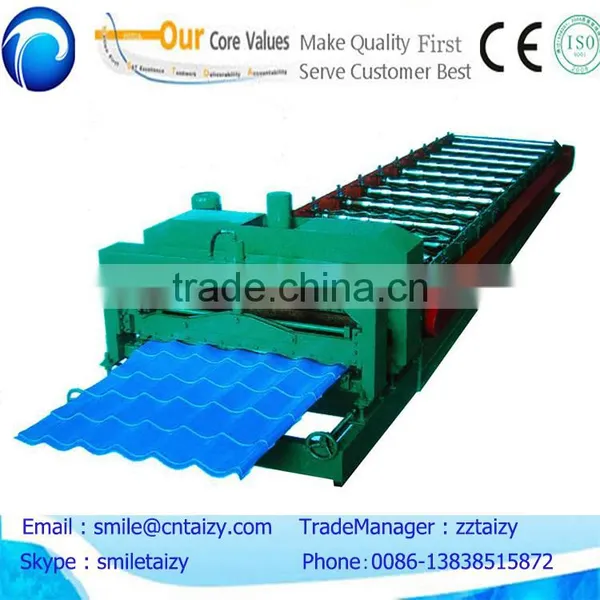

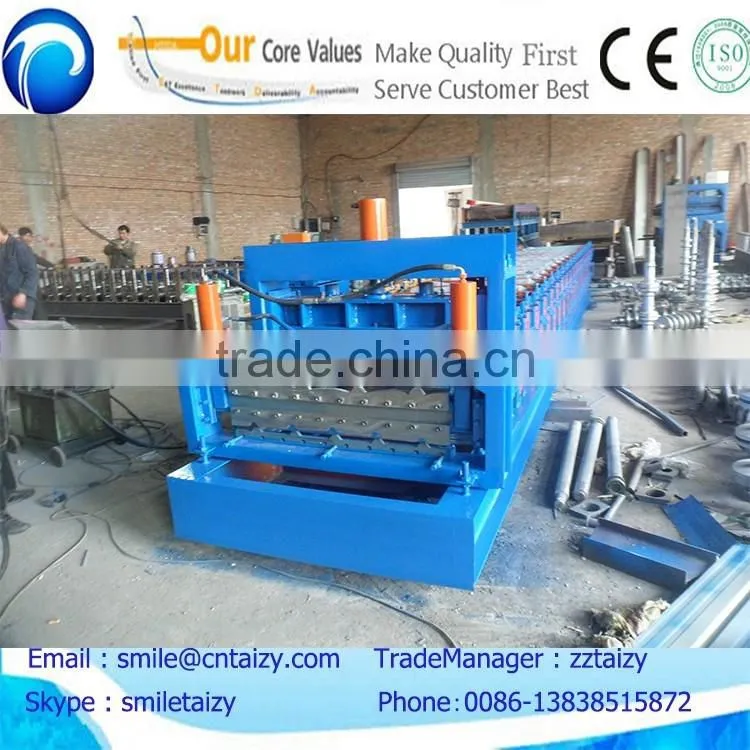

more pictures about the machine:
