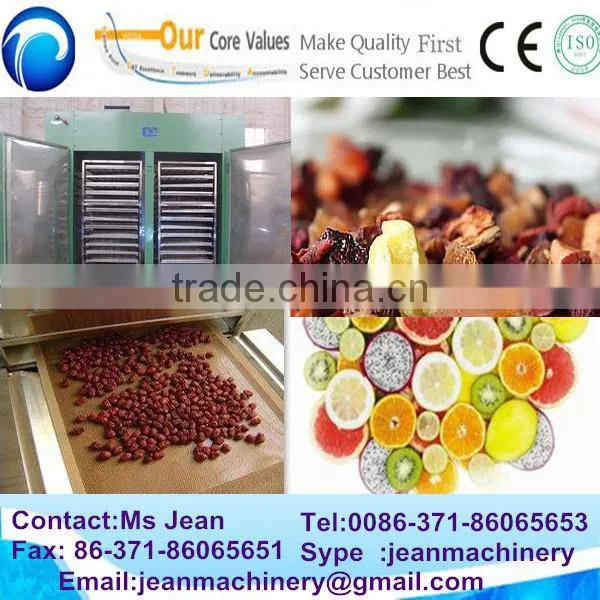

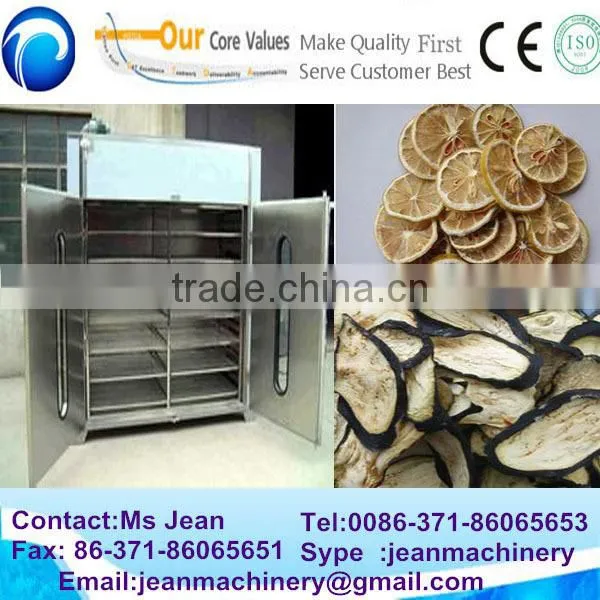

Fruit and vegetable dryer processing line / automatic cart dryer for fruit and vegetable (0086-13683717037)
Brief introduction of infrared fruit dryer machine
This machine is made by a low noise anti-high temperature axial flow fan and an automatic control temperature system. The whole circulation system is fully enclosed to make that the heat efficiency of the drying machine increases from traditional 3%-7% to 35%-45%. The highest heat efficiency can reach 50%. This saves lots of energy for our country and increases the economic benefits.
Character of infrared fruit dryer machine
1) Most of the hot air is circulated in the infrared fruit dryer machine. By using the forced
ventilationfuntion, there are adjustable air distribution inside the oven. The materials can be dried uniformly.
2) Heating source: electricity, steam, far infrared of steam and electricity.
3) Temperature allowed with this tray oven drying equipment heat 50°C-140°C,the maximum is 150°C. Electricity heat 50-350°C.
4) automatic control system and computer control system for your choice.
5) If you have special request, we also could customize the pork drying machine for you.
6) Baking plate dimension: 460*640*45mm
Technical parameter
Model |
Capacity each batch(kg) |
Heating source |
Power |
Baking trays |
Trollys |
Diemension |
TZ-D1 |
60 |
Electric steam or gas |
9 |
24 |
1 |
1380*1200*2000mm |
TZ-D2 |
120 |
Electric steam or gas |
15 |
48 |
2 |
2260*1200*2000mm |
TZ-D3 |
240 |
Electric steam or gas |
30 |
96 |
4 |
2260*2200*2000mm |
TZ-D4 |
360 |
Electric steam or gas |
45 |
144 |
6 |
2260*3200*2000mm |
TZ-D5 |
480 |
Electric steam or gas |
60 |
192 |
8 |
4280*2200*2270mm |
Pictures
