AZEUS Used machine pellet pto
- 100 Set / Sets per Month
- Qingdao/Shanghai
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | AZEUS |
Model Number: | AZS-SKJ500-2 | Voltage: | 380V or as per your local voltage | Power(W): | 55kw |
Dimension(L*W*H): | 2000x1100x1800mm | Weight: | 1500kg | Certification: | CE TUV |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Wooden box
Packing size: 2000 x 1100 x 1800 mm
Packing weight: 1600kg
Product Description

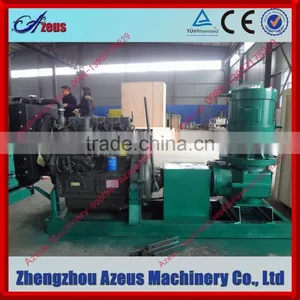

AZEUS Used Machine Pellet Pto
1. Working principle of machine pellet pto
The machine pellet pto works on vertical principle. The raw material is put into the hopper from above, and then it drops down into the pelletizing area. The die is stationery while rollers are rotating. When falling into this area, materials will naturally be compressed into pellet between rollers and die through the die holes.
2. machine pellet pto application:
1. Our flat die machine pellet pto can be used for producion of animal feed, including chicken, pig, cow, sheep, horse, duck etc.
2. And also it can make all kinds of bio-fuel pellet. The raw material can be sawdust, wood chips, husks, waste papers, brans etc.
3. machine pellet pto advantage:
Due to its simple design and operation, flat die sell pellet machine used is much more popular with small scale industrial production and family use.
1. The gear box of our flat die pellet machine is made of high quality grey cast iron materials with low noise and good shock resistance.
2. The shell with thicker casting, could greatly strengthen the machine strength, and to eliminate the feed grain machine shell fracture phenomenon.
3. The mold and press roller is made of high quality alloy steel with wear-resisting material, hardness at 55-60 HRC.
4. Our flat die machine pellet pto adopts the best die hole compression ratio as per your condition of raw material etc.
5. It has the safe electronic control system, complete with CE standard operating system, stop button can be in emergency fast closing machine.
6. It is utilizing special high quality material and advanced even shaft driving device.
7. Our machine pellet pto employs vacuum heat treatment, which imported from German to extend life span by 5-7 times longer than the common one.
4. Machine pellet pto Parameter
Specification | Capacity | Power | Density | Moisture | Packing size | weight |
AZS-SKJ200 | 100-120kg/h | 7.5KW | 1.1-1.4g/m3 | 13-18% | 1150x530x750 | 320KG |
AZS-SKJ250 | 180-200kg/h | 15kw | 1.1-1.4g/m3 | 13-18% | 1250x600x850 | 400kg |
AZS-SKJ300 | 200-300kg/h | 22KW | 1.1-1.4g/m3 | 13-18% | 1300x600x900 | 550KG |
AZS-SKJ400 | 400-500kg/h | 30KW | 1.1-1.4g/m3 | 13-18% | 1650x1000x1600 | 800KG |
AZS-SKJ450 | 650-750kg/h | 37KW | 1.1-1.4g/m3 | 13-18% | 1800x1000x1750 | 1300KG |
AZS-SKJ500 | 700-900kg/h | 55KW | 1.1-1.4g/m3 | 13-18% | 2000x1100x1800 | 1600KG |
AZS-SKJ800 | 1500-2000kg/h | 90KW | 1.1-1.4g/m3 | 13-18% | 2250x1250x2200 | 3800KG |
5. Different models-- machine pellet pto
6. Plant/Production line-- machine pellet pto
We can also offer the related machine and design the complete product line according to your raw material and requirement, such as crushing machine, dryer, cooler and packing machine etc.
Packing:
1. All machines, which is less than a full container, are packed by the standard wooden case for exporting. So it is safe and strong enough for a long journey from our factory to your place.
2. If all the machines are shipped by a full container, the container will be loaded in our factory by our workers. Also, all the machines will be fixed onto the container.
Delivery:
1. the machine will be sent to you by sea, by air or even by International courier service.
2. the dievery time is usually 20-25 days upon receipt of your depoist or LC.
Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kind of machinery. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.
Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.
We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
1. the warranty time is one year from the date you get the machine, except the easy-wear parts.
2. If any parts are found defective in quality in the first year, we shall replace it freely.
3. we are responsible for the smooth operation of the machines. If you have any problem during production, just feel free to contact us. We assure you our soonest response.
Payment:
We accept different method for payment, just like TT, LC, escrow. You just need to choose one which is conveninet and safe for you.
Please contact me to know more information about machine pellet pto .
