MKLH420 90KW Sawdust Pellet Machine

MKLH420 90KW Sawdust Pellet Machine photo-1
US$ 20,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
AZEUS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Guangzhou Ningbo Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name AZEUS
Model Number AZSMKLH420
Voltage 380V/50HZ
Power(W) 90KW
Dimension(L*W*H) 3150x1100x1650mm
Weight 2.1T
Certification CE
Warranty 12 month
After-sales Service Provided Overseas service center available

MKLH420  90KW Sawdust Pellet Machine

Product Description

This sawdust pellet machine is used to produce biomass fuel pellets from all kinds of biomass particles, such as wood sawdust, straw, rice husk, peanut shell, EFB, PKS, corn cobs, newspaper, alfalfa etc. And the biomass pellets can be applicable in indstrial boiler, power plant, animal bedding, pellet stove etc.



Raw Material

MKLH420 90KW Sawdust Pellet Machine

Sawdust Pellet Machine Features

1)   The main drive adopts high precision GEAR DRIVING and the capacity is increased by 20% than belt drive.

2)   Super quality IMPORTED bearing and oil seal to ensure high efficiency, stability and low noise.

3)   The pelletizing chamber is equipped with air draft COOLING SYSTEM to ensure the capacity of pellets.

4)   The variable-frequency and variable-speed  MOTOR is adopted to ensure the quality of the pellet.

5)   It’s optical of bore diameter of ring die that is made of ALLOY STEEL to ensure long life, so to save cost of replacement.

6)    Advance compensatory S-SHAPE spring coupling with the structure of novel, compact, safe, low noise and fault.

7)    The sawdust pellet machine can be made to semi-automatic oil lubricating system or fully automatic oil-lubricationg system, according to your request.



Sawdust Pellet Machine Parameter

Model

Capacity

Motor

power

Feeder

power

Force feeder power

Ring die inner dia

Noise

AZSMKLH350

0.6T/H

55KW

1.5KW

0.75KW

350mm

86db(A)

AZSMKLH420

1.0T/H

90KW

2.2KW

1.1KW

420mm

AZSMKLH508

1.5T/H

110KW

2.2KW

1.1KW

508mm

AZSMKLH558

1.8-2.0T/H

132KW

2.2KW

1.1KW

558mm

90db(A)

AZSMKLH678

3T/H

220KW

3.0KW

1.5KW

678mm

AZSMKLH768

4T/H

315KW

4.0KW

2.2KW

768mm



MKLH420 90KW Sawdust Pellet Machine

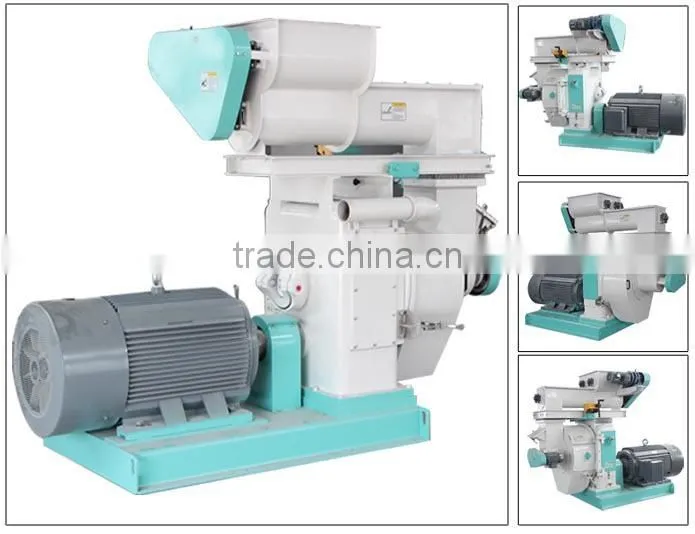

Detailed Images for Sawdust Pellet Machine

MKLH420 90KW Sawdust Pellet Machine



Automatic Biomass Wood Pellet Production Line

MKLH420 90KW Sawdust Pellet Machine

1) Crushing-wood crusher

2) Drying-Drum dryer

3) Pelletizing- sawdust pellet machine

4) Cooling-Contraflow cooler

5) Packing-packing machine



We have different capacit of pellet line: 200-300kg/h, 500kg/h, 800kg/h, 1000kg/h, 1500kg/h, 2000kg/h, 3000kg/h, 4000kg/h, 5000kg/h, 10000kg/h. The complete wood pellet line consists of process: Crushing, Drying, Pelletizing, Cooling, Packing.

MKLH420 90KW Sawdust Pellet Machine



Finished Products Wood Pellets

MKLH420 90KW Sawdust Pellet Machine

Packing & Loading

1. Sawdust pellet machine, which is less than a full container, are packed by the standard wooden case for exporting. So it is safe and strong enough for a long journey from our factory to your place.
2. If all the machines are shipped by a full container, the container will be loaded in our factory by our workers. Also, all the machines will be fixed onto the container.

MKLH420 90KW Sawdust Pellet Machine

Company Information

Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kind of machinery. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.
Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.

We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
MKLH420 90KW Sawdust Pellet Machine

FAQ

 1. What raw material can be used for sawdust pellet machine?

The raw material can be wood sawdust, straw, rice husk, peanut shell, EFB, PKS, corn cobs, newspaper, alfalfa etc.

2. What is the material of the ring die mould and roller?

We have two kinds of material: stainless steel and alloy steel. But it is better to use alloy steel material because of its high hardness and long using life to make wood pellets.

3. What is capacity of pellet machine you have?

The capacity of pellet machine we have: 0.1t, 0.2t, 0.5t, 0.8t, 1t, 1.5t, 2t, 3t, 4t. And the pellet line is: 0.1-0.15t, 0.2t, 0.5t, 1t, 1.5t, 2t, 3t, 5t, 10t.

4. The oil lubricating system is automatic or semi-automatic?
Generally, the machine is with semi-automatic oil lubricating system. And it also can be with automatic type according to your request.
