Ultrasonic automatic rhinestone transfer machine
- 500 Set / Sets per Month
- Shanghai Qingdao
- T/T Credit Card
Product Details
Condition: | New | Application: | For Apparel and textile products | Automatic Grade: | Automatic |
Production Capacity: | 150-180/min | Place of Origin: | Henan, China | Brand Name: | Azeus |
Model Number: | AZSDZ06 ultrasonic automatic rhinestone transfer machine | Voltage: | 110V-220V 50-60Hz | Power(W): | 300 W |
Dimension(L*W*H): | 1300*990*1300 mm | Weight: | 150 KG | Features: | Computer programmed / ultrasonic heating |
Certification: | CE ISO9000 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Plastic film covered and carefully loaded into plywood wooden case
Product Description
Ultrasonic automatic rhinestone transfer machine
Application of ultrasonic automatic rhinestone transfer machine
1)Hot fix the loose rhinestones onto different materials,such as,Cotton,Jeans,hemp fabric,woolen,synthetic fiber,silk,kintwear,leather,velvet.
2)Hot fix the loose rhinestones onto transfer papers.
Introduction of ultrasonic automatic rhinestone transfer machine
Computer touch screen control system characteristics:
1.Rtos system,fast starting speed,it only takes 3 seconds to enter into the system.Electricity can be powered off at any time.
2.Optional operating language.(Chinese,English,French,Spanish,Portuguese,Arabic,Russian).True color operation interface.
3.WIFI ,U disk input pattern are available.
4.To return to the starting point , to rotate , enlarge, and repeat patterns;boundary detection,pattern edit,and simulate hot fixing operation.
5.Color change function(You can manually change the disc or change color automatically according to a preset color sequence.)
6.The basic storage stitches is 600,000,000 needle.
7.Vacuum intelligent induction make it easy to use . Manual adjustment is unnecessary.
Main festures of ultrasonic automatic rhinestone transfer machine
1.The main components adopts imported electrical components,it is reliable quality.
2. Infrared positioning, precisely hot fix the rhinestone's position and be very strong.
3.Can continuously work 24-hour, high efficiency production.
4.Best choice for the products can not resist high temperature and easy to deformation and discoloration .
Technical parameter of ultrasonic automatic rhinestone transfer machine
Model | AZSDZ06-A | AZSDZ06-B | AZSDZ06-C |
Voltage | 220V/110V 50HZ/60HZ | 220V/110V 50HZ/60HZ | 220V/110V 50HZ/60HZ |
Speed | 150-180/MIN | 150-180/MIN | 150-180/MIN |
Net weight | 150KG | 500KG | 500KG |
Size(L*W*H)MM | 1300*990*1300 | 3300*1300*1300 | 4900*3000*1600 |
Working table size | 450*450mm | 400*500mm | 600*1200mm |
Welding head quantity | 1 head | 4 heads | 4 heads |
Rhinestone Disc(color) | 2 pcs(2 colors) | 8 pcs(2 colors) | 8 pcs(2 colors) |
Model | AZSDZ06-D | AZSDZ06-E |
Voltage | 220V/110V 50HZ/60HZ | 220V/110V 50HZ/60HZ |
Speed | 150-180/MIN | 150-180/MIN |
Net weight | 150KG | 200KG |
Size(L*W*H)MM | 1300*990*1300 | 1300*1030*1060 |
Working table size | 450*450mm | 400*450mm |
Welding head quantity | 1 head | 2 heads |
Rhinestone Disc(color) | 4 pcs(4 colors) | 4 pcs(2 colors) |
AZSDZ06-A AZSDZ06-C Mini type
AZSDZ06-B
Working pictures of our ultrasonic automatic rhinestone transfer machine
Detail Pictures of ultrasonic automatic rhinestone transfer machine

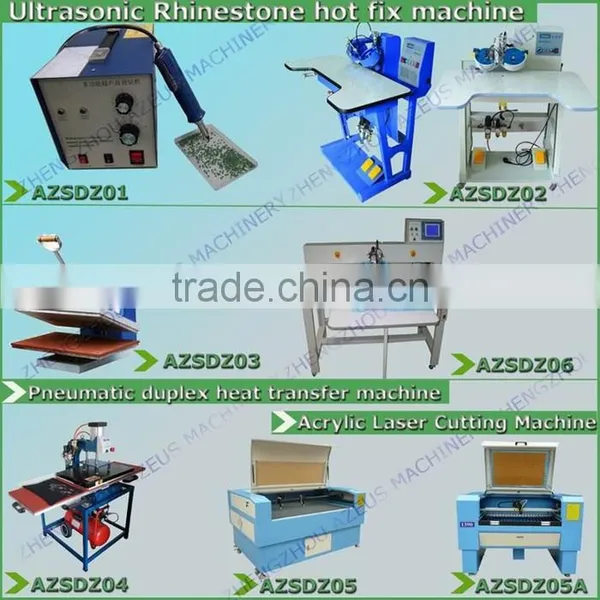

All types of our ultrasonic automatic rhinestone transfer machine
Working effect of ultrasonic automatic rhinestone transfer machine
Before (A little dull?) After (So amazing!)
Packaing and loading
Export wooden case package, safe and enough strongly!
Delivery methods
Payment terms
We accept different payment terms as below, you can choose the most suitable one.
Contact us
Chelsie Liu
Email:chelsie(at)
Tel:86-65996917
Mobile(Whatsapp):86-15139172420
Skype:1328590910(at)
