Automatic sinking & folating Fish/Cat/dog food making machine
I. Introduction of dog food making machine :
***The dog food making machine’s significantly different between pet food and traditional feeding method, it is widely used for producing grains into high-grade animal feed pellets.
***This feed machine not only could production the pet feed (such as cat feed, dog feed, bird feed and so on), but also could product the fish food (including floating fish feed and sinking fish feed). The puffing fish feed pellets can float on the water surface without dissolution for over 12 hours.
II. Working process of dog food making machine
After the material is sent into feeding device, they will be pressed by the screw shaft
with high pressure and temperature which makes the raw material fully cooked and
sterilized. Then the pressed material will be formed into pellets by shaping mould. You
can change different moulds to make pellets with different diameters. After that a cutting
device will cut the formed pellets into different length as required.
III. Technical parameters and Picture of dog food making machine
According to your requirement and production scale, dog food make machine can be classified into dry type machine and wet type machine.
Dry type dog food making machine
Model |
Capacity (T/H) |
Motor Power (kw) |
Feeding Power (kw) |
Screw Diameter (mm) |
Cutting Power (kw) |
AZSG-40C |
0.03-0.04 |
5.5 |
0.4 |
φ40 |
0.4 |
AZSG-50C |
0.06-0.08 |
11 |
0.4 |
φ50 |
0.4 |
AZSG-60C |
0.12-0.15 |
15 |
0.4 |
φ60 |
0.4 |
AZSG-70B |
0.18-0.2 |
18.5 |
0.4 |
φ70 |
0.4 |

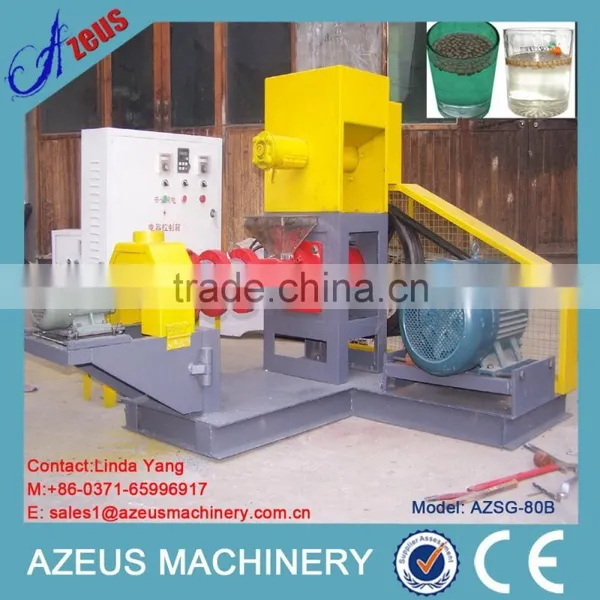

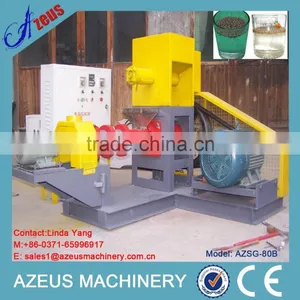

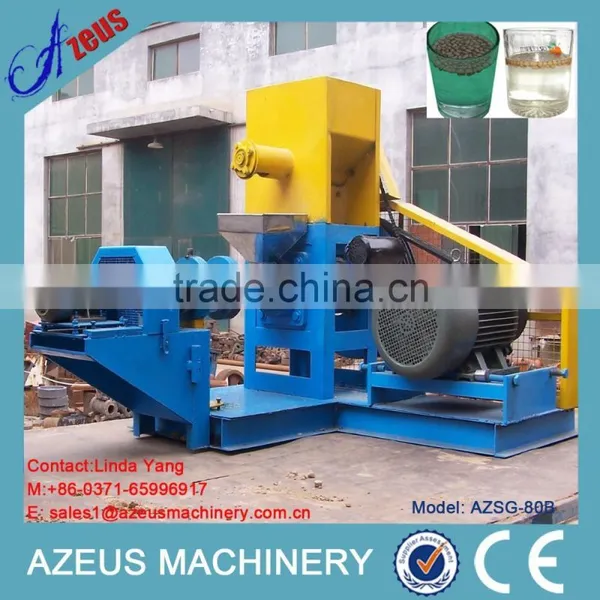

AZSG-80B |
0.2-0.25 |
22 |
0.4 |
φ80 |
0.6 |

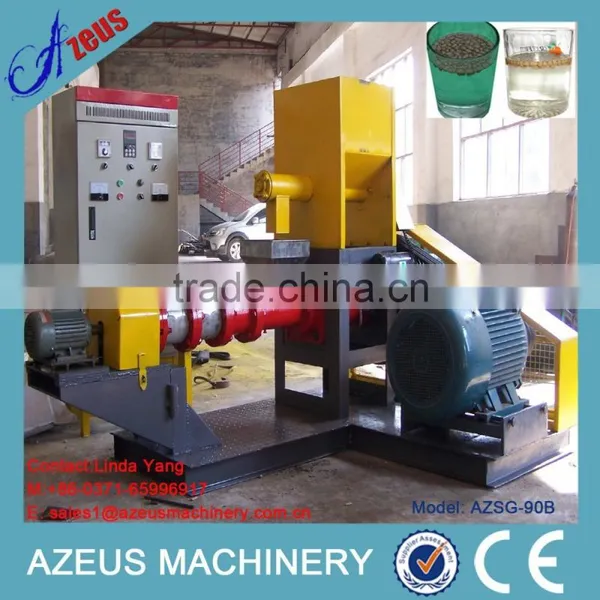

AZSG-90B |
0.32-0.35 |
37 |
0.6 |
φ90 |
0.8 |
AZSG-120B |
0.5-0.6 |
55 |
1.1 |
φ120 |
2.2 |
AZSG-135B |
0.7-0.8 |
75 |
1.1 |
φ133 |
2.2 |
AZSG-160B |
1-1.2 |
90 |
1.5 |
φ155 |
3.0 |
AZSG-200B |
1.8-2.0 |
132 |
1.5 |
φ195 |
3.0-4.0 |
Wet Type dog food making machine
Model |
Capacity (T/H) |
Main Power (kw) |
Feeding Power (kw) |
Screw Diameter (mm) |
Cutting Power (kw) |
Conditioner Power (kw) |
AZSS-60B |
0.18-0.2 |
15 |
0.4 |
φ60 |
0.4 |
0.75 |
AZSS-70B |
0.25-0.30 |
18.5 |
0.6 |
φ70 |
0.6 |
0.75 |
AZSS-80B |
0.35-0.40 |
22 |
1.1 |
φ80 |
0.8 |
1.1-1.5 |
AZSS-90B |
0.50-0.60 |
37 |
1.1 |
φ90 |
1.1 |
2.2 |
AZSS-120B |
0.70-0.80 |
55 |
1.1 |
φ120 |
1.5 |
2.2-3.0 |
AZSS-135B |
1.0-1.2 |
75 |
1.5 |
φ135 |
2.2 |
3.0-4.0 |
AZSS-160B |
1.8-2.0 |
90 |
2.2 |
φ155 |
2.2-3.0 |
4.0-5.5 |
AZSS-200B |
3.0-4.0 |
132 |
2.2 |
φ195 |
3.0-4.0 |
5.5 |
IV. Application and Features of dog food making machine
1. According to different requirements, variety shapes of high-grade feed pellets for
fish, shrimps .etc can be produced.
2. The finished pellets can keep floating for 3-15 hours without pollution to water.
3. The floating time can be controlled by the puffing degree adjustment.
4. Dog food making machine can make pellet from dia.1.0mm-20mm just by changing the
mold.
5. Electric heating device is adopted which can improve the feed expansion rate and
pellets floating time.
6. High temperature and high pressure cooking process can kill the salmonellosis and
bacterial infections and also makes the pellets easily to digest.
7. The cutting device can be adjusted to make pellets of different length.
8. The wet type machine needs a boiler to make steam which can conduct steam to the
conditioner and ripen the raw material in advance.
V. The raw material of dog food making machine
The feed machine is based on the raw material of corn meal, flour, Wheat middling, Wheat bran, rice bran, soybean meal, cottonseed meal, fish meal, bone meal, meat meal and etc. Then the material can be expanded to pellet feed which is different shaped, unique taste and rich nutrition, suitable for dog, cat, fish, bird, rabbit fox etc.
VI. The finally production of dog food making machine
VII. The finally feed suitable for many kinds of animal such as: fish, shrimp, cat, dog, etc.
VIII. The craft of whole fish food production line:
We will appreciated if these following 2 tips contained in your inquiry:
Tips 1. The model you prefer is:
Tips 2. The capacity of the machine you need is:
Thank you and you will get quickly and effectively responses.
Please contact me to know more information about the dog food making machine !
