Stainless Steel Double Screw Fish Feed Mill

Wooden case or 20' Container

Stainless Steel Double Screw Fish Feed Mill

Fish Feed Mill Features:
1. The feeding system, extruding system and cutting system adopts frequency control, to ensure stable performance and save energy.
2. With automatic lubricating system, it decrease power consumption and prolong the using life.
3. The indepent cutting device is more convenient to replace and adjust the cutter knife. Through changing different mould, it can get feed with different shape and size.
4. The screws is with self-cleaning function. The screw and screw slot can clean automatically, so there is no need to stop the machine to clean when change formula and products.
5. Screws are made of alloy steel with special technology, ensuring longer life.
6. Fish feed mill adopts dry extruding technology and self-heaitng method, no need the steam system. It can add the conditioner on the machine with wet extruding technology to reach higher capacity.

7. The machine body is made of stainless steel, to avoid rusting and to be easy to clean.

Main Raw Material
meat powder, fish meal, bone meal, bean meal, corn powder

Fish Feed Mill Parameter

Why Choose The Twin Screw Extruder To Make Fish And Pet Food?
1. The quality of interior and outerior is better. So the pellets will be more smooth and even.
2. The flow chart of production line is more easier. And it can clean the machine by itself, so there is no need to load and unload the equipment.
3. Light wearing for spare parts to save the cost of replacement.
4. Adapt to more materials, like high viscosity materials, low viscosity materials or high moisture, high-fat recipes products processing.

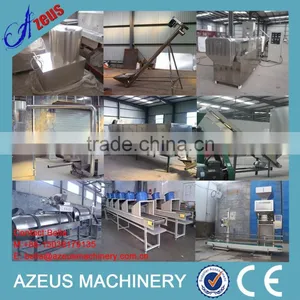

Automatic Pet/Fish Food Production Line

(1) Mixer: mixing raw material, water and other addtionals.
(2) Spiral hoister: conveying the mixed materials to the extruder by screw structure, ensuring clean raw materials.
(3) Extruder machine: there is a pair of screws to convey, extrude and heat materials, and materials discharge from the mould and cutted by the knife to get feed with different shape and size.
(4) Air conveyor: conveying the pet/fish food to the dryer through air
(5) Electric dryer: it is used to dry the feed. The dryer is built in heating device and adopts belt dryer device. And dry the feed through electric heating.
(6) Seasoning line: it is used to adjust the feed taste. The fronter part is for seasoning, and the latter part is for spraying oil with oil barrel. Thus the seasoning and spraying oil is operated separately, and increase the taste of feed.

Fish/Pet Food Production Line Parameter

Finished Product By Our Fish Feed Mill

1. The fish feed mill can produce different shape and different size of feed. Such as triangle shape, square shape, bone shape, fish shape and son.

2. The feed produced by extruder is easily digested to animals.

3. The feed diameter can be Φ1-20mm

Except for the common pet and fish food, the fish feed mill can also produce sandwich feed for pet, and flake feed for abalone and cucumber.
