Industrial Hot Air Dryer for Fruit and Vegetable

Name: Industrial Hot Air Dryer for Fruit and Vegetable
Brand: AZEUS
Price: USD $5,000 - 20,000 / Set

FOB Price

USD $5,000 - $20,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port Qingdao Shanghai Guangzhou
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Henan, China	Brand Name:	AZEUS
Model Number:	RXH-14-C CT-C-I	Type:	Other, hot air dryer	Voltage:	220V/380V
Power(W):	0.45/0.75Kw	Weight:	800kg	Dimension(LWH):	140012002000mm
Certification:	CE ISO	Warranty:	12 Months	After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

standard wooden package or as your requirement

Product Description

Industrial Hot Air Dryer for Fruit and Vegetable

Product Description

Brief introduction of the hot air dryer:

1. This hot air dryer is widely used for dehydration of vegetable, pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry products. Such as vegetables, fruits,fishes,medicines, Chinese herbs, particles, granules, packing bottle, pigment dyes, sausages,

plastic resins, and baking finish etc.

2. Two types for your choice: stainless steel 304 both inside and outside are OR stainless steel 304 inside and carbon steel outside

3. Stainless steel tray size is 640x460x45mm, there are 3 types of trays as per the raw materials you dry:

4. The material of heat preservation: fiberglass cotton thickness 80mm

5. Stainless steel trolley, easy to feed in and take out:

6. Energy-saving axial flow fan: each pc with power 0.45kw for single phase voltage and 0.75kw for three phase voltage.

7. Heat source: steam OR electricity. You need to prepare a bolier for steam heating, and no need for anything if for electricity heating.

8. Temperature is from 50°C to 140°C for steam heating and 50-350°C for electricity heating.

9. digital display: 1 set

Main technical parameter of the hot air dryer:

Model	Capacity	Power	Thermal area	Air Volume	Tray qty	Trolley Qty	N.W.	Dimension
Model	kg/batch	Kw	m2	m3/h	pcs	sets	kg	mm
RXH-14-C CT-C-IA	50-60	0.45/0.75(air fan) 9(heating)	10	3400	24	1	900	140012002000
RXH-14-C CT-C-I	100-120	0.45/0.75(air fan) 15(heating)	20	3450	48	2	1200	2630x1200x2000
RXH-27-C CT-C-II	200-240	0.9/1.5kw(air fan) 30(heating)	40	6900	96	4	1600	2300x2200x2000
RXH-41-C CT-C-III	300-360	1.35/2.25kw(air fan) 45kw(heating)	80	10350	144	6	2200	3300x2200x2000
RXH-54-C CT-C-IV	400-480	1.8/3kw(air fan) 60kw(heating)	100	13800	192	8	2900	4460x2200x2290

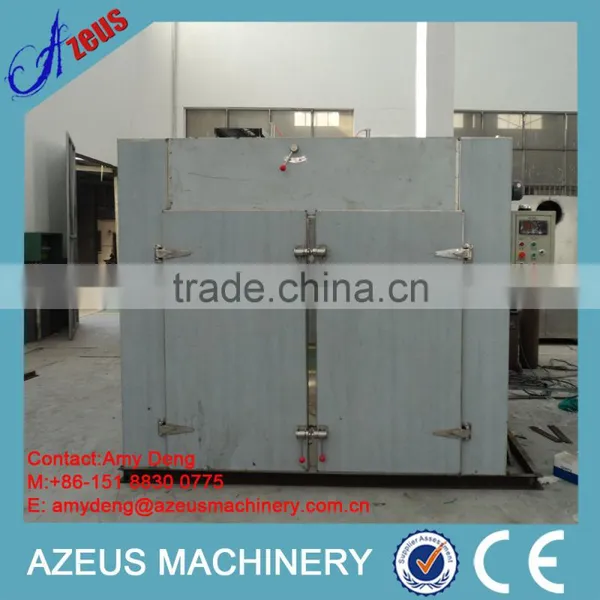

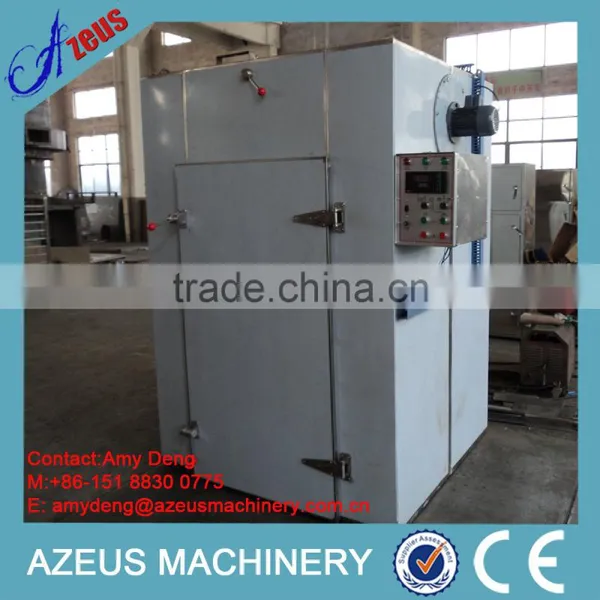

Detailed pictures of the hot air dryer:

Stainless steel 304 both inside and outside:

RXH-14-C CT-C-IA 50-60kg/batch

RXH-14-C CT-C-I 100-120kg/batch

RXH-27-C CT-C-II 200-240kg/batch

RXH-41-C CT-C-III 300-360kg/batch

RXH-54-C CT-C-IV 400-480kg/batch

Packaging & Shipping

1. For the models CT-C-IA/I/II/III hot air dryer, they are packed by the standard wooden case for exporting with carbon steel frame inside.
2. For the model CT-C-IV hot air dryer, it is packed in a 20'GP container with carbon steel frame inside.

Our Services

1. the warranty time is one year from the date you get the hot air dryer, except the easy-wear parts.
2. If any parts are found defective in quality in the first year, we shall replace it for free.
3. we are responsible for the smooth operation of the machines. If you have any problem during production, just feel free to contact us. We assure you our soonest response.
