Help CenterChicken Meat Smoker /sausage Smoking Machine/automatic Fish Smokehouse
Related Products
-
Meat Tumbling Machine/vacuum Meat Tumbler for Fish Chicken MeatUS$ 1 - 8,000MOQ: 1 Set -
Automatic Chicken Smoker/smokehouse Oven/smoke MachineUS$ 100 - 3,000MOQ: 1 Set
-
Meat Tumbler Machine / Vacuum Tumbler for Meat ProcessingUS$ 1 - 8,000MOQ: 1 Set
-
Meat Tumbling Machine /meat Tumbler Mixer /meat Kneading TumblerUS$ 1 - 3,000MOQ: 1 Set
-
Fish Meat Brine Injector / Chicken Meat Saline InjectorUS$ 1 - 1,500MOQ: 1 Set
fish smokehouse/meat smokehouse
Full automatic/electrical chicken smokehouse is an necessary equipment for cooked meat products. It has the function of drying, baking, smoked, steamed, etc, suitable for a variety of products processing such as sausage, meat, ham, poultry and a variety of fish.The operation is easy, machine is convenient and reliable.
This fish smokehouse is mainly make up by the furnace, heating system, circulating air system, smoked system and control system, etc..

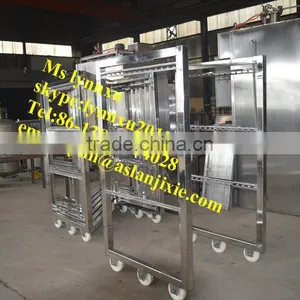

1. Furnace: all the components and the outer wall of the furnace internal made of stainless steel, and corrosion-resistant. Material will be hanging in the trailer into the furnace body, close the door, cooking and other processing can be carried out by setting process parameters.
2. Cooking part of the heating system: the furnace interior design an automatically generates the steam system which can heating furnace products directly. Steam output can be adjusted depending on the product. The furnace pressure does not allow more than 0. 08Mpa.
3. Circulating air system: the furnace at the top is equipped with two-speed electric fan, the amount of high-power and high winds to ensure Furnace heating, uniform temperature throughout, to ensure the quality of products is stable and reliable.
4. Smoked system: inner furnace have a fuming plate, can put sawdust or sugar on it, control the panel button fuming button, and adjust the time the smoke in uniform furnace smoked cooked products with smoke switch button time adjustment.
5. Control system: fully automatic electric/computer control part of the fumigation box using the advanced man-machine interface with a programmable controller, fully automatic control and monitoring of the various processes.Reliable operation and easy to operate, waterproof performance is good.
fish smokehouse technical parameter :
model |
YXX-120 |
YXX-250 |
YXX-500 |
YXX-750 |
YXX-1000 |
Capacity(kg/time) |
120 |
250 |
500 |
750 |
1000 |
Voltage (v) |
380 |
380 |
380 |
380 |
380 |
Motor(kw) |
3 |
6 |
9 |
12 |
15 |
Temperature(°) |
<100 |
<100 |
<100 |
<100 |
<100 |
Steam pressure(mpa) |
0.1-0.2 |
0.1-0.2 |
0.1-0.2 |
0.1-0.2 |
0.1-0.2 |
Water pressure(mpa) |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
Feed cart size(m) |
1*1.03*1.8 |
1*1.03*1.8 |
1*1.03*1.8 |
1*1.03*1.8 |
1*1.03*1.8 |
Machien size(m) |
1.29*2.2*1.96 |
1.29*2.2*3 |
2.36*2.2*3 |
3.43*2.2*3 |
4.49*2.2*3 |
Machine weight(kg) |
800 |
1600 |
2200 |
2600 |
2800 |
fish smokehouse photo :
Q:What is the guarantee time ? if machines broken or lost during sea freight who will take responsible ?
- A:Guarantee time is for one year from Machine arrive customer sea port. for every export machine we buy insurance for it . if machine lost or broken during sea freight . we take responsible for it .
Q: During Guarantee time , if machine broken by machine design ,what should we do?
- A:during guarantee time , if machine broken by machine design fault , we talk all responsible , for machine broken part free charge send to you , if after change broken part machine can not work , we would send new machine to you for exchange.
Q: Which kind documents your company can provided?
- A:after ship depart from China port ,we can get documents from Shipping company such as : bill or lading , insurance documents.packing list , commercial invoice . if you need , we also can apply CO ,FORM F, FORM E etc.
Q:After guarantee time , if we need spare parts , can you provided it ?
- A:we can provided for the machine spare part .
Q:Which kind of package you will use ?
- A:For export , we usually use plywood box . which meet export standard.
if you are interested in our fish smokehouse machines welcome to send inquire to us .
