Big capacity microwave equipment dryer/sterilizer/roaster for spices/herbs

Specifications

1)microwave drying machine
2 sterilization
3) save energy
4) easy to control
5) long life

        Microwave Equipment

1,WHAT IS THE MICROWAVE EQUIPMENT:

Using microwave  characteristics to  industrial produce, and make it equipment used in the production line, this kind of equipment is industrial microwave equipment.



2,THE MAIN FUNCTION OF THE MICROWAVE EQUIPMENT:

This machine fits for drying and sterilizing powders, granular, sheet-like or gel-like food, and additive, spices, flavoring, medicine, raw material of herbal medicine, nutritional health products, agricultural & sideline products, non-fired(or oil saving)instant noodles, noodles, rice powder needles, soy products, beef jerky, preserved meat, dried fish, tea, tobacco and so on; and for drying, peeling and baking almond, peach kernel, groundnut kernels, chestnut and so on; and for puffing of leisure food, pachyrhizus chips, potato chips, dried shrimps, fish maw and so on; and for sterilizing and oral liquor, pickles, a variety of small packaging food; and for thawing the frozen fish, poultry; and for drying beans; and for drying and desulfurating and deoxidizing the metallurgical chemical products; such as oxalate cobalt, sulfur powder, mid-ammonium tungstate, nickel hydroxide, bluestone, iron core, magnetic core and magnetic resonance organ, magnetic boards, disk, alveolate ceramic, plaster products; and for drying printing and dyeing products, ceramics, glass, chemical fiber, cotton yarn, wood, leather, bamboo products, insulation materials, building materials, wood , cork, alveolate, cardboard,corrugated cardboard, and so on.



3,THE PRINCIPLE OF MICROWAVE DRYER



Microwave is a sort of electromagnetic wave which frequency is 300MHz to 300GHz .The water molecule in medium materials is polar molecule,under the effect of the rapid change of electromagnetic field,its polarity orientation will alter with the changes of the external electric field with the high-speed,causing the movement and friction of that the microwave field energy can be converted to heat energy in medium to rise the temperature of materials.accomplishing heating ,puffing and a series of physical and chemical processes ,and so ,microwave heating is achieved



4,The principle of microwave sterilizing

Microwave sterilizing is the result of combined action of the thermal effect of electromagnetic fields and the biological effect.Thermal effect of microwave on the bacteria denatures the protein of bacteria ,and make the bacteria lost the condition of nutrition,reproduction and survival so as to die .The biological effects of microwave on the bacteria is that the microwave electric field changes the potential distribution of cross-section of the bacterial cell membrane and impacts the concentration  of electron and ion around the membrane ,and changes the permeability of cell membranes ,therefore the bacterium become innutrient and lost normal metabolism.The structure and function of bacterium fall into disorder ,and theirs growth are inhibited ,as a result they are dead.Moreover ,nucleic acid genetic(RNA) and deoxyribose acid (DNA),which decide the normal growth and stability of bacterial,are curly-shaped macromolecule made of a number of linked compactly hydrogen bond .The microwave can be strong enough to make hydrogen bond stack ,rupture and recombine ,and induce intragenic mutation or chromosome aberration and even rupture.

5,MAIN MARKET

Main Markets:	North America South America Eastern Europe Southeast Asia Africa Oceania Mid East Eastern Asia Western Europe Central America Northern Europe Southern Europe South Asia







 6, Used area





Foodstuff



1. microwave desinsection mold-free dryer
2. Microwave fruit pieces puffing dryer
3. Microwave fast box lunch freshness-keeping dryer
4. microwave dry and sterilization machine for condiment
5. microwave dry and sterilization machine for preserved fruit and glazed fruit
6. microwave sterilization machine for konjaku flour
7. microwave sterilization machine for bagged food
8. microwave dry and sterilization machine for mushroom and edible fungus
9. microwave dryer for yellow mealworm and maggots
10. microwave dry and sterilization machine for nuts
11. microwave dryer with green-removing for honeysuckle and tea
12. microwave dry and sterilization machine for jerky
13. microwave dry and sterilization machine for essence of meat
14. microwave dry and sterilization machine for native produce
15. microwave dry and sterilization for breadcrumbs







Chemicals



1. microwave dryer for copper oxide
2. microwave dryer for nickel hydroxide
3. microwave dryer for silica gel
4. microwave dryer for natural rubber mattress and pillow
5. microwave dryer for chrome green
6. microwave dryer for manganese chloride







Paper products



1. microwave dryer for cardboard
2. microwave dryer for paper tube
3. microwave dryer for paper
4. microwave dryer for paper products







Others



1. microwave dryer for textile products
2. microwave dryer for wood
3. microwave dryer for bamboo products
4. microwave dry and sterilization for Chinese medicine decoction pieces
5. microwave dry and sterilization machine for Chinese herbal medicine
6. microwave dry and sterilization machine for Chinese medicine



7, THE MOST SECRET PARAMETER OF THE MICROWAVE EQUIPMENT NOLY FOR YOU

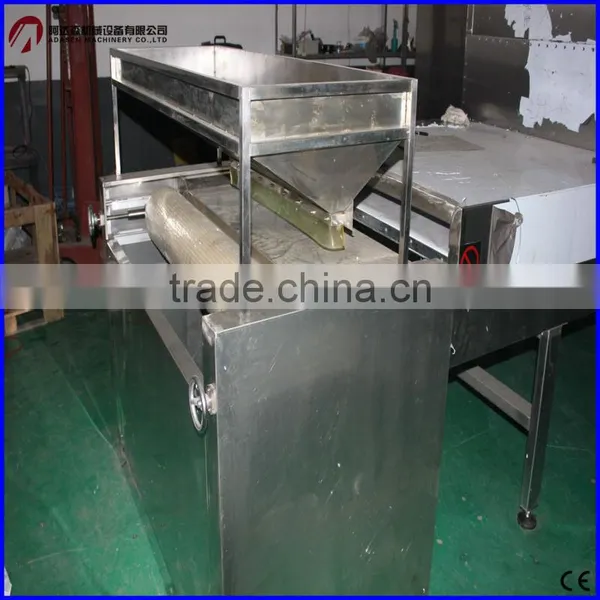

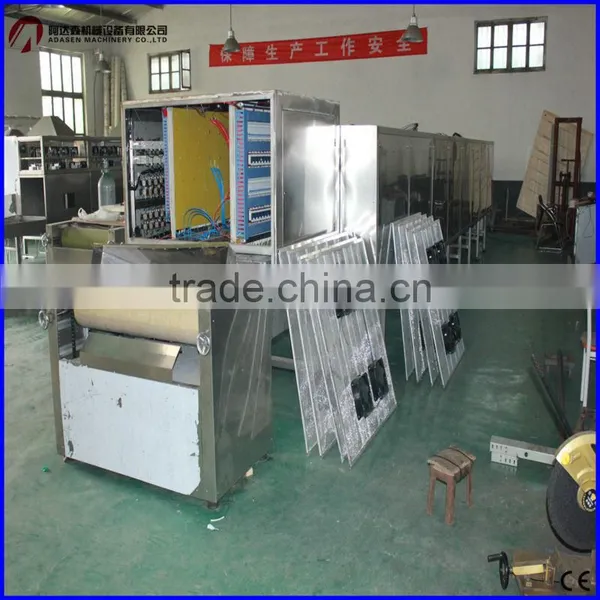

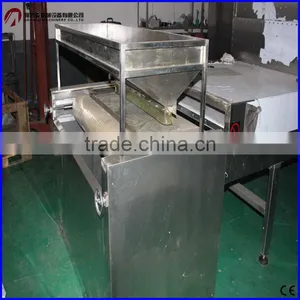

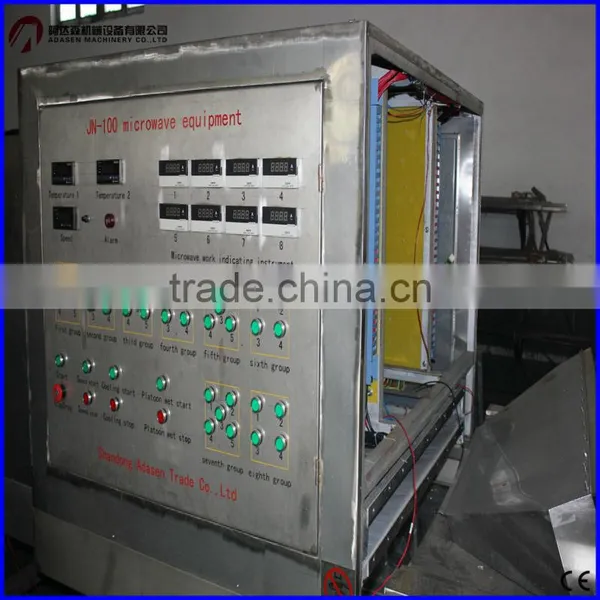

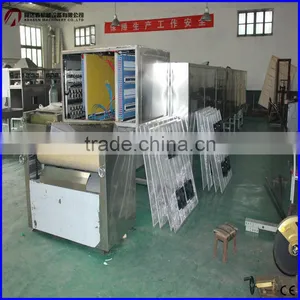

8,Reference pictures:





   The machine can be designed according to your requirement ,please feel free to contact me for more details.
