Industrial Continuous Conveyor Belt Type Microwave Medical Herb drying Machine
1.save energy/efficient
2.high quality CE
3.easy to control
1.Application:
This machine fits for drying and sterilizing powder ,granular, sheet-like or gel-like food ,and additive, flavoring, medicine, raw material of herbal medicine, nutritional health products, agriculture & sideline products, non-fried(or oil-saving)instant noodles, noodles, rice powder noodles, soy products, beef jerky, preserved meat, dried fish ,tea, tobacco and so on; and for drying, peeling and baking almond, peach kernel, groundnut kernels, chestnut and so on; and for puffing of leisure food ,pachyrhizus chips, potato chips, dried shrimps, fish maw and so on; and for sterilizing and oral liquor, pickles, a variety of small packaging food ;and for drying beans; and for thawing the frozen fish ,poultry; and for drying and desulfurating and deoxidizing the metallurgical chemical products; and for drying printing and dyeing products, ceramics, glass, chemical fiber, cotton yarn, wood, leather, bamboo products, insulation materials, building materials, cork, alveolate cardboard, corrugated ,and so on.
2.Introduction:
I. Introduction to the equipment
It adopts the technology of radiation with several microwave sources and it is equipped with imported temperature controller, The heat is distributed evenly. It is installed suppresser against the microwave leakage at the heater's inlet and outlet for the materials. Its leakage index has met America UL standard, we can assure it is absolutely safe. During the course of roasting, the dried beef on the trays can rotate at stepless speed that is convenient for the adjustment of various technologies.
II. The features of drying and sterilizing
High efficiency, energy saving, evenly heating. Microwave has excellent penetrability, It can penetrate into the inside of the dried beef, heating it inside and outside at the same time, besides, only the dried beef which is heated can absorb the microwave energy. Therefore, it has high thermal efficiency and the heat is homogeneously distributed that diminish the loss of heat energy. Compared with general electrothermal drying method, 1/3 to 1/2 of electricity can be saved.
III. other application field
Microwave energy technology is able to successfully dry and sterilize the dried beef as well as the dried pork, chicken. It also can be used to ripe and sterilize the pastry, bake the melon seeds, process the bean flour and other foodstuff.
3.Reference technical parameters:
Power supply |
380V±10% 50HZ±1% three-phase five-wire |
Microwave Output Frequency |
2450±50MHz |
Microwave input apparent power |
≤56KVA |
Microwave output power |
≥40KW |
Microwave power adjustment range |
0-40KW(adjustable) |
Ambient temperature |
-5-40°C |
Relative humidity |
≤80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas |
Overall dimension(L*W*H) |
about10680*1440*1750 mm |
Transmission speed |
0-10m/min(adjustable) |
Height of the inlet and outlet |
60 mm |
Microwave leak |
accord with a country GB10436-89 standards(<5 mw/cm^2) |
Equipment safety |
accord with GB-5226Electrical safety standard accord with a country GB16798-1997 Food machinery |

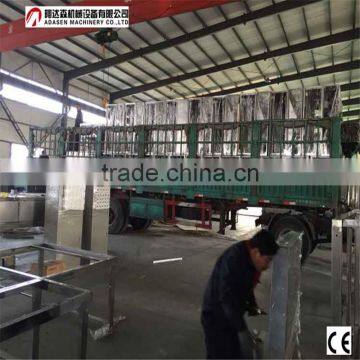

5.Reference pictures:
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Microwave Dryer Machine
