Specifications
1. tunnel continuous belt type,dry continuously2. fast drying,3~5 minutes
3. keep color and ingredient
4. SS304 material,CE
Industrial Tunnel Continuous Conveyor Belt Type Microwave Herb Drying Machine features:
1).Application:
This machine fits for drying and sterilizing powder ,granular, sheet-like or gel-like food ,and additive, flavoring, medicine, raw material of herbal medicine, nutritional health products, agriculture & sideline products, non-fried(or oil-saving)instant noodles, noodles, rice powder noodles, soy products, beef jerky, preserved meat, dried fish ,tea, tobacco and so on; and for drying, peeling and baking almond, peach kernel, groundnut kernels, chestnut and so on; and for puffing of leisure food ,pachyrhizus chips, potato chips, dried shrimps, fish maw and so on; and for sterilizing and oral liquor, pickles, a variety of small packaging food ;and for drying beans; and for thawing the frozen fish ,poultry; and for drying and desulfurating and deoxidizing the metallurgical chemical products; and for drying printing and dyeing products, ceramics, glass, chemical fiber, cotton yarn, wood, leather, bamboo products, insulation materials, building materials, cork, alveolate cardboard, corrugated ,and so on.
2).Features:
Microwave drying sterilization drying time is short, strong fragrance products, uniform, bright color; has expanded by microwave drying effect on the subsequent smash much help. Microwave is a direct function of the materials were, without intermediate conversion of other links which no additional heat loss, and the corresponding air furnace will not heat the container, so the high thermal efficiency, the production environment is significantly improved compared with the far-infrared heat Can save more than 30%.
Easy to control, advanced technology. Compared with the conventional method, which means that the use of equipment; no thermal inertia, operational flexibility; microwave power adjustable, the transmission speed is adjustable.
In the microwave heating and drying, sterilization, no waste water, no gas and other produce, is a safe and sound tech. Improve product quality, economic benefits. The working environment and equipment, low temperature, noise, greatly improved the working conditions, but also saves floor space, and easy removal. Low-temperature sterilization to maintain nutrition and traditional flavor. Microwave sterilization is through to be special and nonthermal effects of heat sterilization, compared with the conventional heat sterilization can be at a relatively low temperature and shorter time to obtain the necessary disinfection and sterilization effect.
Practice shows that the sterilization temperature is generally 75 ~ 80 °C will be able to achieve the desired effect, in addition, microwave processing of food to retain more nutrients and color, smell, taste, shape and other flavors, and there is puffed effect. Such as conventional thermal processing of vegetables to retain the vitamin C is 46% to 50%, while the microwave treatment is 60% to 90%; conventional heating liver vitamin A retention was 58%, while the microwave heating is 84%.
3).reference technical parameters:
Power supply |
380V±10% 50HZ±1% three-phase five-wire |
Microwave Output Frequency |
2450±50MHz |
Microwave input apparent power |
≤42KVA |
Microwave output power |
≥30KW |
Microwave power adjustment range |
0-30KW(adjustable) |
Ambient temperature |
-5-40°C |
Relative humidity |
≤80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas |
Overall dimension(L*W*H) |
10500*850*2050 mm(can design according to your requirements) |
Transmission speed |
0-10m/min(adjustable) |
Height of the inlet and outlet |
60 mm |
Microwave leak |
accord with a country GB10436-89 standards(<5 mw/cm^2) |
Equipment safety |
accord with GB-5226Electrical safety standard accord with a country GB16798-1997 Food machinery health security index |

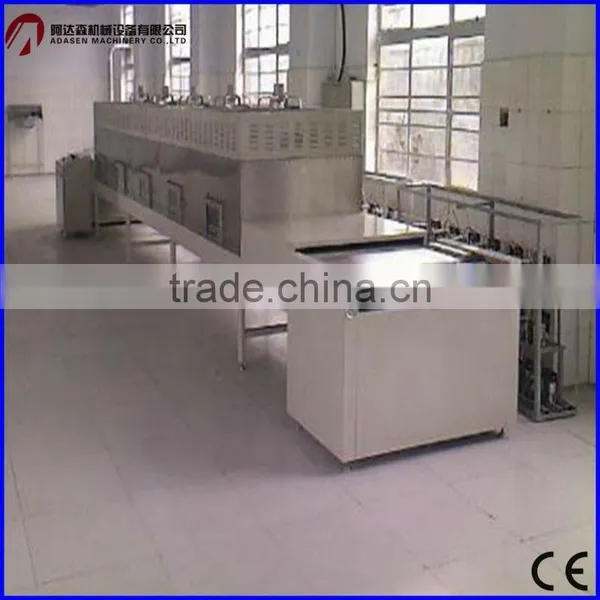

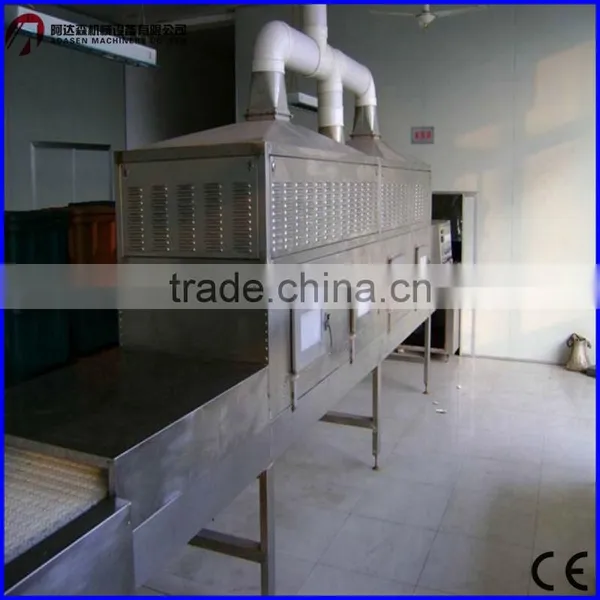

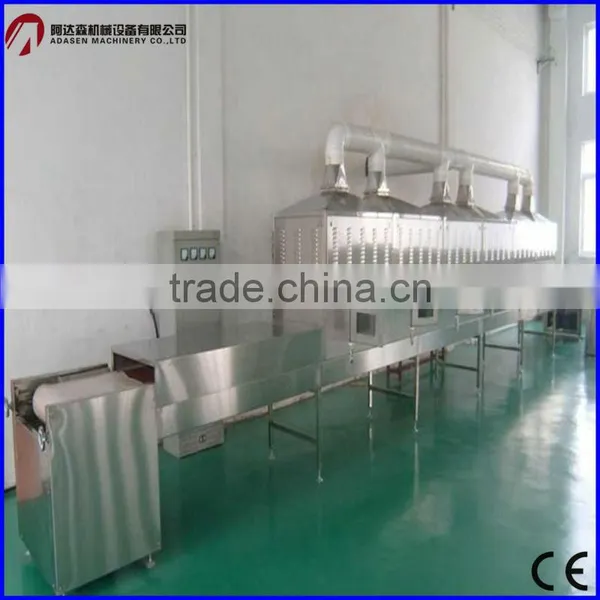

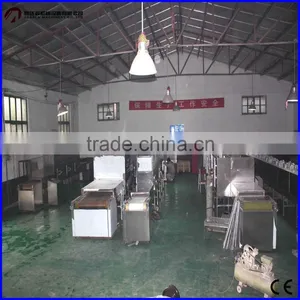

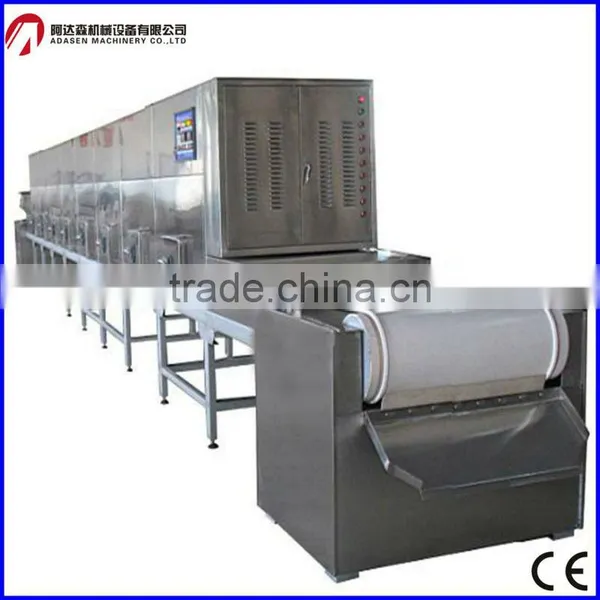

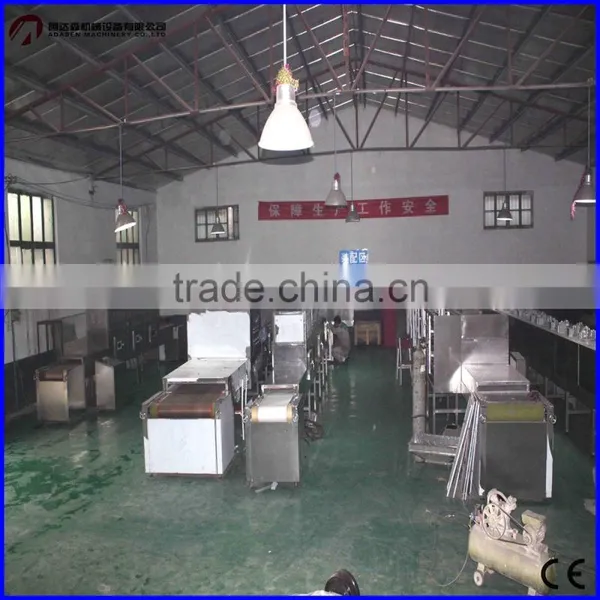

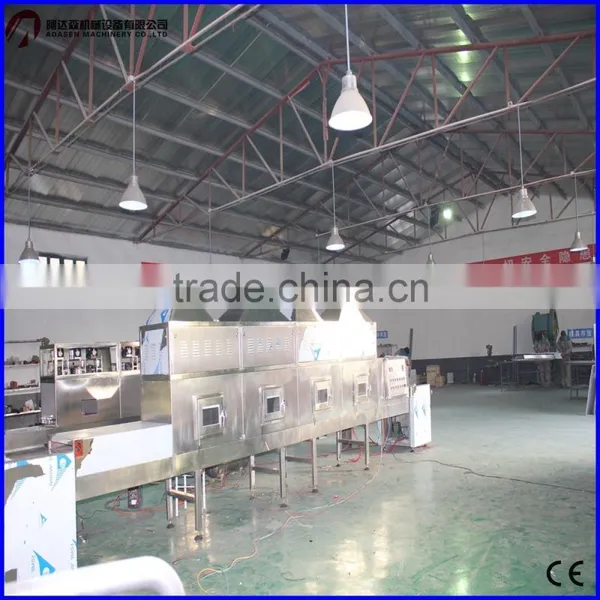

4) Reference Picturees:
Packing Pictures :
Shipping : For deliverying JN-30, need to use 1*20ft container.
Why use tunnel microwave dryer, not choose hot air dryer ?
Microwave drying is the use of microwave dielectric loss principle , its heating is that internal heating and external heating is at the same time,the heating speed is fast and uniform heating.
Microwave is tunnel conveyor belt type, dry continuously. During drying process, microwave also have sterilization function.
Hot air circulation drying is using heat to heat gradually from external to internal and achieve drying propose , drying fast is slow .After drying, the dired products color will have some changes.
Select which kind drying method,it is according to the product specific situation and your estimated budget .
What's your warranty for this microwave herb dryer ?
while deliverying machine,we will provide 2 sets spare parts freely. For the whole equipment,warranty is 12 months,within 12 months,if have equipment quality problems,we will provide accessories freely. After the expiration of the warranty period,if have spare parts problem,we only receive the cost of required replacement parts.We commit we will provide free technical support of equipment all whole life.
Mob: +86 15275122103 ; +86 18668965557
Please contact me to talk more details!
