304#stainless steel automatic microwave red jujube drying and sterilizing machine
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | adasen |
Model Number: | JN-30 | Type: | Dryer | Voltage: | 380V |
Power(W): | 30KW | Weight: | 3000KG | Dimension(L*W*H): | 12940*1440*1750mm |
Certification: | CE certificate | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
304#stainless steel automatic microwave red jujube drying and sterilizing machine
The principle of microwave drying
Microwave is a sort of electromagnetic wave which frequency is 300MHz to 300GHz .The water molecule in medium materials is polar molecule,under the effect of the rapid change of electromagnetic field,its polarity orientation will alter with the changes of the external electric field with the high-speed,causing the movement and friction of that the microwave field energy can be converted to heat energy in mudium to rise the temperature of materials.accomplishing heating ,puffing and a series of physical and chemical processes ,and so ,mircrowave heating is achieved.
The principle of microwave sterilizing
Mircowave sterilizing is the result of combined action of the thermal effect of eletromgnetic fields and the biological effect.Thermal effect of microwave on the bacteria denatures the protein of bacteria ,and make the bacteria lost the condition of nutrition,reproduction and survival so as to die .The biological effects of microwave on the bacteria is that the microwave electric field changes the potential distribution of cross-section of the bacterial cell membrane and impacts the concentration of electron and lon around the membrane ,and changes the permeability of cell membranes ,therefore the bacterium become innutrient and lost normal metabolism.The structure and function of bacterium fall into disorder ,and theirs growth are inhibited ,as a result they are dead.Moreover ,nucleic acid genetic(RNA) and deoxyribose acid (DNA),which decide the normal growth and stability of bacterial,are curly-shaped macromolecule made of a number of linked compactly hydrongen bond .The microwave can be strong enough to make hydrogen bond stack ,rupture and recombine ,and induce intragenic mutation or chromosome aberration and even rupture.
Main Parameters
Power supply | 380V±10% 50HZ±1% three-phase five-wire |
Microwave Output Frequency | 2450±50MHz |
Microwave input apparent power | 42KVA |
Microwave output power | 30KW |
Microwave power adjustment range | 0-60KW(adjustable) |
Ambient temperature | -5-40°C |
Relative humidity | 80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas |
Overall dimension(L*W*H) | 12940*1440*1750 mm |
Transmission speed | 0-10m/min(adjustable) |
Height of the inlet and outlet | 60 mm |
Microwave leak | accord with a country GB10436-89 standards(<5 mw/cm^2) |
Equipment safety | accord with GB-5226Electrical safety standard accord with a country GB16798-1997 Food machinery health security index |

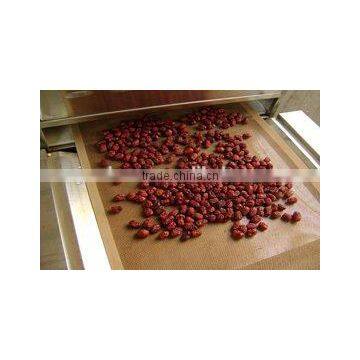

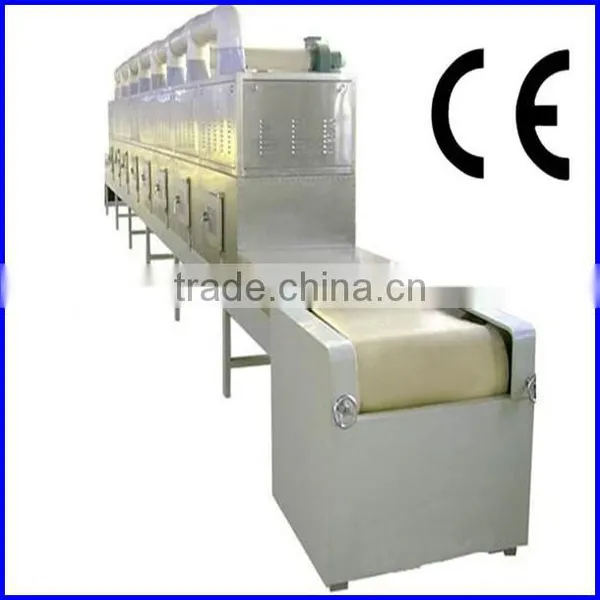

Reference of Picture
Packing and Shipping
1. Delivery Term:FOB/CFR/CIF
2. Delivery time:20 work days after having received payment
3. Package:wooden cases(fully meets with export package requirements)
4. Payment Terms:50% deposit by T/T,balance 50% paid by T/T before shipment.
5.Transportion:By vessel
NOTE:We can specially design the machine according to your production's features.
