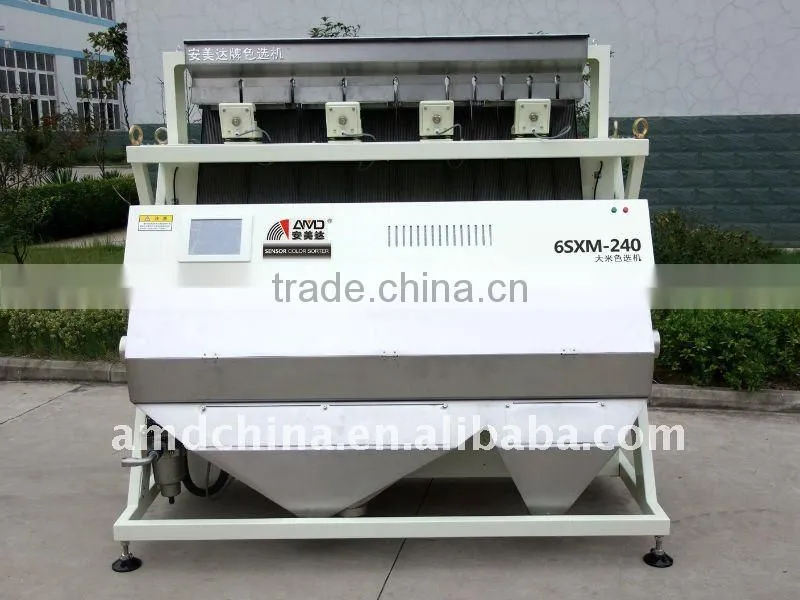

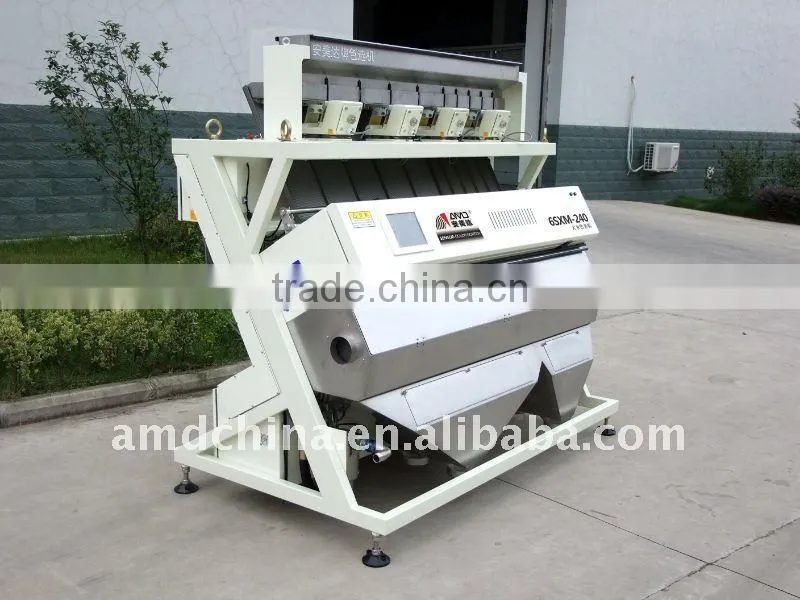

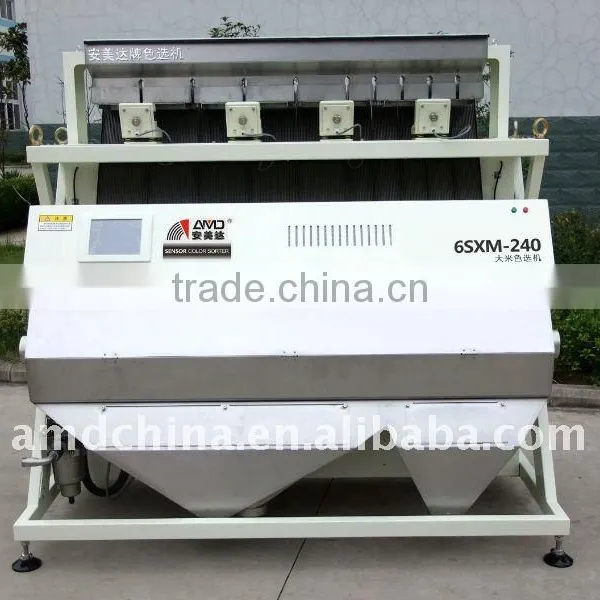

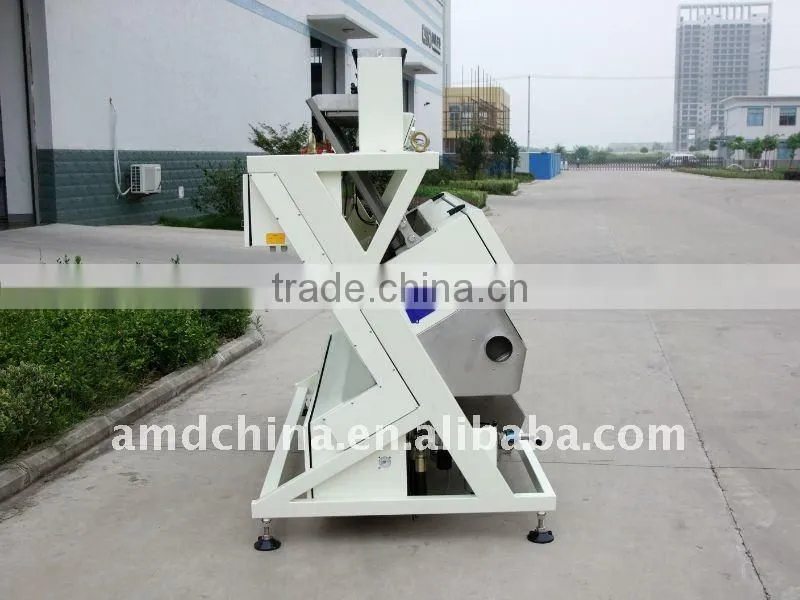

grain optic-electronic color sorter

Specifications

1.240 channels and large capacity.
2.3 sorting models.
3.high sense of recognization and separation

1. Adopt PHOTO-SENSOR double-side color sorting technology; the specialized image acquisition and processing system computers and processes the spectral parameter and the feature of the image in high speed; adopt bus structure, with higher signal consistency and capability of resisting disturbance, better stability, and simpler structure;
2. Adopt mainstream high-density high-capacity scene programmable logic device, with higher integration level, more easier upgrading of software and hardware; flexible sorting modes setting available for different raw materials to meet the demands of sorting discolor, discolor reverse, milky, milky reverse, milky & yellow; accurately distinguish tiny rice macula and light yellow color shading;
3. Adopt real color 8.4 display; equipped with high-reliability four-wire resistance touch screen; correct location of touch screen at any time; user-friendly operation interface; simple and easy to operate;
4. Perfect self-inspection function realizes real-time tracking and malfunction indication of spray valve system, working pressure, constant temperature system and illumination system.
Notes: The color sorting performance parameter in the above table takes Standard Grade 1 Japonica Rice (cereal content: 2%) as example. The specific parameter may be different according to different materials and cereal contents.

Machine Type AMD-SS-160Z AMD-SS-240Z AMD-SS-320Z Model 6SXM-160 6SXM-240 6SXM-320 Throughput(T/h) 4.5±40% 6±40% 8.5±40% Sorting Accuracy(%) >99.99 >99.99 >99.99 Re-sorting Optimized Carryover(bad:good) >8:1 >8:1 >8:1 Voltage AC220V 50HZ AC220V 50HZ AC220V 50HZ Power (kw) 0.8-1.8 1.2-2.5 1.5-3.0 Air Pressure (Mpa) ≥0.6 ≥0.6 ≥0.6 Air Consumption(H/min) 800-1800 1200-2800 1500-3000 Weight(kg) 850 950 1000 Overall Dimension(mm) Long * Width * Height 1346×1010×1890 2066×1010×1890 2066×1010×1890
