Tea CCD color sorter T3S6
The best performance and the highest capacity can be guaranteed in Super-intelligent T3S6(1152) Tea Color sorter, designed to improve the sorting accuracy of tips, golden tips tea and production volume, Super-intelligent T3S6(1152) has NEW LED to recognize the delicate difference between TIPs and bad material.
Technical parameters
Machine Type |
T3S6 |
Model |
6CSX-384 |
Sorting Channels |
|
Output (kg/h) |
<800 |
Sorting Accuracy (%)) |
>99 |
Re-sorting Optimized Carryover(bad:good) |
>5:1 |
Voltage |
380V 50HZ |
Power(kw) |
4.5 |
Air Pressure(Mpa) |
0.6-0.8 |
Air Consumption(L/min) |
<5400 |
Weight(kg) |
2600 |
|
Overall Dimension(mm) Long * Width * Height |
2676×2063×3185 |
Notes: The above parameters to contain mixed 3% green tea as an example,the output will be based on the raw material with different rate;at the same time,the main external voltage of AC380/50HZ(three-phase five wire).
Technical characteristics
- the intergration of the electromechanical design.
- utilization of air cooling system.
- the original material distributing system.
- independent sorting mode.
- unique design of broadening sorting chamber.
- spray nozzle
- image acquisition system
- lignt source
- three layer integrated structure design
- cloud object link system
Packaging & Shipping
Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine during unloading and installation.
Plywood case
Our Services
- With presence in a variety of countries, AMD is strongly committed to being close to the customer.
- Through cooperation with loyal and carefully evaluated and trained local employees and partners, AMD managed to provide fast, competent and rooted services in the context of customers.
- Application center in HEFEI production base offer demo machines for tests and comparison.
- A strong central technical team in Hefei is supporting local channels with training, advice and technical support.
- Under normal working circumstances, AMD machines enjoy 1 year of full warranty (except for consumable parts) and a lifelong warranty on the machine structure upon the date of purchase.
- Service line is available for emergency support.
- AMD products will be serviced and supported wherever customers are located.
- Through the global AMD network and from AMD technical experts, training on AMD machines is available worldwide.
Company Information
Anhui Zhongke Optic-electronic Color Sorter Machinery Co. Ltd is an high-tech enterprise specialized in the R&D, production, and sales of color sorting equipment for foodstuff.

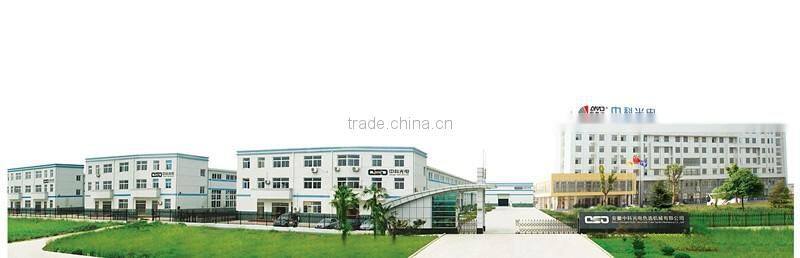

Established in 2000, AMD is a pioneer who applies the innovation in optical, mechanic and electric field to industrial production. Located in the Shuangfeng Economic Development Zone, the company covers an area of 53,000 square meters with staff over 200 and totals investment 5 million USD. The company has established R&D center consisted of a gallery of experts and professionals in this field focusing on the frontier of technology innovation. We have employed a number of state of art equipment like printed circuit board machine, laser cutter and CNC center to ensure the high quality of our products.
It is a combination of technology, good quality and high social responsibility that lead our company into rapid development. Because of its brilliant performance in production and management, AMD has got many certificates like ISO9001 Quality Management System, CE certificate, ISO14001Environment Management System and GB/T28001Occupation Management System etc. The company was certified as high-tech company in 2007. Besides for sorting rice(our main application), our machines can also find very good applications in peanuts, soybeans, sesame sorting and a wide range of other products. Currently our brand new CCD type machines are available to satisfy our customers specific sorting needs.
The company has a fair market share domestically (up to 30%) and has been exporting its machines to several countries like the United States, Brazil and Philippines etc.
We believe in the high quality and the positive responses from our customers and stand ready to the good cooperation from home and abroad based on mutual trust and benefits.
