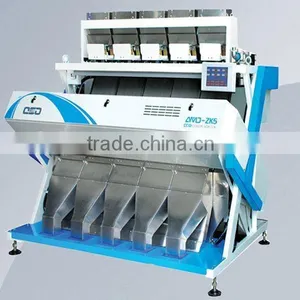

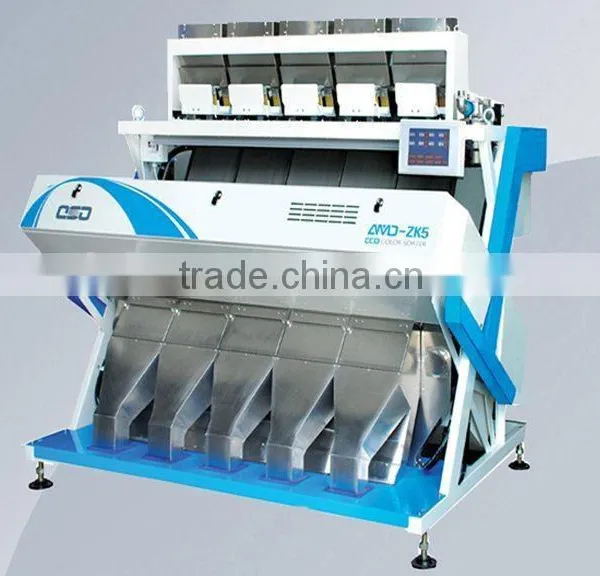

Help CenterRice/millet CCD Color Sorter
Related Products
-
Professinal Rice/grains Color SorterUS$ 10,000 - 80,000MOQ: 1 Set -
CCD Color Sorter for All Kinds of RiceUS$ 10,000 - 80,000MOQ: 1 Set
-
Black Rice Processing MachineUS$ 10,000 - 80,000MOQ: 1 Set
-
CCD Grains/ Rice Color SorterUS$ 10,000 - 80,000MOQ: 1 Set
-
Rice Color Sorting MachineryUS$ 10,000 - 80,000MOQ: 1 Set
Specifications
1.2048 pixel CCD and photo processing technology2.Detecting area 0.08 square milimeter
3.Raising products Quality
4.ISOCE
CCD rice color sorter:
1. Applying 2048 pixel high-speed line scan CCD and photo processing technology can process photo parameters ever faster.
2. Field bus structure making sure high consistency of signal, stability and simplified outline.
3. Capable of detecting minimum area 0.08mm², and by analyzing finest color difference making perfect sorting possible.
4. Both flat and groove type are available, making it much easier for between cereal and larger articles sorting.
Model |
CCD Rice Series |
|||
AMD-ZK3 |
AMD-ZK4 |
AMD-ZK5 |
||
No. of Channels |
192 (128/64)* |
256 (192/64)* |
320 (256/64)* |
|
Output (t/h) |
4-8 |
6-12 |
7.5-15 |
|
Sorting Accuracy (%) |
>99.99 |
>99.99 |
>99.99 |
|
Optimal Carryover (bad: good) |
≥8:1 |
≥8:1 |
≥8:1 |
|
Voltage |
AC220V 50HZ |
|||
Power (KW) |
1.0-2.7 |
1.2-3 |
1.5-3.5 |
|
Air Pressure (Mpa) |
≥0.6 |
|||
Air consumption (L/min) |
1000-1800 |
1200-2500 |
1500-3000 |
|
Weight (Kg) |
635 |
750 |
950 |
|
|
Dimensions (mm) |
Length |
1506 |
1808 |
2110 |
Width |
1550 |
1550 |
1550 |
|
Height |
1840 |
1840 |
1840 |
|
|
Note: Color selection parameter in fixing a watch takes being labeled with one hard rice as example without exception. TheConcrete index will be different to some extent because contents different. | ||||
