220v-380v hydraulic cylinder for press on sale
- 1 Unit / Units per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | CNC | Power Source: | Hydraulic |
Place of Origin: | Jiangsu, China | Brand Name: | DL | Model Number: | horizotal motor |
Voltage: | 220v-380v | Power(W): | 4000W | Weight: | 2200Kg,2800Kg |
Dimension(L*W*H): | 2200*540*1100,2500*650*1200 | Certification: | 3A&ISO9001 | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

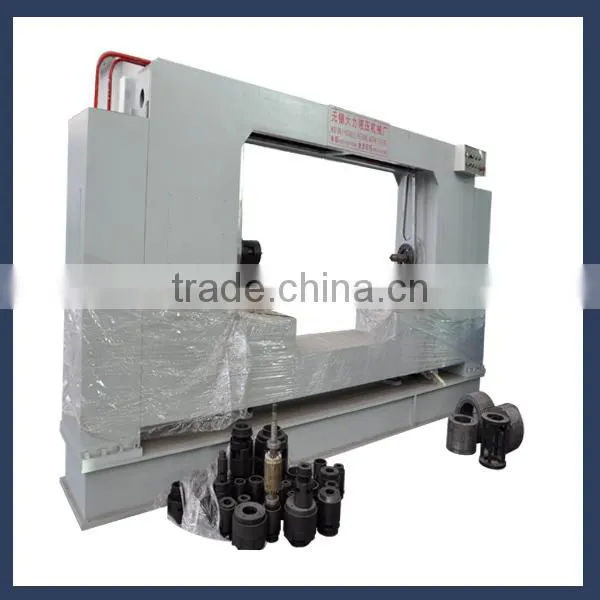

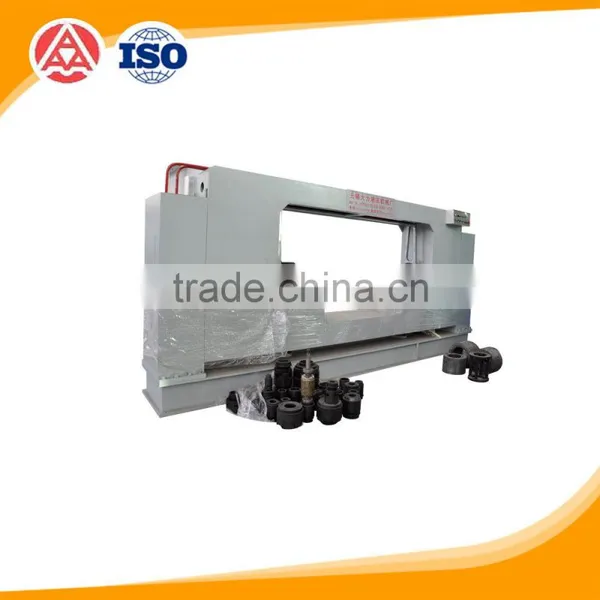

220v-380v hydraulic cylinder for press on sale
Product characteristic
1.Robotic arm to full automation
2.End cap card quick fixture of self-made quick reactions.
3.Assembly a motor, motor replacement die tooling around 25 seconds to 18 seconds.
4.The electrical box the master element adopts Japan Mitsubishi PLC programmable logic controller.
5.Selection of hydraulic station stack of valves and solenoid valves control,automatic variable
displacement piston pump and series motor.
6.The characteristics of the equipment:the machine overall height lifting adapted to different motor.
Simple application, belong to the factory’s patented technology.
7.This device by 16mm steel plates welded together,vibration,or tempering microstructure after CNC
bore milling machine tool cutting machining becomes.
8.End caps and mounting the unit is a box-shaped whole machine working table up and down relies on
lift bed of hydraulic cylinders or screw up and down, thus fulfilling the press a smooth lifting motion.
9.The compressing cylinder of the machine tool is a composite cylinder by the piston rod.
Retractable top, spring top.
10.Performance:press-fit cover .Installing positioner can be mounted motor bearings. Mounting
a motor and cap (bearing) motor time is 60 seconds, replacing the positioner takes 5 seconds,
adjust the machine for 15 seconds.
Specification
Rated Pressure | KN | 50 | 63 |
Maximum Pressure Of Liquid | Mpa | 6 | 4 |
Working Mode |
| Semi-Automatic | Semi-Automatic |
Master Cylinder Stroke | Mm | 350 | 350 |
Ejector Cylinder Stroke | Mm | 120 | 120 |
Max Distance Between The two Thimble | Mm | 950 | 1200 |
Min Distance Between The Two Thimble | Mm | 250 | 500 |
The Velocity Of TwoThimble Together Working | Mm /s | 25 | 27 |
The Velocity of Two Thimble Together Return | Mm /s | 40 | 40 |
Size Of The Machine Tool(L*W*H) | Mm | 2200*540*ll00 | 2500*650*1200 |
High Of The WorkingPlatform | Mm | 750 | 750 |
Main Motor Power | KW | 4 | 4 |
Total Weight | Kg | 2200 | 2800 |

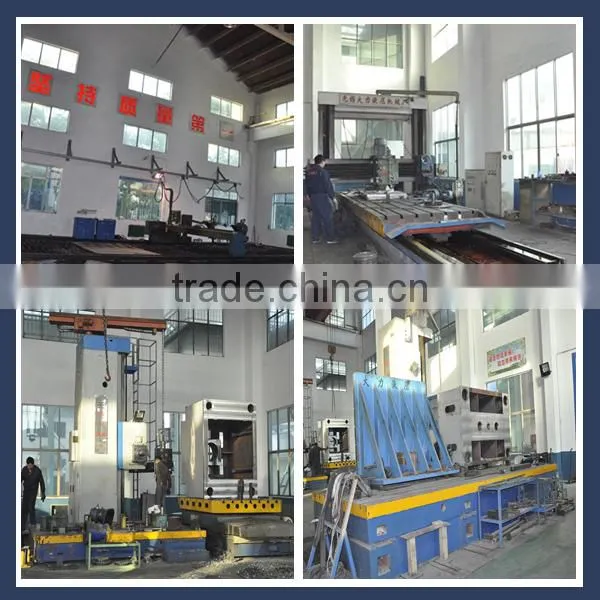

Large scale production machinery of our factory
Wuxi Dali Hydraulic Pressure Machine Factory is national 9.6 million square kilometers famous of
excellent enterprise, is set to design, and development, and production, and sales for
one of hydraulic machinery professional production enterprise, main products has in the,
and large four column and framework hydraulic machine, and single hydraulic machine,
and hydraulic school straight machine,and motor dedicated pressure installed,
and plate school flat hydraulic machine,and pressure sensing hydraulic machine,
and non-marked hydraulic machine.
Our factory specialized in producing all kinds of hydraulic machine has more than 20 years,
covers an area of 27 acres, the annual output value of more than 60 million. Export of France,
Russia, Japan and other counrties and regions. With many of the world’s top 500 foreign-funded
enterprises in China: ABB in Shanghai, Siemens, General Motors, Volkwagen has a partnership.
Stable units of production, personnel and good collaboration. Stable design, production and
excellent after-sales service team.

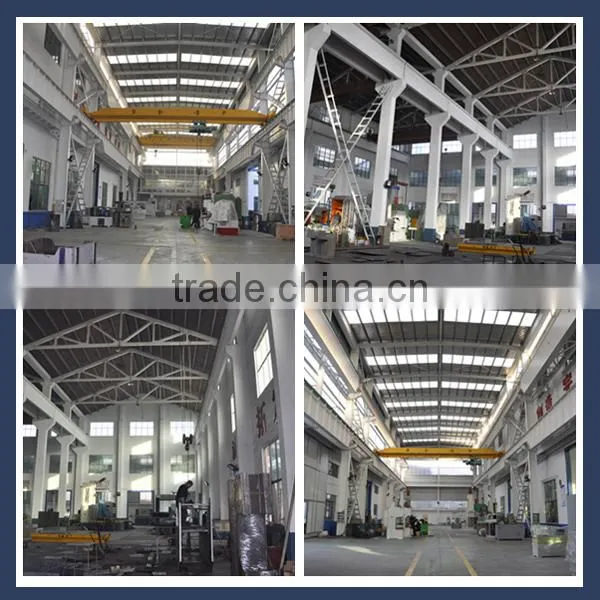

General map of factory
Package: Plastic bags, bubble bags and some cushion packaging with iron pallet
Shipping: one month for standard equipmen
2-3 months for non-standard equipment
Q1.Do you have experience to export to oversea?which countries did you export before?
A:Dear manager,we have lots of experiences to export to many countries before,eg. France ,Poland, Italy ,Spain,Dubai , Iran, Australia, Bangladesh, Thailand, India, Russia and so on.
Q2:How we do quick response to customer inquiry?
A2:Professional lines,widely supplier sourcing and we will try our best to reply you at first time!
Q3:Do you have any certificates?
A3:Yes,we have AAA,ISO9001 and other cetificates,which can support to ship to your place safely.
Q4:Will you send to us if we need in hurry?
A4:Yes,sure,we have reliable supplying system for long time!
