Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > Top Quality Column Hydraulic Press Machine With Best Services on Sale

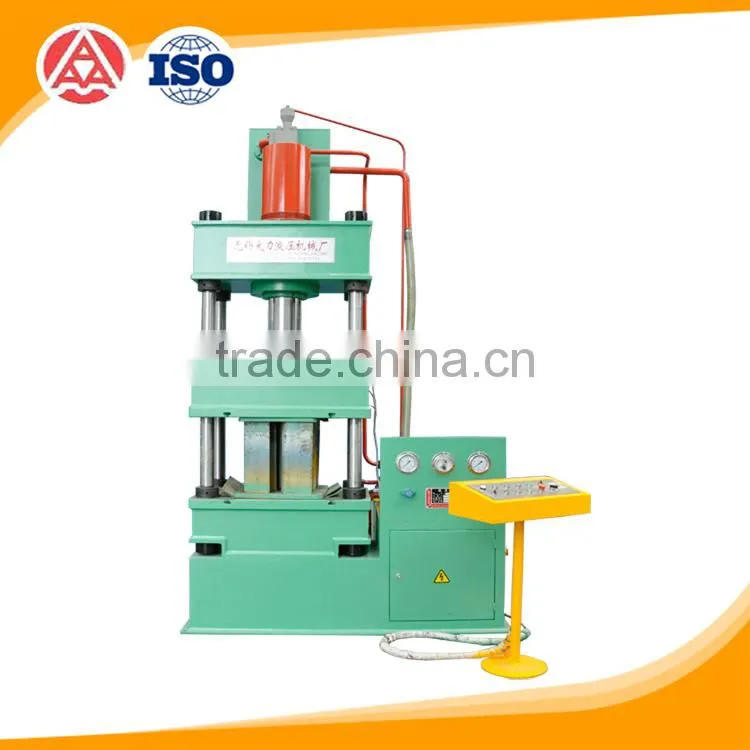

Top Quality Column Hydraulic Press Machine With Best Services on Sale

US$ 2,000 - 60,000 MOQ: 10 Units

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Power Source:

Hydraulic

Contact Supplier Request Quote Chat Now

Wuxi Chiyang International Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Power Source Hydraulic

Place of Origin Jiangsu, China

Brand Name DL

Model Number Y32

Voltage 220v-380v

Power(W) 7500W-160000W

Weight 100T-1500T

Dimension(L*W*H) 1000*850*600-3000*1000*1500

Certification 3A&ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Feature:

This type for cai interior industry design,suitable for inner decoration products,the pressure molding,

trimming,fell material.The machine adopts importedPLCmitsubishi,omron,siemens control,aided by the slider

stroke measurement of linear displacement transducer,pressure sensors,etc, through the industrial TOUC,

SCREEN DISPLAY, SET the slider travel speed,pressure and comprehensive time and so on paramaters.

The hydraulic control adopts advanced cartridge valve integrated system, traffic flow,operation stability decide,

also has the pressure overload protection function, the slider cap a safety pin structure,work with the judgment

seat charging protection device.ensure operation, changing mould,maintenance of the person of when safety,

complete car inner decoration automatic pressure molding.

Specification:

Type		Unit	45T	63T	100T	160T	200T	315T	400T	500T	630T	800T	1000T
Rated pressure		KN	450	630	1000	1600	2000	3150	4000	5000	6300	8000	10000
Lift Out Force		KN	63	100	200	250	400	630	630	1000	1250	1800	1600
Maximum pressure of Liquid		MPa	25	24.3	25.8	25.5	24.4	24.6	24.7	25	25	24.4	25.5
Max Stroke Of Slide		mm	350	500	500	500	700	800	800	900	900	1000	1000
Maximum opening Height		mm	600	700	900	900	1120	1250	1400	1500	1500	1800	1800
Size Of Table	F-B	mm	400	50	580	800	900	1260	1200	1400	1600	2400	2500
Size Of Table	L-R	mm	4oo	500	710	800	900	1260	1260	1400	1600	1600	1800
Ejector cylinder stroke		mm	120	160	200	200	250	300	300	300	400	400	400
The Working Velocity of The Slipper	Descent	Mm/S	40	50	100	100	100	100	100	100	>100	120	120
	working	mm/S			8-15	8-15	8-15	8-15	8-15	10	12	5-12	5-12
	Return	mm/S	60	60	60	60	70	70	70	80	65	80	90
Size of the Machine Tool	F-B	mm	1380	780	1800	1000	1200	1500	1560	4100	4390	4300	4700
	L-R	mm	100	500	1020	800	900	1200	1200	2420	2520	2500	2600
	Above Ground	mm	2360	2430	3500	3350	3690	3900	4050	538	6000	6100	6200
Main Motor Power		KW	4	5.5	5.5	11	11	18.5	22	37	55	75	75
Total Weight(approve)		T	2.8	3 .5	5	8 .5	10	15	22	30

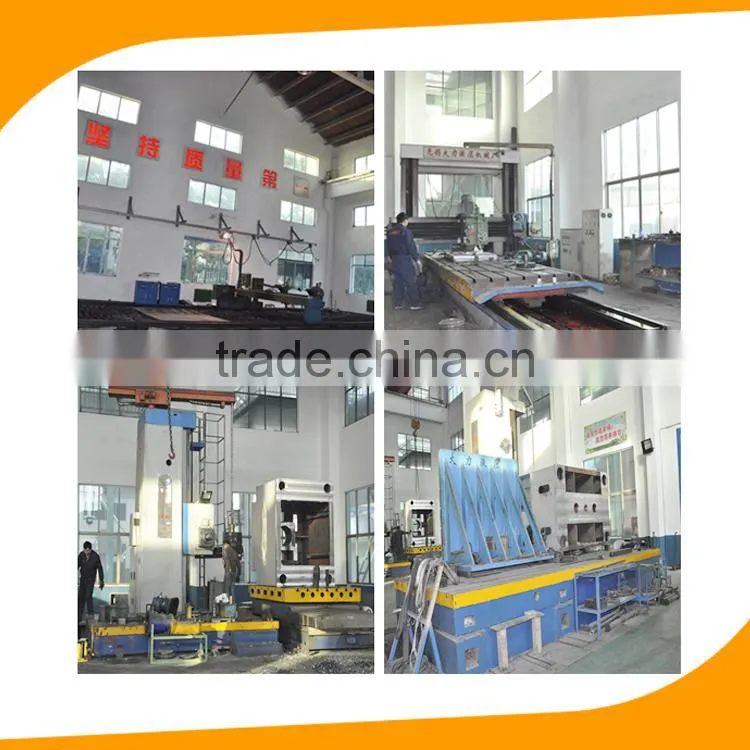

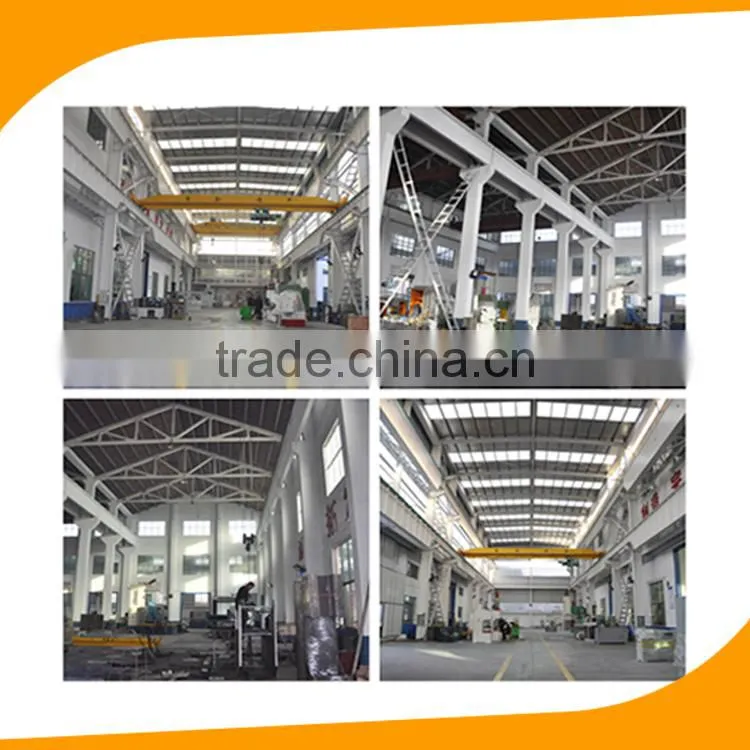

Our Machinery:

Company Information:

Wuxi Dali Hydraulic Pressure Machine Factory is national 9.6 million square kilometers famous of excellent

enterprise, is set to design, and development, and production, and sales for one of hydraulic

machinery professional production enterprise, main products has in the,and large four column
and framework hydraulic machine, and single hydraulic machine,and hydraulic school straight machine

and motor dedicated pressure installed  and plate school flat hydraulic machine,and pressure sensing
hydraulic  machine,and non- marked hydraulic machine.

Our factory specialized in producing all kinds of hydraulic machine has more than 20 years, covers an area
of 27 acres, the annual output value of more than 60 million. Export of France, Russia, Japan and other
counrties  and regions. With many of the world’s top 500 foreign-funded  enterprises in China:  ABB in
Shanghai, Siemens, General Motors, Volkwagen has a partnership. Stable units of production,
personnel and good collaboration. Stable design, production and  excellent after-sales service team.

Packaging & Shipping

Package: Plastic bags, bubble bags and some cushion packaging with iron pallet

Shipping: one month for standard equipmen

2-3 months for non-standard equipment

FAQ

Q1.Do you have experience to export to oversea?which countries did you export before?

A:Dear manager,we have lots of experiences to export to many countries before,eg. France ,Poland, Italy ,Spain,Dubai , Iran, Australia, Bangladesh, Thailand, India, Russia and so on.

Q2:How we do quick response to customer inquiry?

A2:Professional lines,widely supplier sourcing and we will try our best to reply you at first time!

Q3:Do you have any certificates?

A3:Yes,we have AAA,ISO9001 and other cetificates,which can support to ship to your place safely.

Q4:Will you send to us if we need in hurry?

A4:Yes,sure,we have reliable supplying system for long time!
