EN 14423 DIN 2826 Steam couplings with safety clamps unit

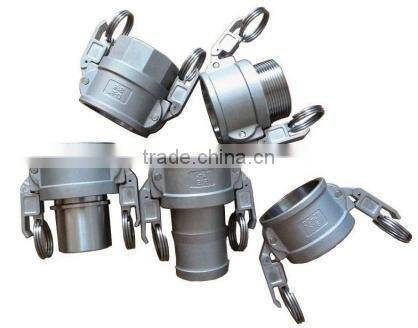

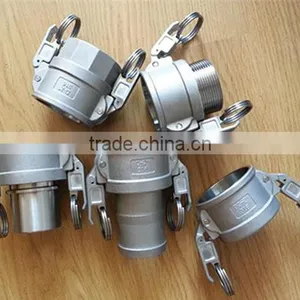

Autolock camlock coupling was also refered to as self-locking camlock coupling.The cam arms were specially designed for the safety and convenience of connection.You can simply close the cam arms just like a regular camlock,but then cam arms lock themselves automatically with a positive click.Autolock coupling hold the adaptor more securely to the coupler to provide added protection against accidental release. | |
|
Application The couplings are capable of transporting liquids,solids and gases,except liquid gas and steam. | |
|
Material Stainless steel AISI316/1.4408 by investment casting |
|
|

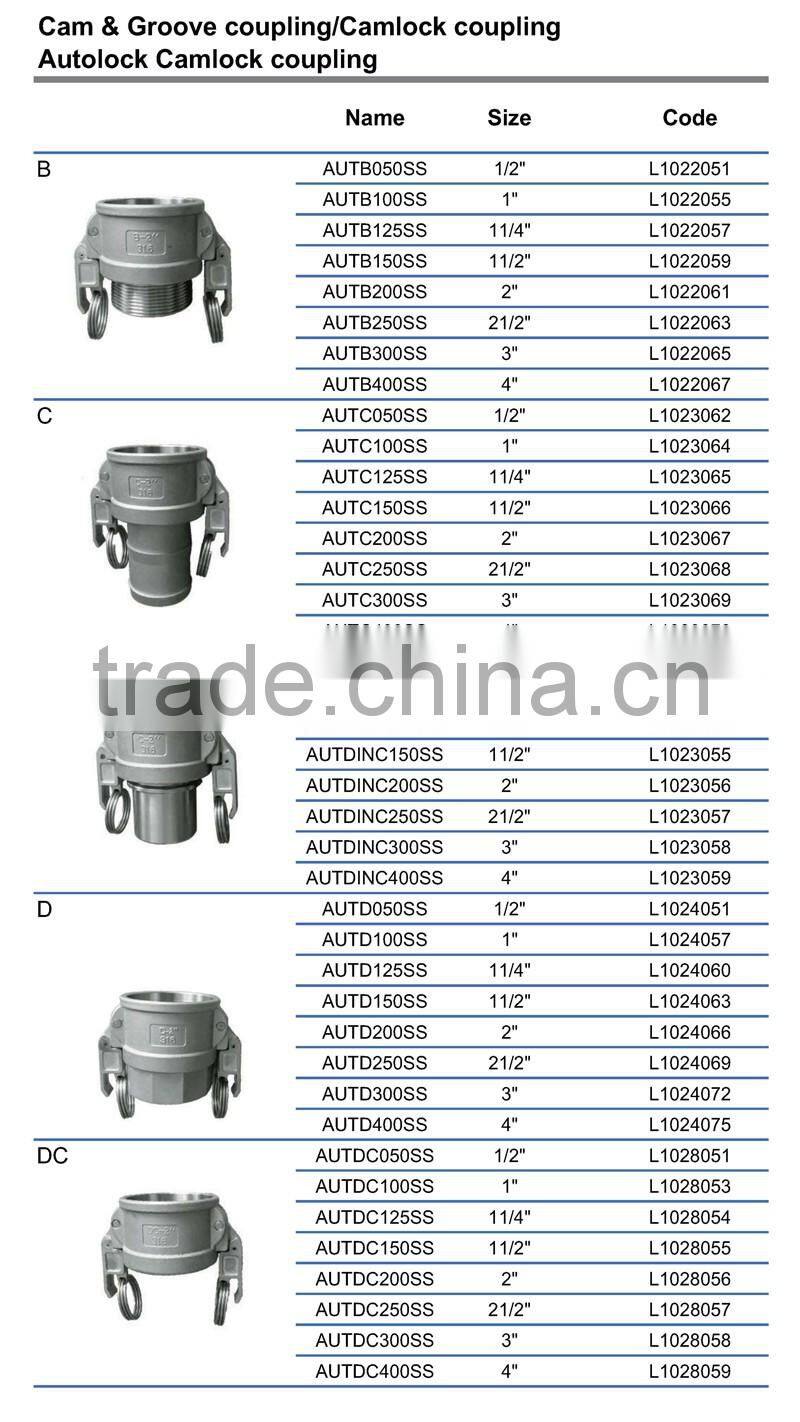

Size Autolock camlock coupling from 1/2" to 4" are available | |
|
Seal 1.The standard flat gasket seal for the autolock camlock is NBR 2.The gasket for DIN female thread coupling according to EN 14420-5, the standard material is PTFE for stainless steel. | |
|
Features 1.Handles are made of stainless steel AISI 304 as a standard. 2.Provides extra protection against accidental release. | |
Thread
Camlock |
Male |
Female |
Standard |
MIL-type |
NPT |
NPT |
NPT according to ANSI / ASME B1.20.1 |
DIN -type |
BSPT |
BSP |
BSP according to EN ISO 228-1 |
