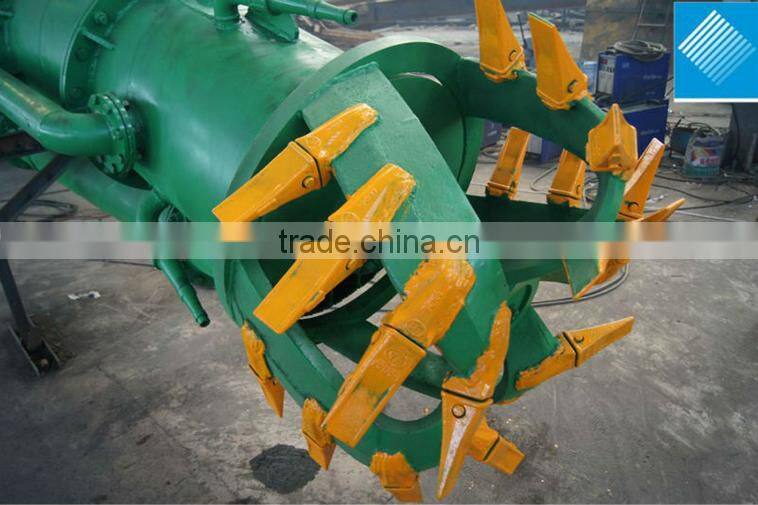

river sand dredger
dredging depth 15m
Distance 2000m
Capacity 1200cbm/h
Cummins engines
Testing inside factory, training operation

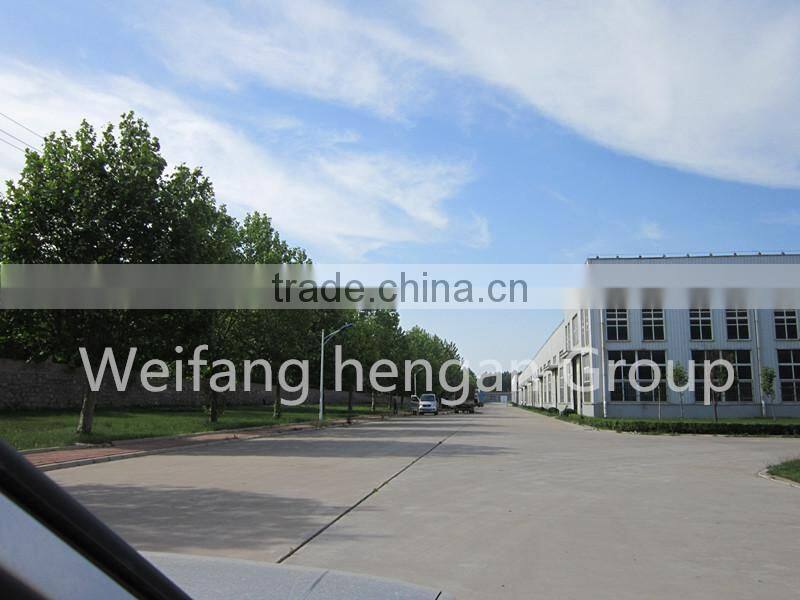

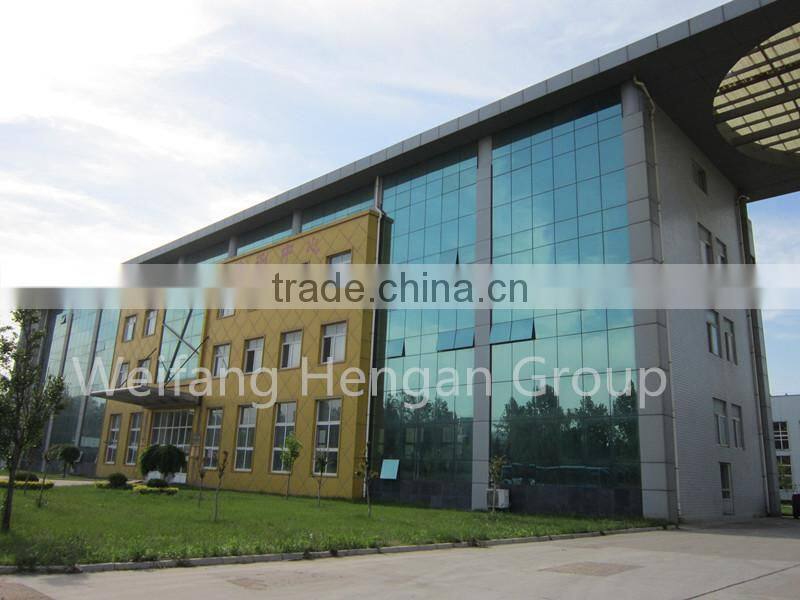

Heng An Group
1975-2015
Weifang Heng An Radiator Group Co., Ltd. was founded in 1975, with registered capital 160 million USD, floor area 0.35 million square meters. Till now,has more than 960 employees.
The products are of a great variety including 800—20000m3/h large scale dredging and sand mining equipments (which includes hydraulic cutter suction type, hydraulic bucket wheel type, mechanical cutter suction type and suction type),gold panning dredger, iron extracting dredger, iron extracting equipments, sand sieving machines, crusher, weathering sand producing lines(break, rinsing and separating). All the products are with different sizes for customers’ choices. We can also design and produce special types of machinery according to customers’ requirements.
| tem/model | HCL200 | HLC250 | HLC250A | HLC300 | HLC300A |
| Pump size | 8inch | 10inch | 10inch | 12ich | 12inch |
| Pump flow | 800m3/h | 1100m3/h | 1500m3/h | 2000m3/h | 2500m3/h |
| Capacity | 160CBM/H | 220CBM/H | 300CBM/H | 400CBM/H | 500CBM/H |
| L*B*H | 15.5*7.2*2m | 15.5*7.2*2m | 15.5*7.2*2m | 21*7.5*2m | 21*7.5*2m |
| Dredging depth | 8m | 10m | 10m | 10m | 10m |
| Draught | 1.3m | 1.3m | 1.3m | 1.4m | 1.4m |
| Distance | 600m | 1000m | 800m | 1200m | 1200m |
| Dia.suction/discharge pipe | 325/300mm | 350/350 | 377/377mm | 426/410 | 460/420mm |
| Dia.cutter head | Φ1100mm | Φ1100mm | Φ1100mm | Φ1300mm | Φ1300mm |
| Main engine power | 258kw | 300kw | 450kw | 600kw | 650kw |
| Dia.cyclinder | 100mm | 100mm | 100mm | 160mm | 160mm |
| Item/model | HCL350 | HLC400A | HLC500 | HLC600 |
| Pump size | 14inch | 18inch | 20inch | 24inches |
| Working load | 3000m3/h | 3500m3/h | 6000m3/h | 8000m3/h |
| Capacity | 600CBM/h | 700CBM/h | 1200CBM/h | |
| 1600CBM/h | ||||
| L*B*H | 23.5*7.5*2.4m | 23.5*7.5*2.4m | 26*8.5*2.6m | 29*10*3.0m |
| Dredging depth | 15m | 15m | 15m | 15m |
| Average draught | 1.6m | 1.6m | 1.7m | 2m |
| Distance | 1500 m | 1500m | 2000m | 2500m |
| Diameter | 550/500mm | 610/550mm | 680/650mm | 810/780mm |
| Pump size | 16/14GH | 450WN | 500WN | 600WN |
| Dia. cutter head | Φ1550mm | Φ1550mm | Φ2200mm | Φ2450mm |
| Total power | 1000kw | 1050kw | 1580kw | 2400kw |
| Emergency generator | 24kw | 24kw | 30kw | 30kw |
Welcome to China visit us !
