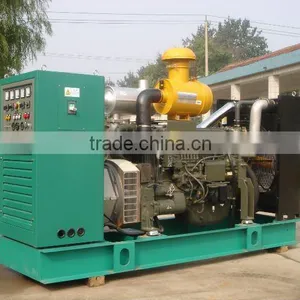

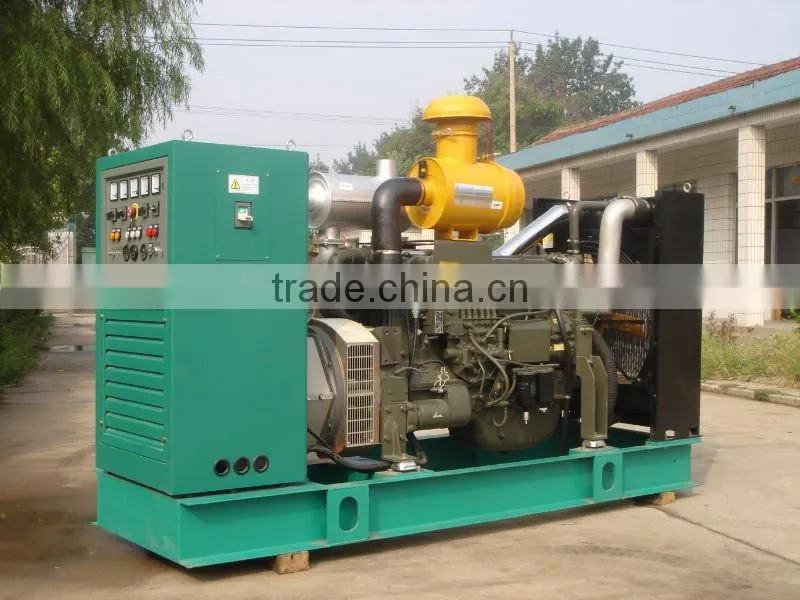

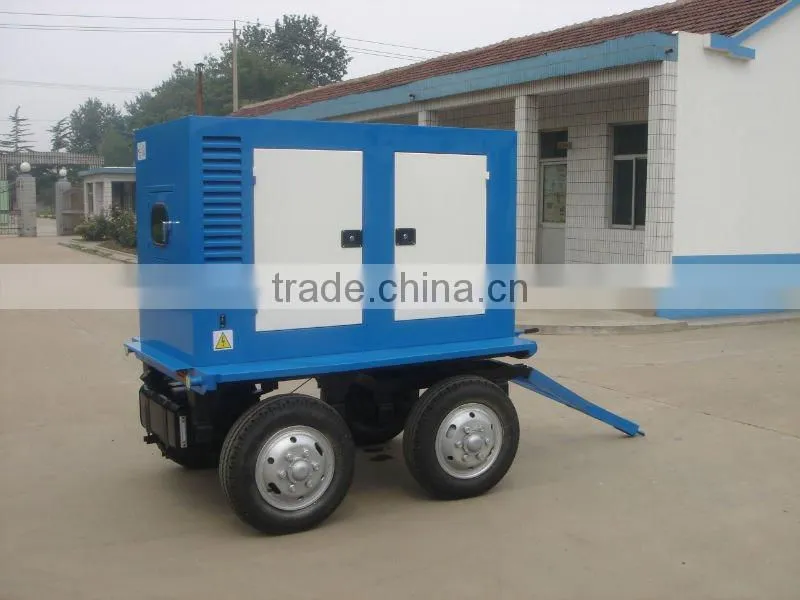

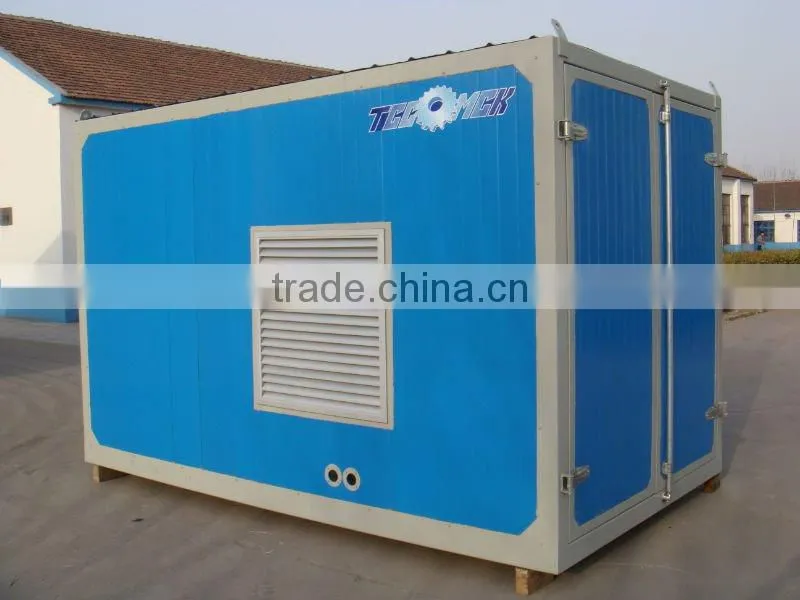

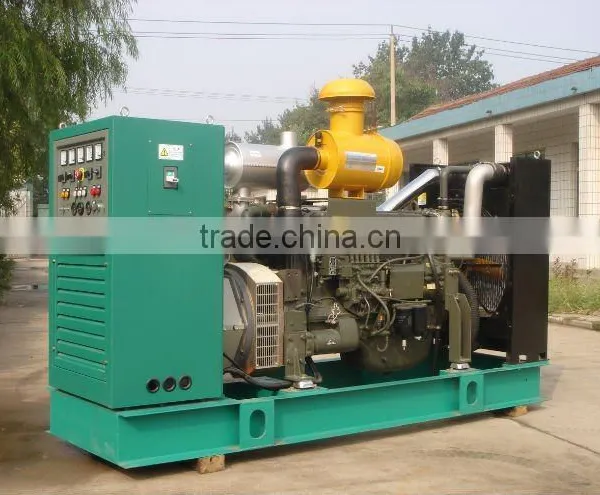

160-400kw Diesel Generating Set With or Without Canopy

Name: 160-400kw Diesel Generating Set With or Without Canopy
Brand: CGE- Diesel Generating Set
SKU: 137623061

US$ 3,000 - 900,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

CGE- Diesel Generating Set

Model Number:

CGE-160GF--CGE-400GF Diesel Generating Set

Weifang Heng An Imp& Exp Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Sea Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name CGE- Diesel Generating Set

Model Number CGE-160GF--CGE-400GF Diesel Generating Set

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50/60hz

Rated Power 200-500kva

Rated Voltage 400/230V

Rated Current 288.6-720A

Diesel Generating Set

1. Brief Descriptions

A. No-load voltage setting rang:≥(95-105)%
B. Steady state voltage regulation rate: ≤±1%

C. Transient state voltage regulation rate: ≤-15%-+20%

D. Voltage recover time: ≤2s

E. Voltage fluctuation rate: ≤0.5%

F. Steady state frequecy regulation rate: ≤5%

G. Transient state frequency regulation rate: ≤±10%

H. Frequency stabilization time: ≤3s

I. Line-voltage waveform sinusoidal distortion rate: ≤2-5%

J.Voltage fluctuation rate (between cold state and hot state):≤ 2%

2. Technical Specifications

Type		CGE-160GF		CGE-200GF		CGE-250GF		CGE-300GF		CGE-400GF
Rated Power (KW/KVA)		160/200		200/250		250/313		300/375		400/500
Rated Voltage (V)		400/230
Rated Current (A)		288.6		360.8		451.1		541.3		720
Rated Frequency (HZ)		50/60
Rated Revolving Speed (r/min)		1000/1500
Rated Power Factor		0.8 LAG
Phases Arrangement		3 phases 4 wires
Fuel Consumption (g/kw.h)		197
Diesel Engine	Type	6160A-6/27	R6160ZD/-3		X6160Z-1 /R6160ZD-4		X6170Z/-1		X6170ZD-26/-3A
	Standby power (kw)	184/202	235/259		280/308		330/363		456/502
	Starting Mode	Started by compressed air / DC24V Electrical starting
	Speed Regulation Mode	Mechanical / Electrical
Alternator	Type	Stamford / Marathon / CGE
	Rated power (kw)	160	200		250		300		400
	Excitation mode	Brushless Excitation with AVR
	Insulation class	H (Temperature rise limit: 125K)
	Protection class	IP22
Control Unit Type		Integral Type
Dimensions (mm)		412013201960	412013201960		412013201960		402013202060		402013202060
Net Weight (kg)		3100	3150		3500		3500		4100
