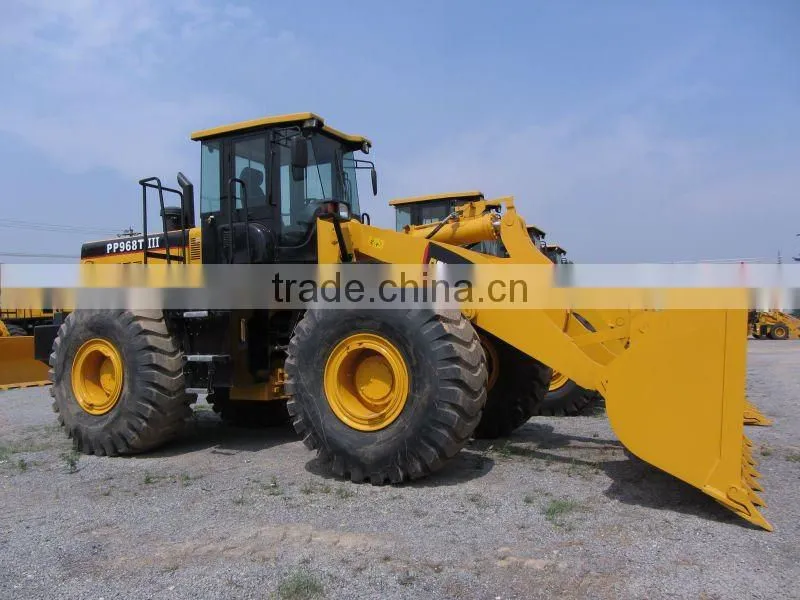

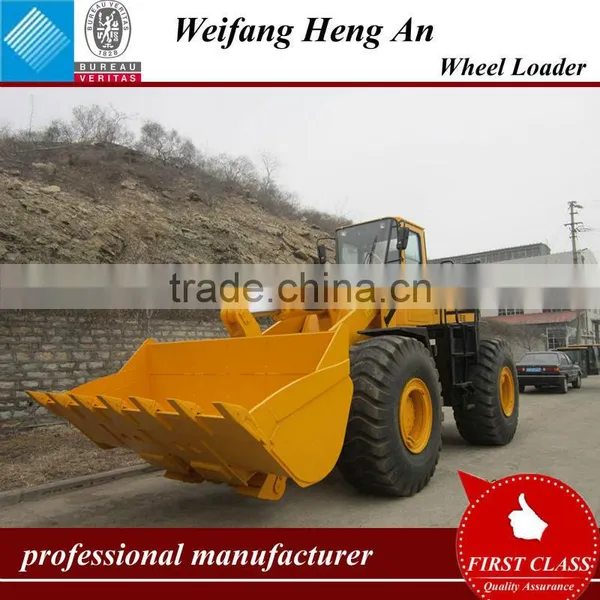

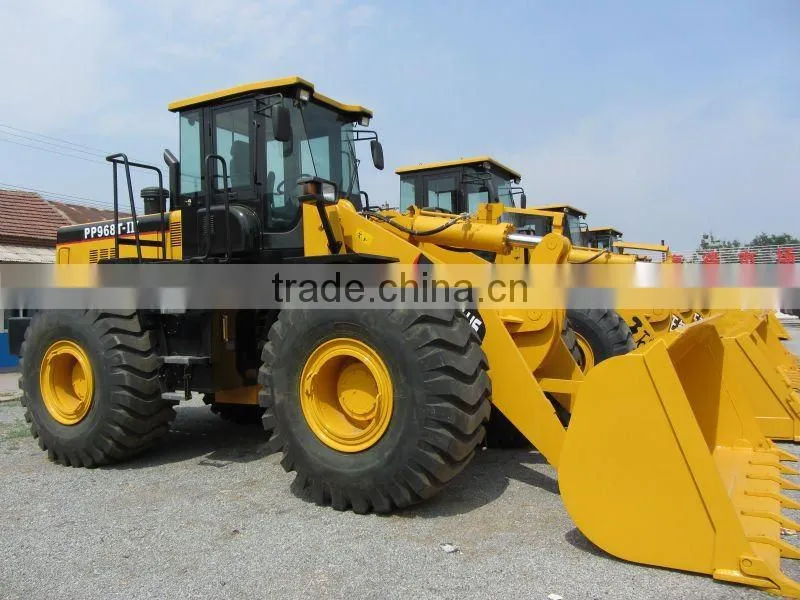

6 Ton Wheel Loader With Shangchai Engine

US$ 49,000 - 59,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

SAM

Model Number:

966F

Weifang Heng An Imp& Exp Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name SAM

Model Number 966F

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7920*3050*3400mm

Rated Load 6TON

Warranty 12months

After-sales Service Provided Overseas service center available

6 ton wheel loader

Parameter Items	Parameter Value
1.Main parameter
Rated load (Kg)	6000
Operating Weight (standard) (Kg)	19600
Rated Bucket Capacity (m3)	3.3
Maximum breakout force (KN)	200
Maximum traction force (KN)	180
Total hydraulic cycle time (s)	12
Maximum dump height (mm)	3200
Maximum dump distance (mm)	1260
Forward speed range (Km / h)	0~37
Back speed range (Km / h)	0~37
Transport dimensions (L × W × H) (mm)	8430×3110×3500
Maximum steering angle (°)	38
Maximum Grade ability	50%
Minimum turning radius (mm)	7100
Tire Size	23.5-25-16PR
2.Engine parameter
Model	Shanghai diesel engine C6121ZG20
Type	6-cylinder, vertically, supercharge, and direct injection
Power (KW)	175
Maximum torque (N.m)	918
Cylinder diameter (mm)	121
Stroke (mm)	152
Output volume (L)	10.45
Fuel consumption (g / KW.h)	240
3.Hydraulic system
Work system pressure (Mpa)	17
4.Braking System
Running braking system type	Single pipeline gas-oil 4-wheel clipper disc braking
Parking / emergency brake system type	Clipper disc braking
5.Oil Tank Capacity
Fuel tank (L)	310
Hydraulic tank capacity (L)
