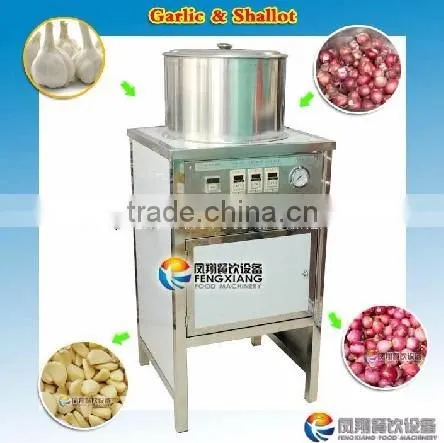

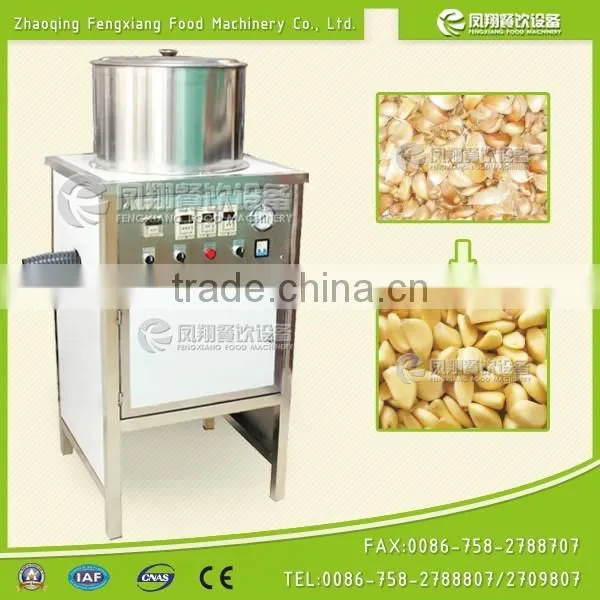

FX-128S economical type garlic and shallot peeling machine

This machine should be equipped with an air compressor. Because of the strong air flow produced by air compressor, the cyclone peels off skin of onions smoothly, with low damage rate. Theres also a heating system inside the machine to make the surface of garlic skin to be dry enough even though in wet weather.

It is suitable for markets and those garlic processing industries.

 1.A highly efficient dry peeling machine.(Garlic is dry)
 2.The principles of the machine applying advanced air compressing technique to peel off naturally, which may guarantee the quality of garlic clove and the highest garlic peeling rate. Due to it is not through machine colliding and squeezing it thus will not cause damage to the garlic.
 3. Completely automatic dry-peel operation Also can peel scallion.
 4. Useful, energy saving compact, high production efficiency, easy to maintaining and cleaning and low malfunction rate.
 5. Automatic control and in feed device, easy to operate.
 6. Can peel different size of garlic, product meets the health standard.
 7. Suitable complete production line or working on single.
 8. Without damage, the garlic has long preservation.
 9. Production output according varieties from breed, season and nature of garlic, production 50~100 kg/hr approximate. Suitable for small capacity processor or user such as restaurant, Hotel, Super Market...etc.
 10. Air compressor (0ption) apply for exhausting is 900L/min or 7.5KW over.
 11. Directly feed into the peeling proceed without drying storage tank to keep warm and dry. User could insolate under then sunlight or keep in the dryer to dry the skin.
 12. Be suitable for garlic and small onion.
 13. All patent rights for multi-countries reserved and any counter felt with are taken into count.

Main Parameter:
Dimension: 630mm x 630mm x 1470mm
Power of Peeling: 2.2kw (including heating power)
Material: Machine body and Cylinder are made of stainless steel
Air Compressor Required:
Power:7.5kw
Air pressure: 8-9KG/CM2.
Capacity: 70KG/H
Net Weight:90KG
Voltage: 220V

Features

1. It adopts a special design for peeling. During the peeling process, the garlic doesn’t go through the blade or friction to make sure the integrity, freshness and cleanness.

2. It has the functions of drying, automatically peeling, energy-saving, high output and easy to clean.

3. An automatic feeding device is set on the machine to separate the garlic kernel and the garlic skin.

4.The machine conforms to the hygienic standard and it is low in damage. After peeling, the garlic kernel can be store for several days.

Application

That machine is suitable for usage of market, food processing factory and other garlic industry.

Note

It can be connected to the related processing step like washing, peeling, cutting, drying, or packing in a whole processing line.

Hearty service

1.Before sending the machine, we will test and adjust, so you can use directly when you get it.

2.Operating video & instruction will be sent to clients, to help them better use the machines.

3.Any problems occur while using, professional advice will be given by us.

4.All kinds of frequently used parts are supplied from us all the year round.

Related Items

Packing: by standard export plywood case

Delivery Time:  5-8 days after receving advanced payment

Port of loading: Guangzhou/Shenzhen, China

Brand: Feng Xiang

Guarantee: One Year

MOQ: 1 set

Contact:

Our company focuses on food processing machines for more than 10 years. We have more than 200 types of machines. You can always find what you need here.
