2.4Ghz 300meter kivos kdb300 video door phone with android With Pir Auto-detection Recording

Specifications

1.Fashion appearance
2.Extra large range of vision
3.High-resolution color LCD screen
4.Infrared Night-Vision,etc.

2.4Ghz 300meter kivos kdb300 2.4Ghz 300meter kivos kdb300 video door phone with android With Pir Auto-detection Recording With Pir Auto-detection Recording









Features:





1. Used for Private Houses, villas, flat and apartment.

2. Wireless two way intercom, 2.4G public frequency.
3. 1 outdoor camera, 3 indoor monitors Max. for different rooms.
4. Transmission distance: 500meter Max.
5. DIY Install.
6. With motion sensor (Could be switched on or off).
7. Unlock door function.
8. Internal memory, pictures shooting automatically and manually.
9. 3.5inch LCD clear screen, 120degree wide lens.
10. Volume could be adjusted, 12 ring tones.
11. Nokia chargeable lithium battery.
12. Table charger for monitors.











Characteristics and application:







1. Fashion appearance -- adopt European design, full of modern science and technology feeling, suitable for houses of various decorative styles.

2. Hidden antenna -- adopt built-in antenna design, protect the antenna effectively.

3. Extra large range of vision -- an extra wide angle viewable.

4. High-resolution color LCD screen -- adopt 3.5-inch mainstream TFT digital LCD screen, achieve outstanding clarity.

5. High-resolution digital camera -- adopt 300,000 pixels digital camera, image focusing vivid and clear.

6. High speed transmission ---image transmission speed is 25fps, the image is clear and fluent.

7. Infrared Night-Vision -- under the environment of insufficient outdoor light, the handset can activate the infrared Night-Vision to clearly display and record the outdoor scenes.

8.12 kinds of ringtones -- users can select the desired doorbells ringtones freely.

9. One-key display -- simple and convenient to use, view the outdoor scenes and take photos just by pressing down one key.

10. Auto detection --it would auto take photo when a visitor come close to the door.

11. Intercom function -- can choose one-way or both-way talkback function.

12. Super long standby -- high capacity rechargeable lithium batteries are provided, adopt intelligent energy-saving technology, fully charged batteries service time could be up to 40days.

13. Charge-and-record supported -- without the need to worry that the operation will be affected due to depletion of electrical quantity.

14. Auto circulating memory --100 photos auto circulating stored.

15. USB data charging wire -- charge through the USB interface.

16. Multifunction holder -- matching charger.

17. Multimachine extended function -- support two outdoor units and three handsets at most.

18. Long distance transmission -- communication distance can reach 150 meters in open space.

19. Frequency range -- adopt 2.4G ISM digital public frequency range: 2402~2483.5MHz.

20. Adaptive frequency hopping technique -- adopt AFH (Adaptive Frequency Hopping Technique), produce communication frequency and Auto-Sync frequency randomly.





Specification:









Outdoor unit	Power:	Specific lithium battery BP-6M(1100mAh)
	Consumption:	400mA
	Outline dimension:	134*74*31mm
	Weight:	122g
	Environmental condition:	Temperature: -10 ~ + 50 degrees
	Waterproof grade:	IP55
	Placement:	Hang on outwall
	Surface material:	ABS & hardware accessories
	Camera:	300,000pixels
	View angle:	120 wide angle
	Night vision pattern:	2 leds or IR lamp
	Working time:	3hours continuously
	Standby time:	1000hours
	Charge time:	3hours
	External power:	DC5V 1A
Indoor monitor	Power:	Specific lithium battery BP-6M(1100mAh)
	Consumption:	400mA
	Outline dimension:	126*84*20mm
	Weight:	110g
	Environmental condition:	Temperature: -0 ~ +40 degrees
	Placement:	Hang on wall or table style
	LCD size:	3.5" TFT color screen
	Wireless communication mode:	2.4GHz
	Working time:	2hours continuously
	Standby time:	100hours
	Charge time:	3hours
	External power:	DC5V 1A
	Application distance:	About 300m in open space









Operation and maintenance:



Please keep this product dry, as rainwater, moisture, humidity and liquids or

moisture content may contain mineral matters that erode the circuit.



1.Do not keep this product in any place with high temperature. As high temperature

may shorten the lifespan of electronic device, damage the battery and cause

deformation or melting of certain plastic parts and components.



2. Do not keep this product in any place with low temperature. As when being moved

from a place with low temperature to a place with normal temperature, it may generate

humidity inside, which may cause damage of circuit board.

3. Do not attempt to dismantle this product. As improper handling by nonprofessional

personnel may cause damage of the device.

4. Do not toss, knock or shake this product, as tough operation mode may damage the

motherboard inside the device.

5.If this product is made wet by mistake, shut it down, remove the battery, and restart

the product after confirming it complete dry after 24 hours.

6. Do not have the metal parts (specially configured interfaces of charger and data line

excluded) in contact with charger interface to avoid short circuit.

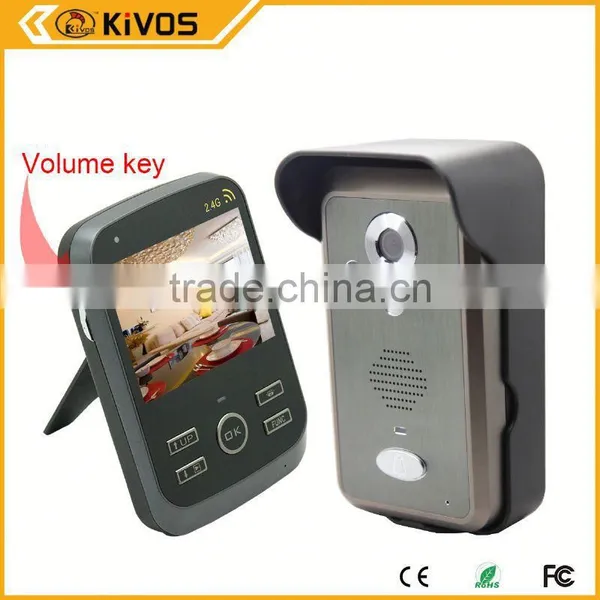

Pictures:
