Kivos kdb300 wireless video door phone

Specifications

Wireless Door Camera
support 3 monitors
IR night vision
lithium battery
300m distance

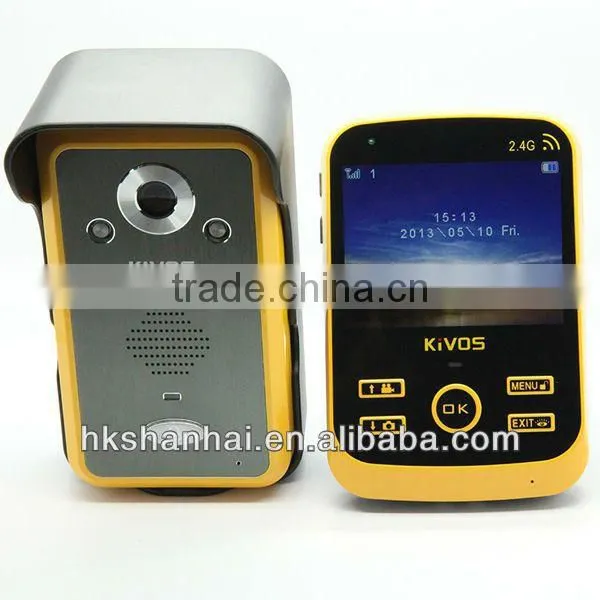

Kivos Kdb300 Wireless Video Door Phone







1. Main function For Wireless Door Camera

2.Specifications For Wireless Door Camera



(1) 2.4GHz digital frequency encryption technology, 2402~2483.5MHz

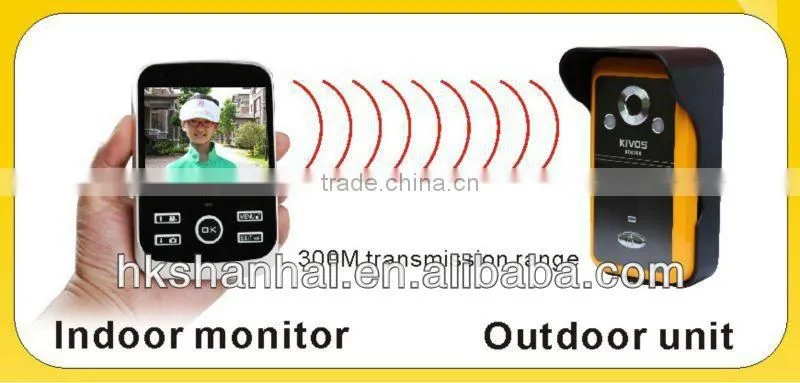

(2) Transmission distance up to 300 meters at open area, robust anti-interference;



(3) Clear night vision;



(4) Rain shield for the outdoor camera is available;



(5) 3.5 inch TFT panel and monitoring all the while;



(6) Hands-free intercom, unlocked by wireless control;



(7) 12 chord melodies for option, melody volume is adjustable;



(8) Date (only one Outdoor Camera with one indoor monitor is available) and time shown on the



indoor monitor;



(9) Indoor monitor store up to 100pcs pictures, expanded- memory

can reach 500pcs, pictures mark date and time.

(10) Brightness and talking volume are adjustable

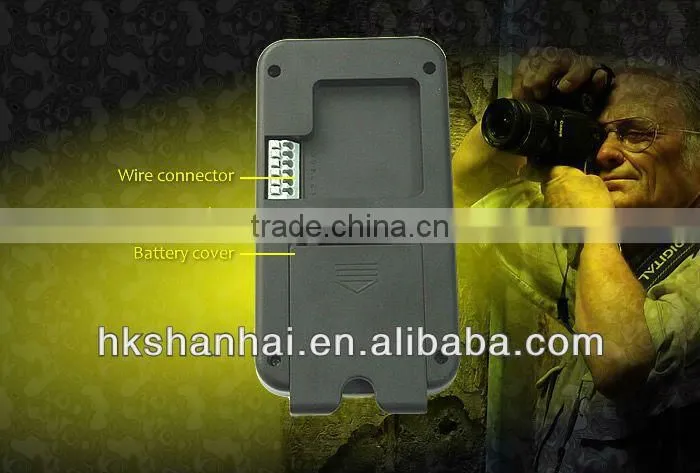

(11) Mini USB charging interface, lithium battery is replaceable and rechargeable,

(12) One outdoor camera support up to 3pcs indoor monitors simultaneously and vice versa;





3. Parameter For Wireless Door Camera

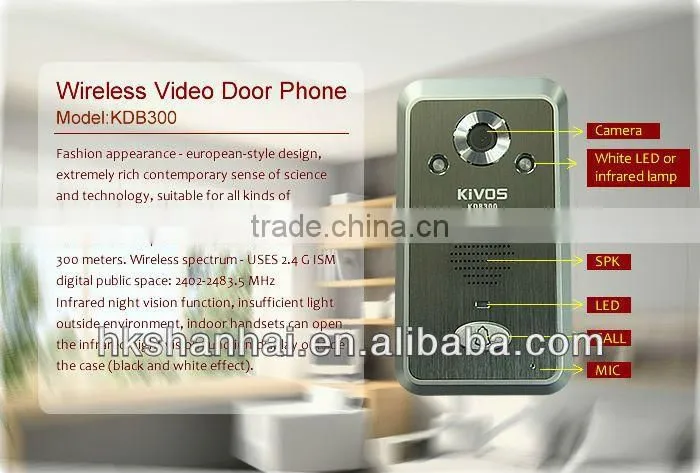

Outdoor machine	Power	Specific lithium battery BP-6M(1100mAh)
	Consumption	400mA
	Outline dimension	134*74*31mm
	Weight	122g
	Environmental condition	Temperature: -10°C~+50°C
	Waterproof grade	IP55
	Placement	Hang on outwall
	Surface material	ABS & hardware accessories
	Camera	300,000pixels
	View angle	120° wide angle
	Night vision pattern	2 leds or IR lamp
	Working time	3hours continuously
	Standby time	1000hours
	Charge time	3hours
	External power	DC5V 1A

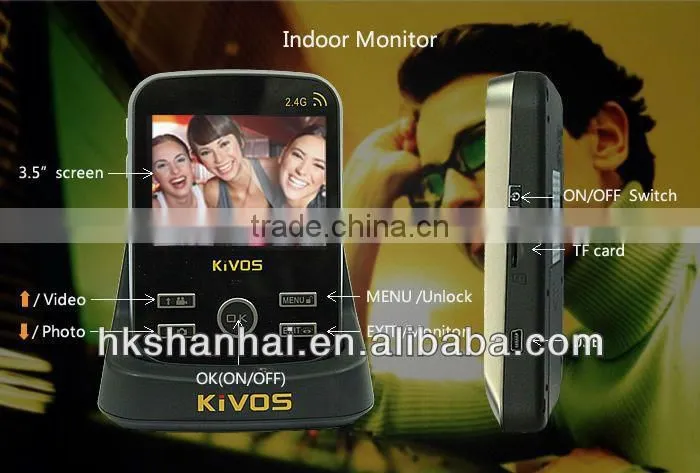

Indoor machine	Power	Specific lithium battery BP-6M(1100mAh)
	Consumption	400mA
	Outline dimension	126*84*20mm
	Weight	110g
	Environmental condition	Temperature: -0°C~+40°C

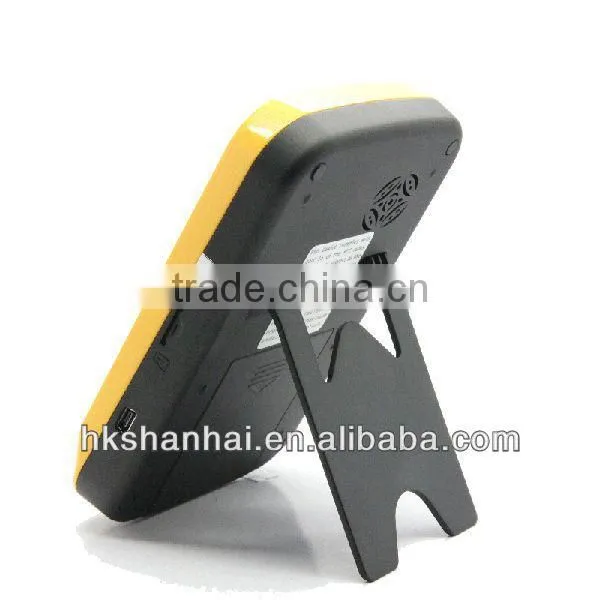

	Placement	Hang on wall or table style
	LCD size	3.5" TFT color screen
	Wireless communication mode	2.4GHz
	Working time	3hours continuously
	Standby time	100hours
	Charge time	3hours
	External power	DC5V 1A
	Application distance	About 300m in open space



4. characters For Wireless Door Camera

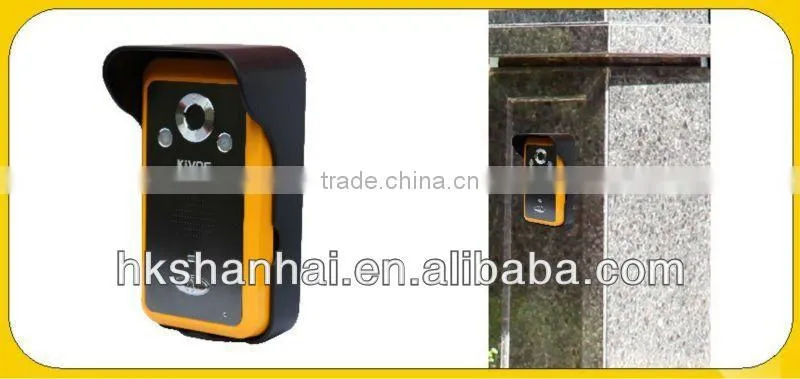

	Rain cover adopted, 5 grades water proof Fashionable outdoor unit, mounted on outwall, resists the wind and rain.Waterproof grade: IP55
	Fashionable appearance, built-in aerial Fashionable patented appearance, aerial built in to protect it effectively.
	Monitor/Intercom Unique designed outdoor unit, put indoors to monitor and intercom and could used as Baby Monitor.

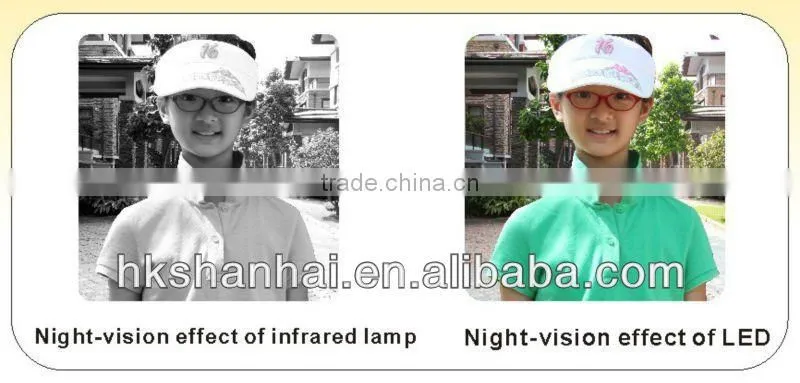

	Colored night-vision effect White LED configured, exposure could be adjusted instantly. Colored image effect of night-vision is more clear and vivid. (Infrared lamp is alternative, image effect is white and dark in night.)





5.PicturesFor Wireless Door Camera
