Hot offer wireless 1mw wir ant XB24-Z7WIT-004 XBee series 2 pro
What is Descriptions of our Hot offer wireless 1mw wir ant XB24-Z7WIT-004 XBee series 2 pro ?
Overview
This is the XBee XBP24-BZ7WIT-004 module from Digi. These are often called Series 2 modules, it may not be the correct term, but it does distinguish these from the Series 1 modules. They can run in a transparent mode or work with API commands. They can also run in a mesh network making them highly configurable and awesome modules. Series 2 improves on the power output and data protocol. Series 2 modules allow you to create complex mesh networks based on the XBee ZB mesh firmware. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.
These are essentially the same hardware as the older Series 2.5, but have updated firmware. They will work with Series 2.5 modules if you update the firmware through X-CTU
Note: If you are looking for a simple point-to-point configuration, you might want to try the Series 1 instead. The Series 2 requires considerable setup and configuration.
Note: Series 1 and Series 2 XBee modules have exactly the same pin-out. However, Series 1 modules cannot communicate with Series 2 modules.
Note: If you are using these outside, please check with your local laws regarding radio communication.
What is Features of our Hot offer wireless 1mw wir ant XB24-Z7WIT-004 XBee series 2 pro ?
Feature
Performance
- RF Data Rate: 250 Kbps
- Indoor/Urban Range; 133 ft (40 m)
- Outdoor/RF Line-of-Sight Range: 400 ft (120 m)
- Transmit Power: 1.25 mW (+1 dBm) / 2 mW (+3 dBm) boost mode
- Receiver Sensitivity (1% PER): -96 dBm in boost mode
Features
- Adjustable Power: Yes
- I/O Interface: 3.3V CMOS UART, ADC, DIO
- Configuration Method: API or AT commands, local or over-the-air
- Frequency Band: 2.4 GHz
- Interference Immunity: DSSS (Direct Sequence Spread Spectrum)
- Serial Data Rate: 1200 bps - 1 Mbps
- ADC Inputs: (4) 10-bit ADC inputs
- Digital I/O: 10
- Operating Temperature & Humidity: -40° C to +85° C, 0-95% humidity non-condensing
Programmability
- Memory: N/A
- CPU/Clock Speed: N/A
Networking & Security
- Encryption: 128-bit AES
- Reliable Packet Delivery: Retries/Acknowledgments
- IDs and Channels: PAN ID, 64-bit IEEE MAC, 16 channels
- Power Requirements
- Supply Voltage: 2.1 - 3.6VDC
- Transmit Current: 40 mA (@3.3 V)
- Receive Current: 38 mA / 40 mA boost mode @ 3.3VDC
- Power-Down Current: <1 uA @ 25º C
- Physical Properties
- Weight: 3g
- Size: 2.8cm x 2.5cm
- Antenna: wired whip antenna
Specification

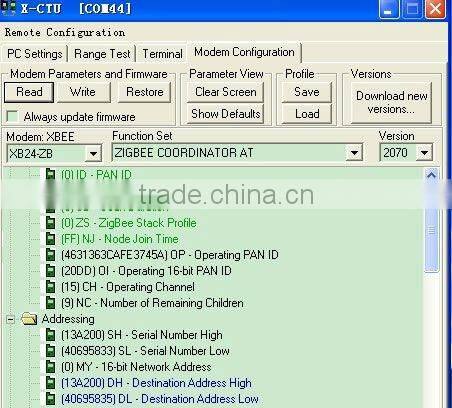

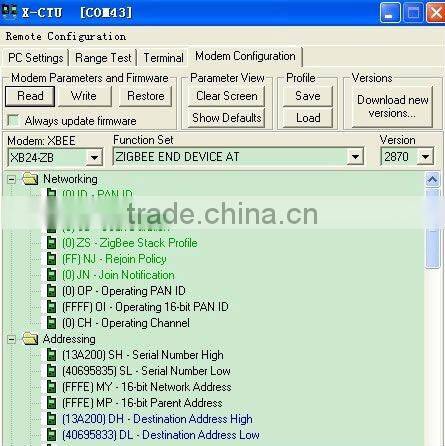

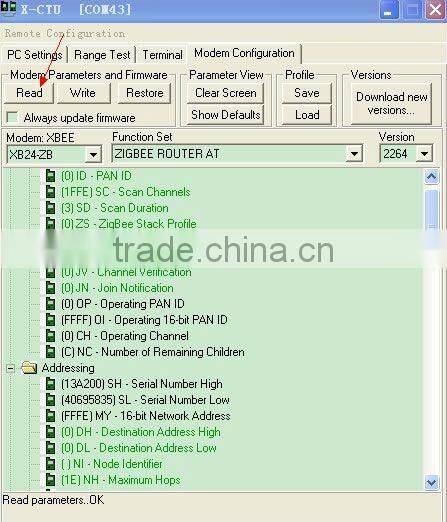

Running Interface
|
|
|
|

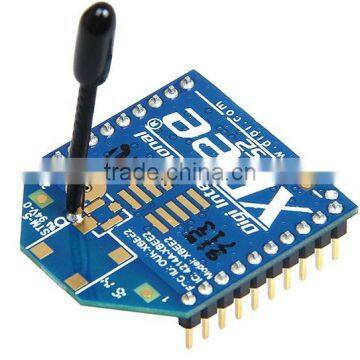

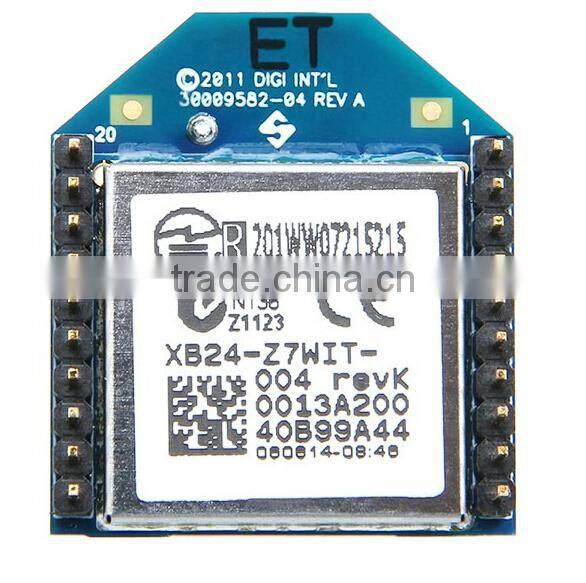

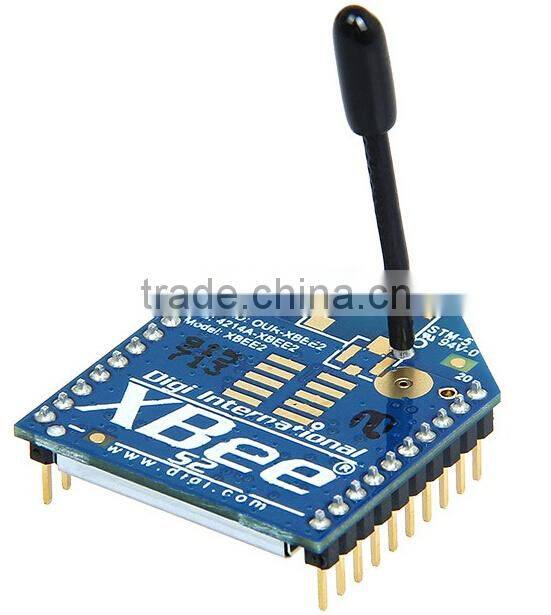

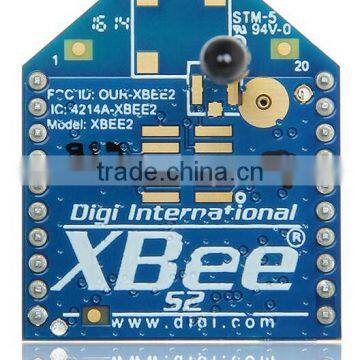

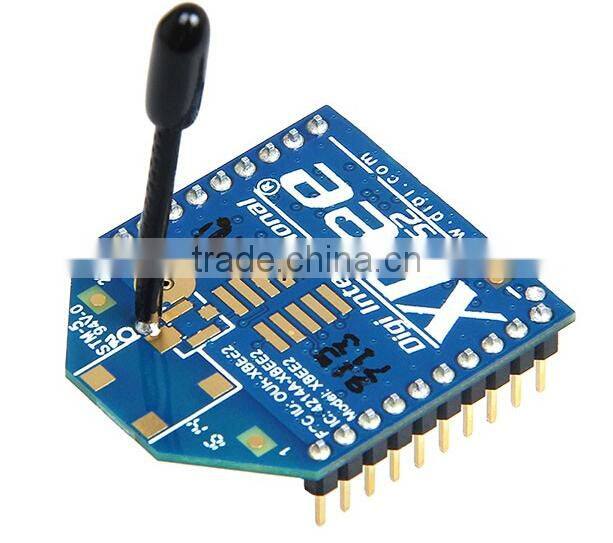

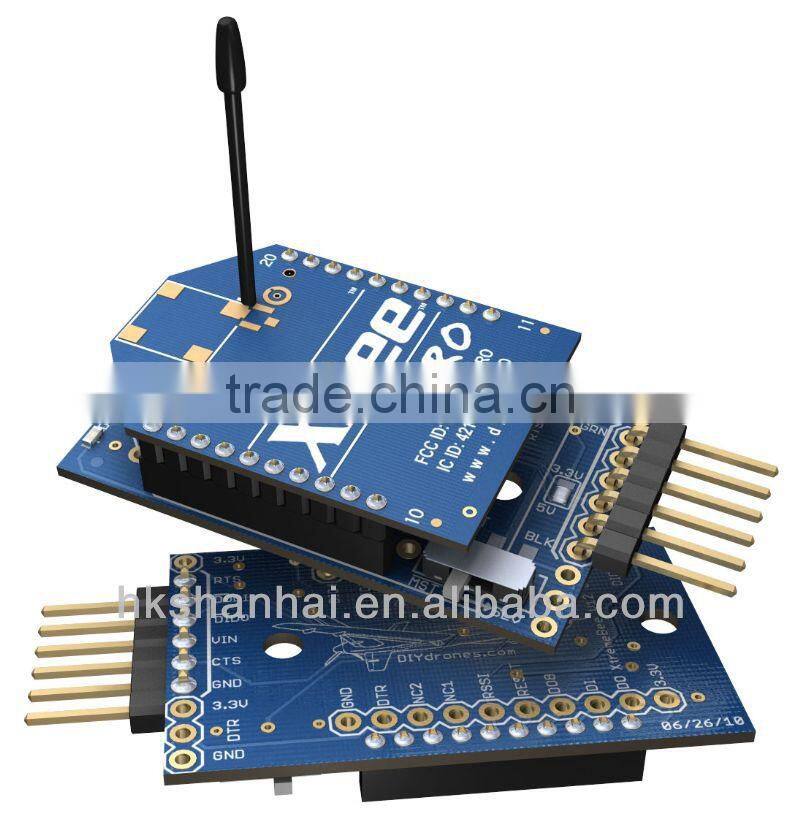

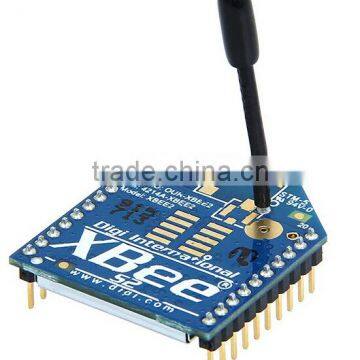

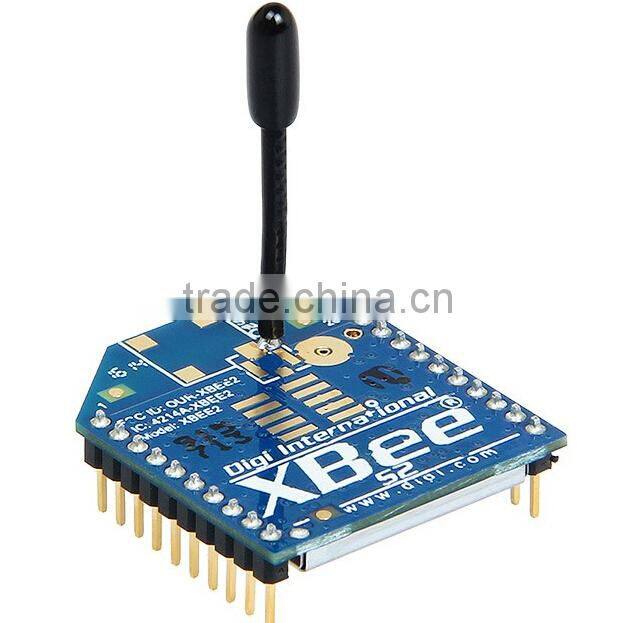

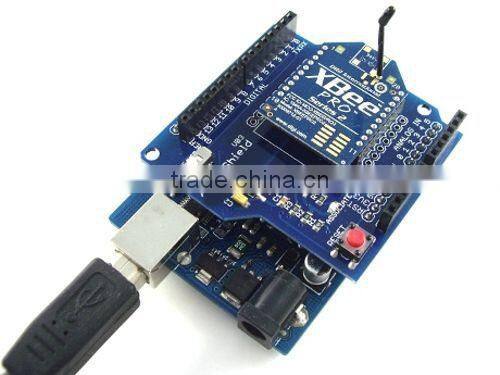

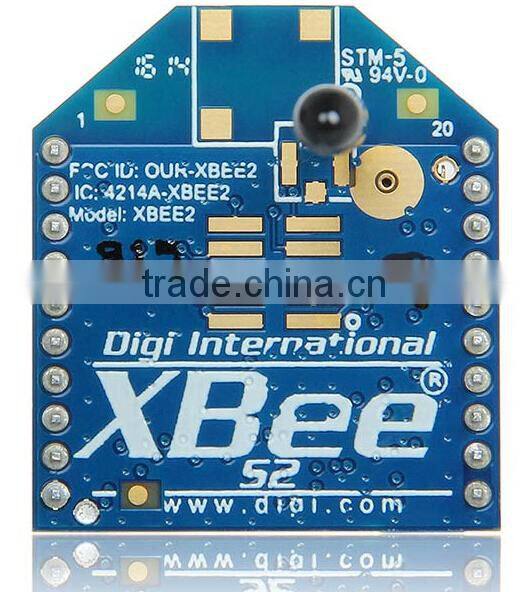

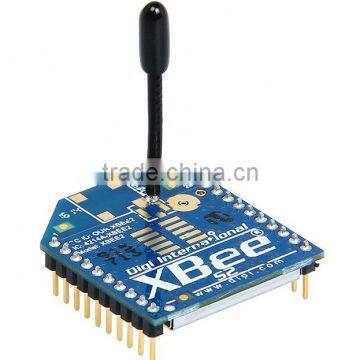

How is the pictures of our Hot offer wireless 1mw wir ant XB24-Z7WIT-004 XBee series 2 pro ?
|
|
|
|
|
|
|
