GSM TC35i module GSM GPRS Module Cinterion TC35I modem gsm alarm system
Product Specification:
The most important features of the tc35i include:
1. GSM dual band(900/1800 mhz)
2. Small size(54.5 x 36.0 x 3.6 mm)
3. Low power
General features:
Dual-Band EGSM900 and GSM1800
Compliant to GSM phase 2/2+
Output power:
Class 4 (2 W) for EGSM900
Class 1 (1 W) for GSM1800
Control via AT commands
SIM Application Toolkit
Multiplex RS232 interface
Supply voltage range 3.3...4.8 V
Power save mode
Power consumption:
Idle mode (registered) 25 mA
Speech mode 300 mA
Peak <2.5 A
Power down 50 μA
Sleep mode 3.5 mA
Dimensions: 54.5 x 36 x 3.6 mm
Weight: 9 g
Ambient temperature: ¯ 20º C...+55 º C
Specifications for data transfer:
CSD up to 14.4 kbps
USSD
Non transparent mode
V. 110
7E1-character framing
Specifications for SMS:
Point-to-point MO and MT
SMS cell broadcast
Text and PDU mode
Specifications for fax:
Group 3, class 1, 2
Specifications for audio:
Half rate (HR)
Full rate (FR)
Enhanced full rate (EFR)
Basic handsfree operation
Echo cancellation
Noise reduction
Additional features:
Phone book
Multiparty call
Call diverting
Real time clock
Alarm management
Several ringing tones
DTMF
(Dual Tone Multi Frequency)
Interfaces
40-pin ZIF connector:
Power supply
SIM
RS232 bi-directional bus
Autobauding
Analog audio
Antenna connector GSC, 50 Ω

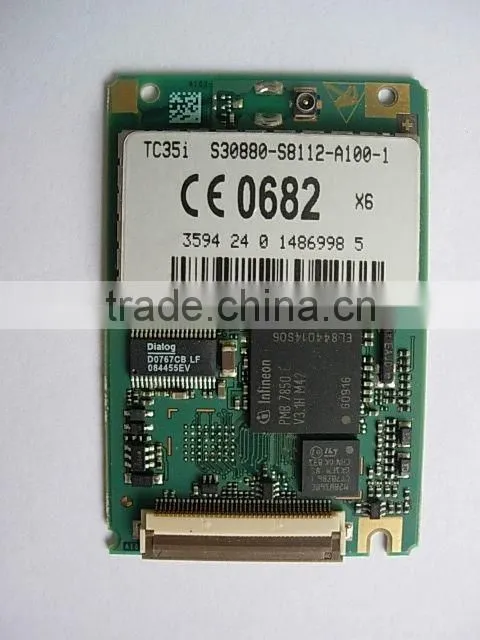

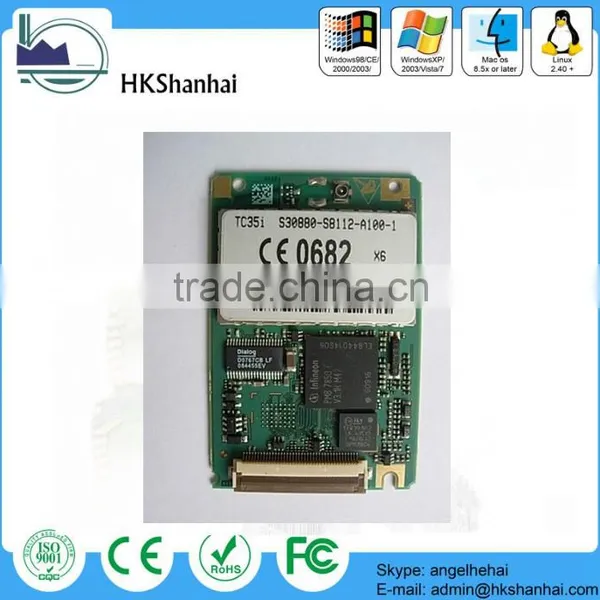

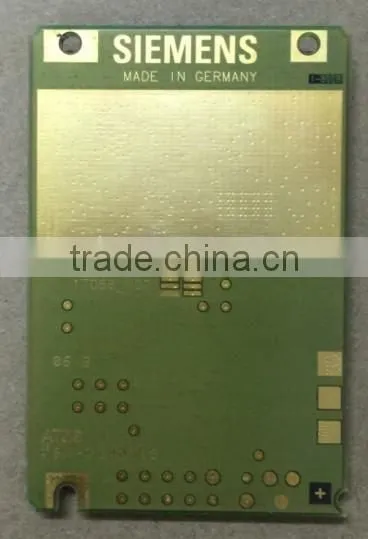

Product Pictures:

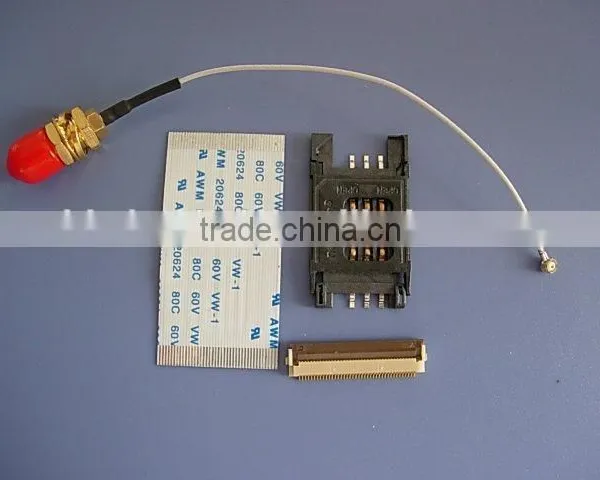

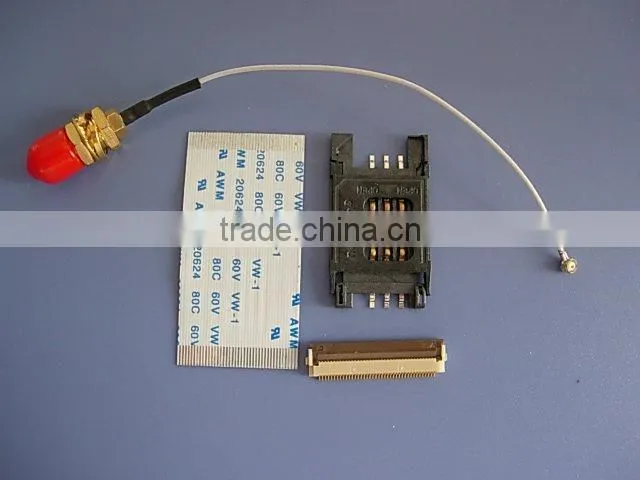

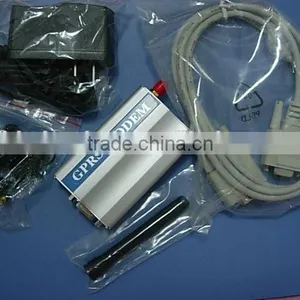

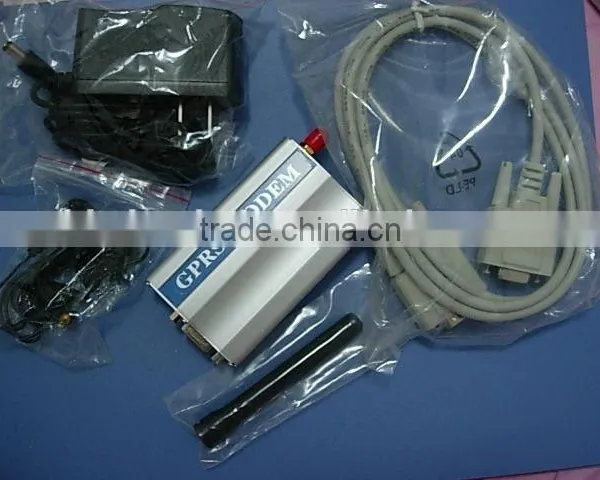

Accessories:
Shipment & Package:
1.Rapid response on any inquiry.
2.Competitive price.
3.Professional inspection department to guarantee quality.
4. we supply 1 year warranty , and free technology support .
