Specifications
$keywords$1. gprs modem rj45
2. can send 600 sms per port per hour.
3. for bulk sms sending and receiving.
$keywords$
rs232 gsm modem
rs232 gsm modem

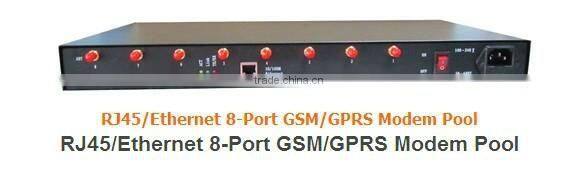

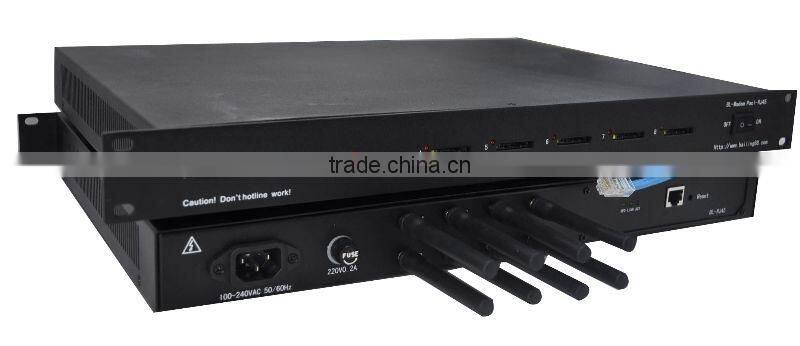

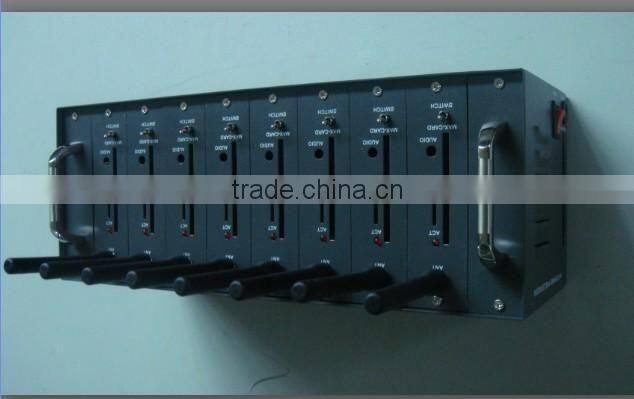

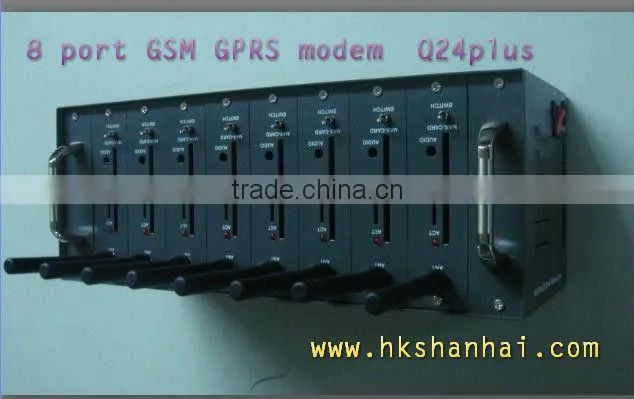

8 ports RJ45 GSM Modem wireless modem/gprs modem rj45
There's four models for your choice,pls check the function of each model,any question pls feel free to contact me!
Our gsm wavecom modem have four different modules. Pls feel free to contact with me before you place order.
Module NO. | Function | Frequency(MHz) |
Q2303 | SMS(600pcs per hour) | 900/1800 |
Q2403 | SMS,MMS | 900/1800 |
Q2406B | SMS,MMS,TCP Protocol | 900/1800 |
Q24plus/q2686 | SMS,MMS,TCP Protocol | 850/900/1800/1900 |
wir
eless
Product features Adaptive Ethernet (RJ45)/USB/RS232 interface Based on france WAVECOM module, Stable and reliable. 8 ports in parallel Supports GSM SIM cards Industrial grade quality standards standard 1U chassis design
Industrial wavecom Q2303 GSM Modem for SMS/MMS sending 16 port gsm modem tc35i |
Industrial wavecom Q2303 GSM Modem for SMS/MMS sending 16 port gsm modem tc35i
Technology parameter radio-frequency performance double frequency(EGSM/GPRS 900/1800 MHz, EGSM900/1900MHz Rx (EGSM 900) : 925 to 960 MHz Tx (EGSM 900) : 880 to 915 MHz Rx (GSM 1800) : 1805 to 1880 MHz Tx (GSM 1800) : 1710 to 1785 MHz Rx (GSM 1900) : 1930 to 1990 MHz Tx (GSM 1900) : 1850 to 1910 MHz SMS: support MT, MO, CB, Text and PDU mode
|
Industrial wavecom Q2303 GSM Modem for SMS/MMS sending 16 port gsm modem tc35i
Power consumption voltage : 3.6V Class4(2W@900MHz) Class1(1W@1800/1900MHz), Single-channel input V: 5V-2 Single-channel input C: MAX 1.7A, average 270MA Baud rate: default 9600bps(SMS), 115200bps(MMS) Ethernet : 10/100M adapter Default IP Address: 192.168.0.233 Deploy : TELNET or http Transmit-receive rate : 720-900 sms /Hour AT command control standards: GSM07.07 / GSM07.05 Antenna: 50 ohm,3dB gain Size: standard 1U Industrial wavecom Q2303 GSM Modem for SMS/MMS sending 16 port gsm modem tc35i |
Industrial wavecom Q2303 GSM Modem for SMS/MMS sending 16 port gsm modem tc35i
Range of temperature: -20°C to +55°C working -25°C to +70°C conserve Industrial wavecom Q2303 GSM Modem for SMS/MMS sending 16 port gsm modem tc35i Input : 220AC/50~60HZ
Network interface : a 10/100M adapter SIM interface: 16 SIM cards slot Antenna interface: 16 SMA antenna |
Key Feature
-Just like 16 single-channel equipments work at the same time
-Insert 16 SIM cards(big or small)
-Connection with the computer through a data line be integrated with Serial 16
-Each channel with separate power switch
-Each individual module be demolished
-Industrial chassis, elegant shell
-GSM frequency:900/1800MHz
-16 x SIM card(big/small) slots
-Wireless access to internet
-Comply with GSM phase2 standard
-Dual-band/Quad-band(optional)
-RJ45 interface(optional)
-16 SIM Card supported (Big/Small)
-Optional data, voice function
-Send and receive English SMS/MMS in bulk
Basic Feature
-Asynchronous, transparent or non-transparent, to a maximum 14400 bits / s
-Baud Rate: 300-115200 bits / s
-Automatic baud rate: From 2400 to 19200 bits / s
-Fax support three
-Switched voice and fax
-V. 42, V. 42bis
-GPRS compatible
-Wap compatible
-SMA Antenna Interface
-SIM Card Outlet
-Power connector
-RS-232, the Mini-dB-9 connector
-AT command control ( GSM 07.07 and 07.05)
Application
-Large shopping malls, supermarkets
-Professional market, large wholesalers
-Large hotels, large-scale entertainment
-Large agencies
-Transport, logistics industry
-Large enterprises, and institutions
-Large hospitals, large bookstore
-Newspaper, television and radio stations
-Oil Company ( other chain business model)
-Government agencies or large township
Hardware Feature
-Support dual-band GSM: 900/ 1800 MHz
-Meet the ETSI GSM 2 + standards
-Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz)
-5 -24 VDC power supply (which be directly connected to the nickel- metal
-Hydride or lithium batteries)
-Operating Temperature: -20 ° C - + 55 ° C
-Storage temperature: -25 ° C - + 70 ° C
-Size: Standard 1U chassis
Pictures:
