Specifications
2013 Newest Version LEA-6T uart gps modulePrecision Timing module
$keywords$
Product description

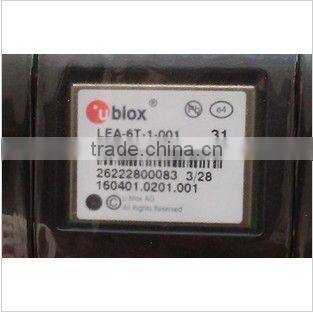

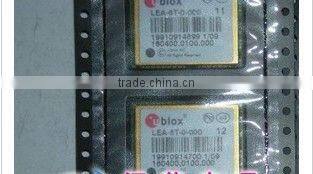

LEA-6T precise timing module
Based on u-blox 6 ROM GPS module
LEA-6T demanding applications for the position to provide precise GPS time services, such as base stations. LEA-6T with a time mode function can be entered manually or automatically initialize the GPS receiver to measure the static 3D position . In static operation, only one satellite can be seen in the case of a GPS timing ; and eliminates timing errors , in order to avoid positioning errors. By using the quantization error compensation time pulse granularity error, accuracy up to 15ns. This means that even if the signal adjustment position or poor visibility of the sky environment can obtain time output. The module allows users to configure the frequency output and time pulses. Built-in time-scale and external event counter device capable of precise time measurement . LEA-6T available through an easy to use precision timing EVK-6T Evaluation Kit for assessment tests .
Advantages:
1 The precise timing : 2 time pulse output ( up to 10 MHz)
At least one satellite visible time pulse can be output
Static mode GPS timing
External event input time scale
(2) the raw data
3 built-in functions for configuring storage stability
4. UART, USB and DDC ( I2C compliance ) Interface
5. RTC crystal for faster warm start and hot start
u-blox 6 Features:
* U-blox 6 position engine :
Tracking sensitivity to -160 dBm, cold start sensitivity of -146 dBm
Hybrid GPS / SBAS engine (WAAS, EGNOS, MSAS)
Anti-jamming technology
* Easy to u-blox wireless modules with integrated
* A-GPS: AssistNow Online and AssistNow Offline services , OMA SUPL specification compliance
* Backward compatible ( hardware and firmware ) ; available from LEA-5T or LEA-4T (LEA-6T) easy migration
* Use reliable LCC package , making cost-
* Optional firmware upgrade
* With u-blox 's Android GPS solution is compatible with
* Based on high quality AEC-Q100 GPS chip
* Production processes comply with ISO / TS 16949 certification requirements
* Quality testing processes comply with ISO 16750 standards

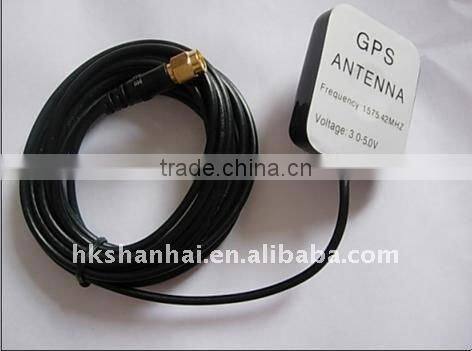

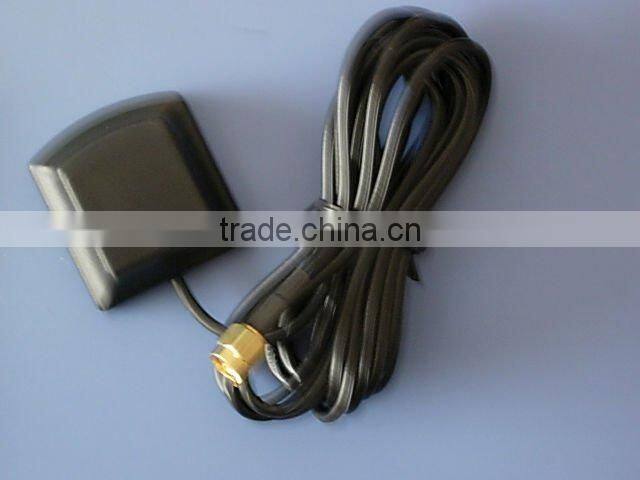

GPS Antenna
UBLOX Serial products Inquiry Email:Sales6 at hkshanhai dot com online tool:hkshanhai3 | |
LEA Serial |

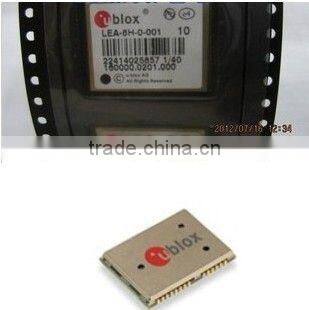

LEA-6H,LEA-6s,LEA-6R,LEA-6R. |
NEO Serial |
NEO-6M, NEO-6P, NEO-7M, NEO-7N. |
MAX Serial |
MAX-6Q, MAX-7C, MAX-7Q. |
Fastrax |
UP501, UC530M. |
GSM/GPRS |
LEON-G100.SARA-G350. |
SIMCOM |
SIM900, SIM900A, SIM900B, SIM900C, SIM900D, SIM908/C. |
If you need more information, please contact me ASAP, We are expecting to talk with you!
