Competitive price wireless fingerprint scanner biometric reader module
wireless fingerprint module
Item Introduction:
| UART Fingerprint Reader is a dedicated secondary development of integrated application of new fingerprint development module, high speed, fast identification, high stability. |
| UART Fingerprint Reader module STM32F205 high-speed digital processor core, combined with commercial fingerprint algorithm, high-precision optical sensor, and has a fingerprint input, image processing, feature extraction, template generation, template storage, fingerprint matching and intelligent search functions modules; providing UART interface and communication protocols, specifically for scientific research, application integration vendors to provide a standard secondary development of fingerprint kit, quick and easy integration of applications! |
Product Features:
Fingerprint sensor sensitivity, recognition speed:
High-precision wireless fingerprint module and imaging components, when used, only a little finger, you can quickly identify.
Stability first:
STM32F205 using ST's advanced digital processing chip as the processor, low power consumption, fast and stable, at least 30% higher than the chip stable homemade chips and other platforms.
Scientific structure:
Using sub-structure, fingerprint sensor + motherboard + algorithm processing platform three structures, stability of the motherboard;
16P using standard universal interface; sensor can choose and replacement optics, semiconductor sensors;
Commercial use of algorithms, fast.
Facilitate the development of:
Serial UART operation (directly connected to any microcontroller with a serial port), simple operation, and with the PC demo, learning software, related tools and SCM routines.
Open:
You can freely input and output fingerprint images, fingerprint files and various fingerprint eigenvalues operation agreement more whole, more open.
Applications:
| *Fingerprint Product Development |
| *Development of fingerprint lock, fingerprint safe, fingerprint access control, fingerprint attendance |
| *Fingerprint integrated applications |
| *Develop lock, incorporated into a variety of security products, such as intercom, switches, personnel |
| *identification, rights management |
|
Specifications
| |
Category |
parameter |
Processor (CPU) |
STM32F205 |
High-definition o |
ptical sensor |
Memory chip storage |
(expandable memory) |
1 million times |
the intensity of anti-wear |
Antistatic index |
150KV |
Fingerprint |
capacity 1000 |
False Accept Rate |
<0.001% (security level 5) |
FRR |
<0.1% (security level 5) |
Current |
<50ma |
Enter the time |
|
Over time |
|
Than on the way |
1: 1 1: N |
Security Level |
1-10 grade (can be customized) |
Output formats are three: |
the user number, images, eigenvalues |
Eigenvalues size |
196 bytes |
Eigenvalues template |
size of 512 bytes |
ISO19794-2 |
template rules |
Communication interface |
UART interface / RS232 |
Baud rate |
9600-57600bps |
Power supply serial interface, |
external power supply |
Power |
3.3-7.5V |
Board Size |
40 * 58 * 8mm |
Operating temperature |
-20 ° C to 60 ° C |
Relative humidity |
40% RH-85% RH |
¦Product Details Photos¦

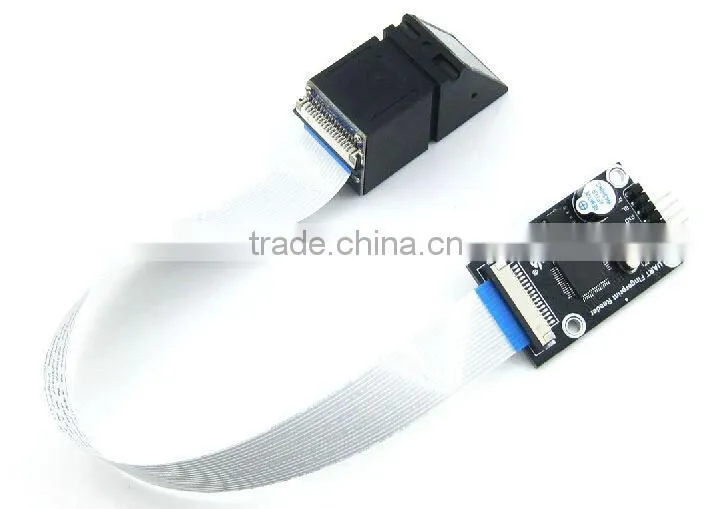

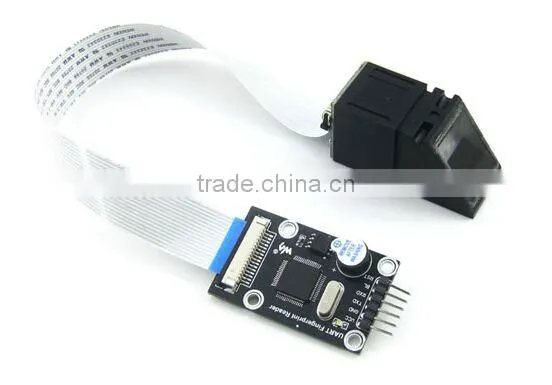

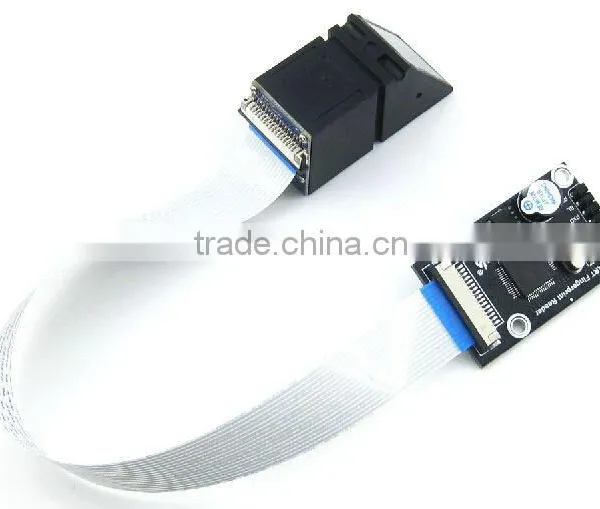

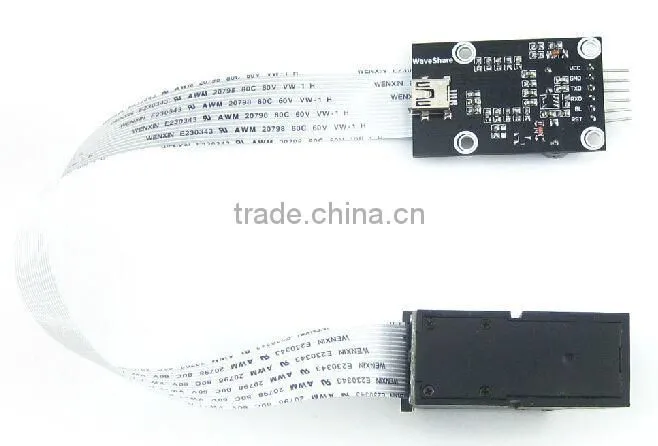

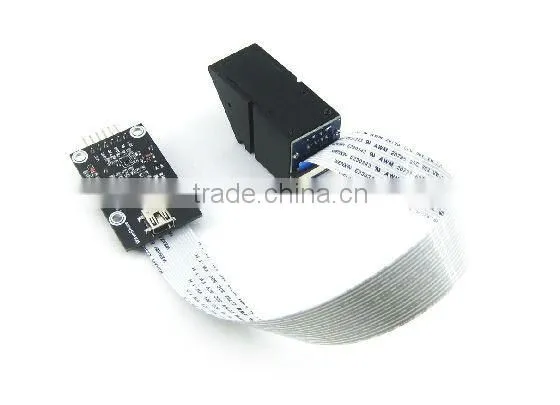

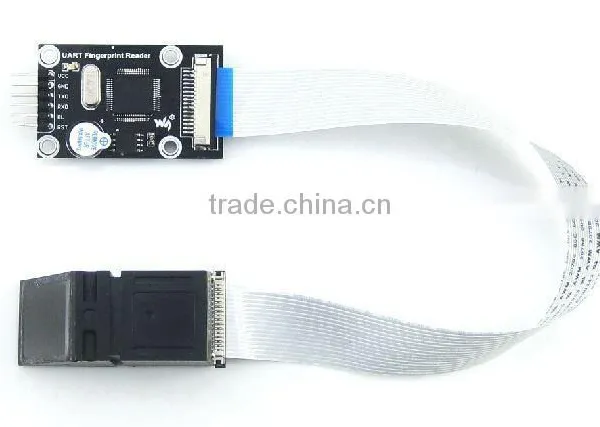

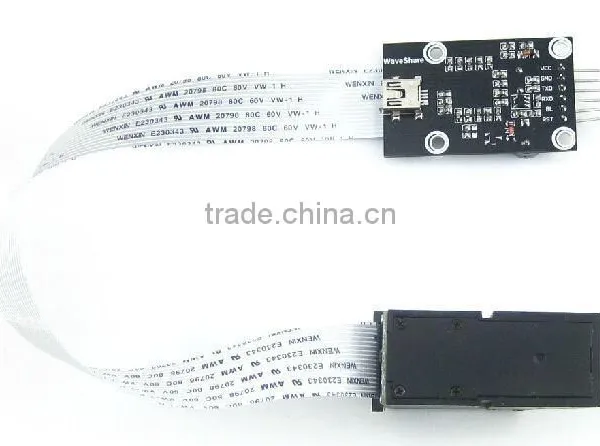

Multi-Angles Display:
|
|
|
|
|
|
|
Note: If you are satisfied with our product , please" send " the inquiry to us without hesitation now. We will give you a compeititive price and best service to you.
