Unlock Cdma Usb Modem

Specifications

unlock cdma usb modem

quick detail:

Compact "Plug And Play" Quad band GSM modems can be directly connected to the serial port of a desktop or notebook computer through the RS232 interface. A standard SIM card can be inserted in the integral card-holder within the metal enclosure.

The modems' metal casing makes it an appropriate solution for tough industrial applications such as Telemetry.

Packing List

(1) GSM Quad Band Modem, GPRS Class 10

(2) ANT Antenna with flying lead and connector

(3) RS232 Cable Interface to PC

(4) DIN Rail Mount Bracket

(5)Power Supply (12Vdc to 110-240Vac)

Warranty and after-sales service

One year warranty and lifelong maintenance.

In the warranty period, all because of the quality of products has caused the damage or failure of equipment, suppliers

responsible for the free repair or replace a new equipment to you.

Functions of different modules

Main Features:

• EGSM 900/1800MHz
• Supports voice / data / fax / SMS (text and PDU modes) / GPRS class 10
• OpenAT capable for embedded applications
• Optional TCP/IP stack permitting direct UDP/TCP connectivity and POP3/SMTP/FTP services
• 3V SIM Interface
• 15/9 pin connector for voice and RS-232 serial interface
• Fully type-approved
• Serial port shutdown power saving feature
• Two general-purpose input/output pins built into Molex power connector
• Compatible with all laptops and PCs installed with Win 98SE / 2000 / ME / XP, Linux and Mac Os

Details:

• Band: Dual-band EGSM900/1800 MHz
• Dimensions: 2.6x7.4x6
• Input Voltage: 5.5 to 32v DC
• Power Supply: 14mA in idle mode with no RS232 communication @ 5.5VDC, 31mA in idle mode with active RS232 communication at 5.5VDC.

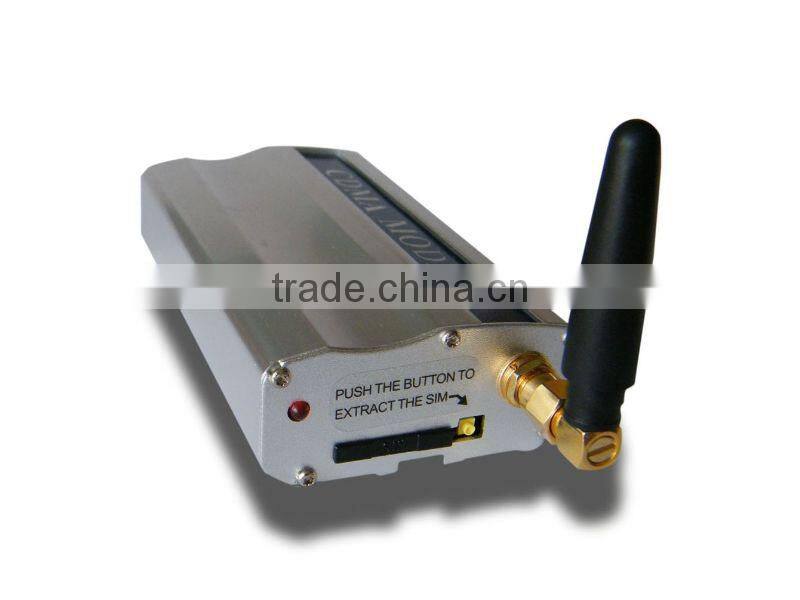

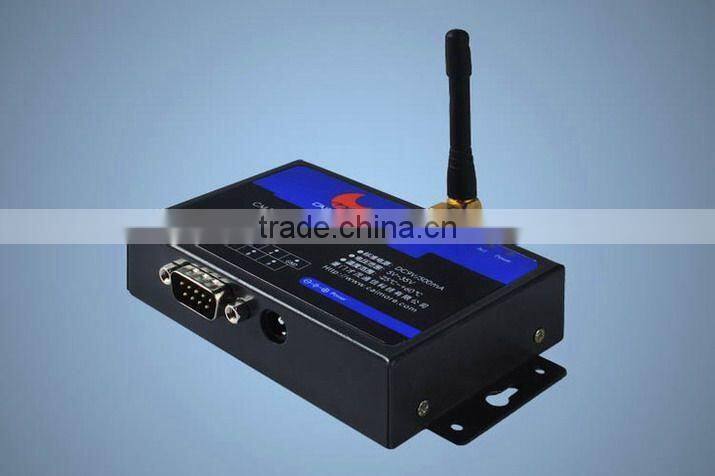

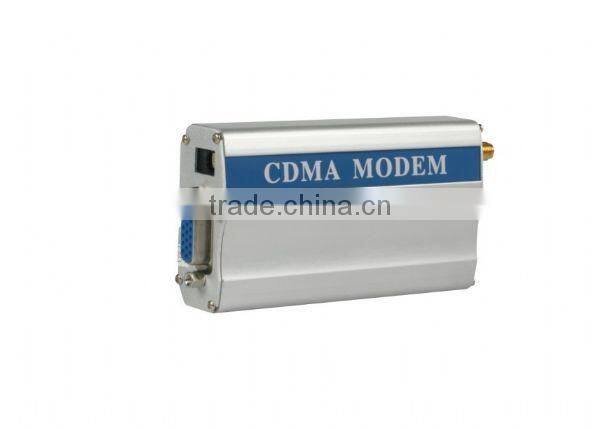

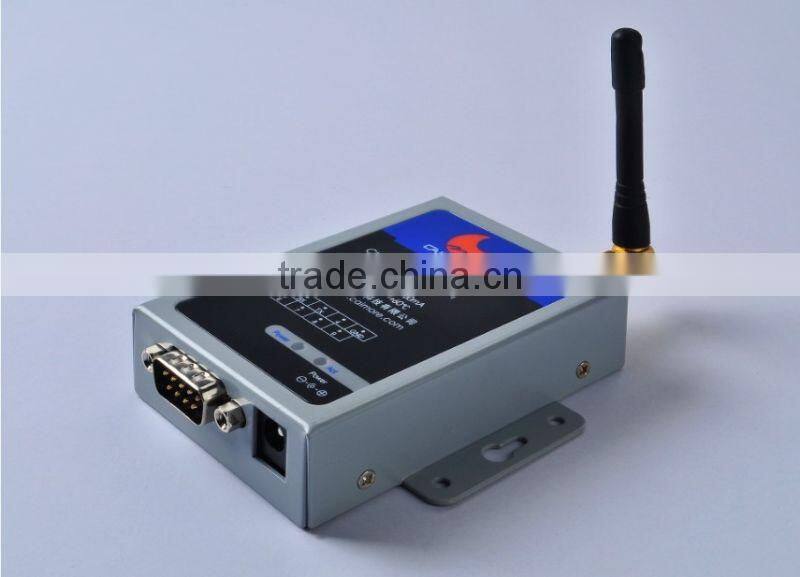

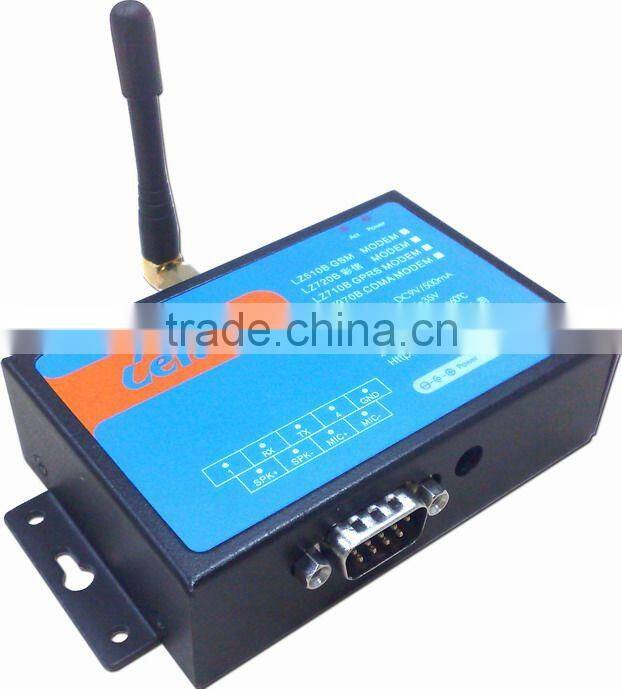

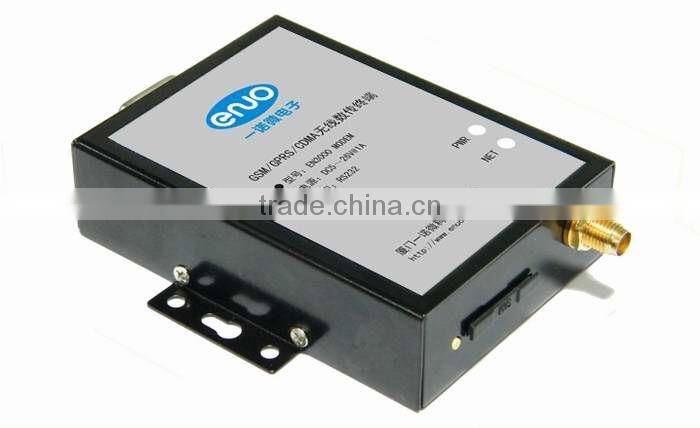

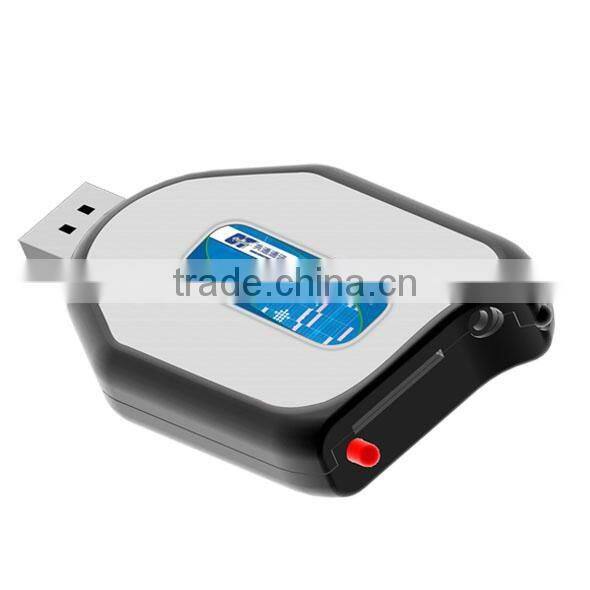

PICTURE:
