Sierra Wireless Mc8790v

Sierra Wireless Mc8790v photo-1
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sierra Wireless, Sierra
Model Number:
Mc8790v, MC8790
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Sierra Wireless, Sierra
Model Number Mc8790v, MC8790

Specifications

sierra wireless mc8790v
1.3G/HSUPA
2.Full 9 wire serial interface
3.EMConnect - TCP/IP PAD stack
4.Original&new

sierra wireless mc8790v






We supply all the products of the brands Sierra Wireless,Wavecom,Quake Global,Maestro Wireless Solutions,connectBlue,Hirschmann,Maxtena,NVS technologies AG,GTT Systems,Radiocrafts,

Globalstar Simplex. For more details,do please contact with me.

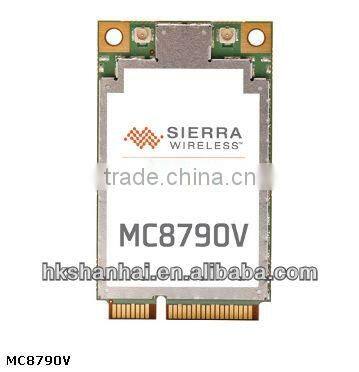

The powerful AirPrime MC8790V PCI Express Mini Cards cost effectively integrate into a variety of OEM devices to offer complete wireless solutions over 3G/HSUPA-capable UMTS networks. From point-of-sale devices to ruggedized laptops, the MC8790V will turn hardware devices into powerful communications tools with both voice and data services.

The MC8790V PCI Express Mini Card provides wide area wireless data access at speeds up to 7.2 Mbps downlink and up to 5.8 Mbps uplink. It offers UMTS/HSPA and quad-band GSM/GPRS/EDGE network access for roaming on high-speed networks worldwide. In addition, antenna diversity improves fringe performance on global HSPA networks using the 850, 1900, and 2100 MHz bands.

Key Features
  • 3G/HSUPA
  • Peak downlink speeds up to 7.2 Mbps and peak uplink speeds up to 5.8 Mbps
  • Full 9 wire serial interface
  • EMConnect - TCP/IP PAD stack
  • Upgradeable to Category 6 uplink
  • Uses MSM6290 chipset from QUALCOMM

















Operating Systems

Windows XP
Windows Vista
Windows 7
Windows CE 5.0
Linux
Proprietary OS

Operational Bands (MHz)

GSM 850
GSM 900
GSM 1800
GSM 1900
WCDMA 850
WCDMA 1900
WCDMA 2100
GPS 1575

Digital Inputs/Outputs

4 Programmanble GPIO

Communications Interfaces

Serial (UART) Interface
USB 2.0

Analogue Interfaces

Analog Input (ADC)

Audio Interfaces

Analog audio (2 MIC, 2 SPK), PCM audio interface

Cellular Radio

Quad Band GSM 850/900/1800/1900 MHz
Tri Band WCDMA 850/1900/2100 MHz

Cellular Data

UMTS with HSPA Category 8 (7.2 Mbps downlink)
HSUPA Category 5 (5.76 Mbps uplink)
EDGE/GPRS MS Class 12

RF Connector

UFL Socket (Main RF)
UFL Socket (Diversity/GPS)

System/IO Connector

52-Pin Edge Connector

Power Supply

Input Voltage Range: 3.0 ~ 3.6 V

Type Approval

A-Tick

Carrier Approvals

Telstra

Dimensions/Size

L: 51 mm, W: 30 mm, D: 4.5 mm
