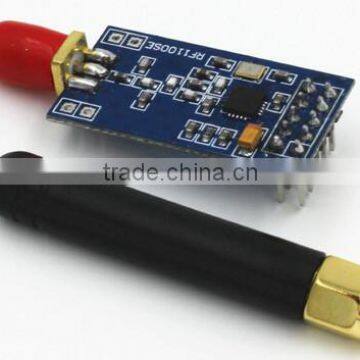

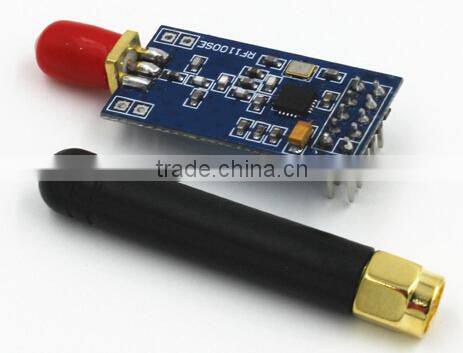

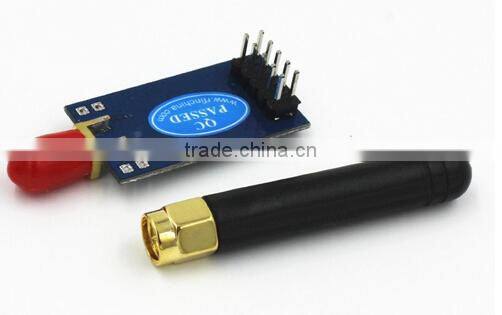

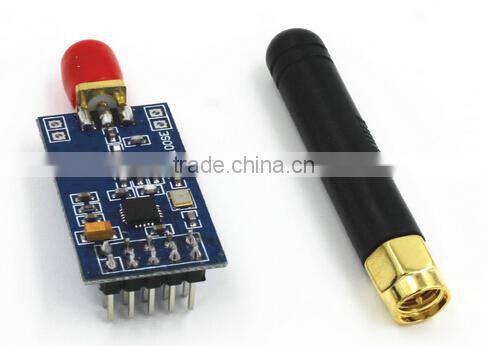

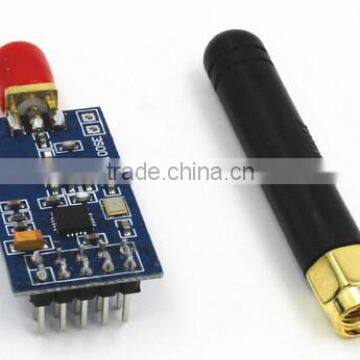

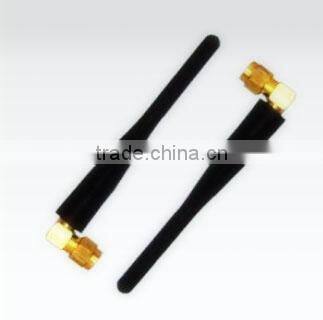

wholesales product wireless module 1.8-3.6v high gain 868mhz antenna
Continuous frequency band extension:
* CC1100: 400-464 MHz and 800-928 MHz;
* CC1101: 387-464 MHz and 779-928 MHz;

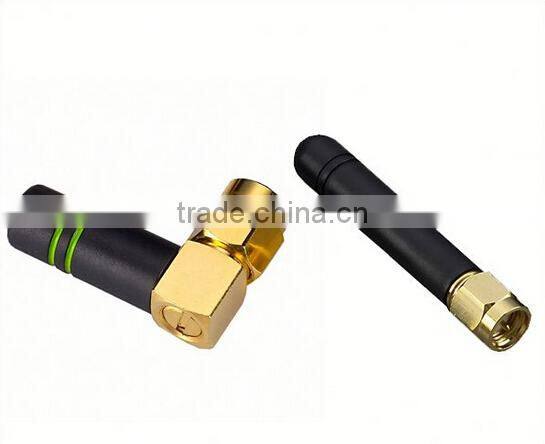

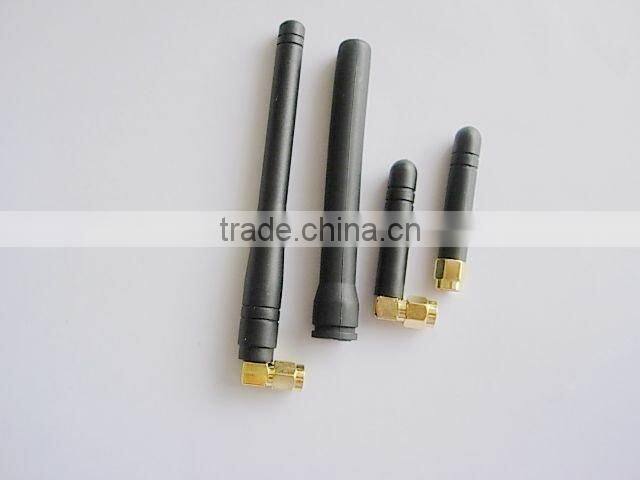

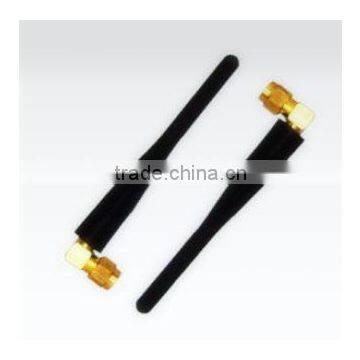

gsm antenna sma connector
Dielectric Antenna
Center Frequency:1575.42±3 MHz
V S W R:1.5:1
Band Width:+-5 MHz
Impendence:50Ω
Peak Gain:3dBic
Based on 7×7cm ground plane
Gain Coverage:4dBic
Polarization:RHCP
LNA/Filter
LNA Gain Without cable:28dB Typical
Noise Figure:1.5dB
Filter Out Band Attenuation:1575.42MHz/
7dB Min f0+/-20MHz;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
V S W R:2.0
DC Voltage:3V-5C
DC current:5mA,10mA,Max

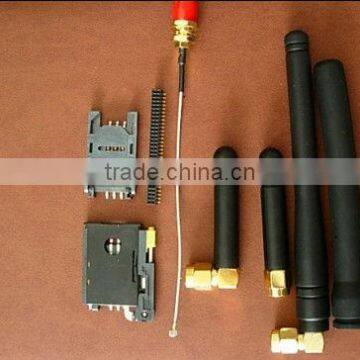

Related Pictures:
Mechanical
Size:48.5mm x 37mm x 15mm
Cable:RG174 5M
Connector:SMA,MCX,MMCX, SMB or other
Mounting:Magnetic base/sticking
Housing:Black
Environmental
Working Temp:40degree C~+85degree C
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
We can customize for you any kinds of antenna,please contact me and send your requirement,thank you!

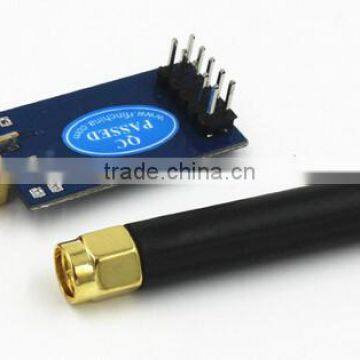

Basic Features:
1. Working voltage :1.8-3.6V
2. Operating frequency:(Module:387-464MHZ)
3. Instantaneous maximum working current: <30mA;
4. Maximum transmit power: 10mW (+10dBm);
5. 315/433/868/915MHZ ISM band;
6. Support 2-FSK, GFSK and MSK modulation;
7. Receiver sensitivity -110dBm at 1200 baud;
8. Minimum operating speed 1.2kbps, the highest 500kbps;
9. Separate 64-byte RX and TX data FIFO buffer;
10. Built-in hardware CRC error detection ensures reliable data transmission; 11. Support RSSI signal strength detection and carrier sense function;
12. Low power consumption;
13. Mailing Address (256) Operating frequency can be programmed via SPI;
14. Programmable output power, for all the support frequencies up to +10 dBm; 15. WOR feature can be set to standby, the proportion receiving state timer switch time to reduce power consumption;
16. Fast frequency synthesizer with proper frequency hopping system.
