Specifications
corrugated roof sheet making machine SY8-150,hydraulic motor,strong pressure,can make many size tile,concrol with plc,4000pcsSY8-150 color concrete tile machine
1.SMY8-150 Color concrete tile making machine breif introduction
1)SMY8-150 Color tile making machine adopts PLC controlling system,full-hydraulic press and pneumatic to shape.Shaping quickly and dependable parameter ,high productivity,high quality and competitive price.Adopts pressing and filtrating concrete to shape.Having various kinds of finished product types and beauty in structure,high density and strength,precision size,can satisfy all requirements of the construction.

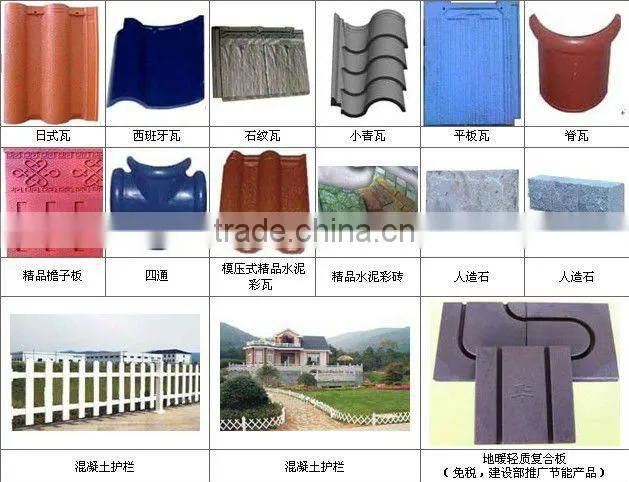

2)SY8-150 Color tile making machine serves several purposes and produces all kinds of main tile,ridge tile,cornice tile,slot tile and so on through changing molds.
2.SY8-150 Color tile making machine screw conveyor main technical parameters
3.SY8-150 Color tile making machine main technical parameter :
Productivity |
3500pcs/day |
Building area |
150 |
Care area |
60 |
Power |
18KW |
Specification |
424*337mm |
Pressure |
1200KN |
Electric voltage |
380V |
Dimension |
3100×1600×2600mm |
Weight |
5000kg |

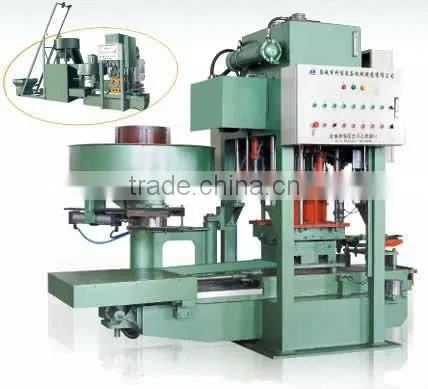

4.SY8-150 Color tile making machine pictures
| Technical parameter | SMY8-150 |
| screw diameter(mm) | 219 |
| conveying length (m) | 69 |
| screw speed (r/min) | 209 |
| Out diameter (mm) | 273 |
| working angle | ≤45° |
| transport capacity(t/h) | 50 |
| motor model | Y160M-4 |
| motor power (kw) | 7.5KW |
