Help CenterElectric Prestressed Concrete Pole Making Machine Price Machine for Concrete Pole
Related Products
-
SY1-10 Automatic Clay Interlocking Brick Machine Price for SaleNegotiableMOQ: 1 Set -
Bamboo Pallets for Concrete Brick Making MachineNegotiableMOQ: 300 Pieces
-
Shengya Tiger Stone Machine Automatic Paver Laying Machine Price for SaleNegotiableMOQ: 1 Set
-
QMJ2-45 Hollow Mobile Brick MachineUS$ 1,000 - 1,200MOQ: 1 Set
-
PLD800 CONCRETE BATCHING PLANTNegotiableMOQ: 1 Piece
Specifications
Electric prestressed concrete pole making machine price1)Length: 6m-18m
2)Top diameter: 150mm-230mm/by buyer
3)Taper: 1:75

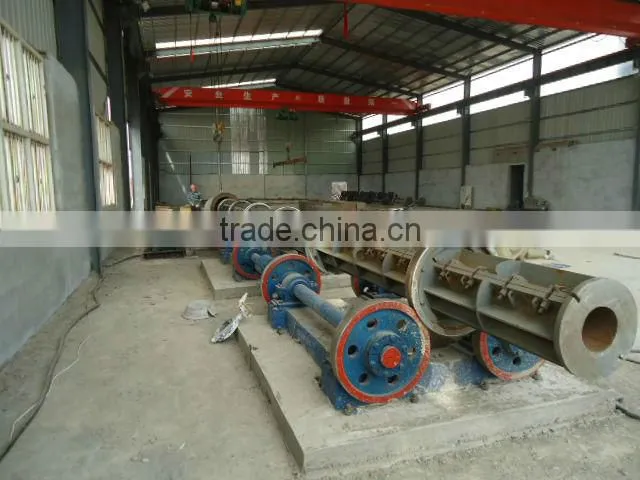

Pre-stressed Concrete Spun Pole Spinning Machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.
Pre-stressed Concrete Spun Pole Spinning Machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.
The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.
Working Principle:

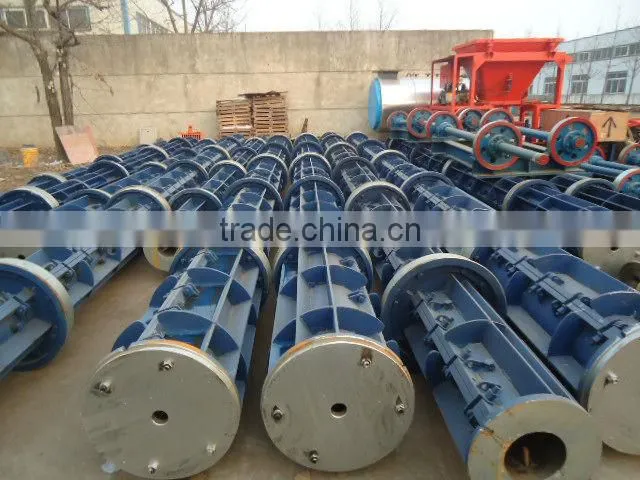

1. This spun pile steel mould shall operate together with pile spinning machine.
2. This mould forms pile under the force of centrifugal. There are longitude stiffeners and latitude stiffeners on the mould surface.
3. The mould rotates in high speed under the motor driven. The redundant water in the slurry is released by the force of centrifugal, and the concrete is dense and high in strength. And the spun pile is formed around the inner wall of the mould.
Technical Parameter:
top end inner diameter (mm) |
Tread (mm) |
Running wheel diameter (mm) |
Length (m) |
150 |
2000 |
600 |
7-12 |
170 |
2000 |
600 |
7-12 |
190 |
2000 |
650 |
7-15 |
230 |
2000 |
650 |
6-9 |
300 equal diameter |
2000 |
600 |
6-9 |
350 equal diameter |
2000 |
650 |
6-12 |
310 |
2000 |
650-780 |
6-15 |
Features:
1. This spun pile steel mould shall operate together with pile spinning machine.
2. This mould forms pile under the force of centrifugal. There are longitude stiffeners and latitude stiffeners on the mould surface.
3. The mould rotates in high speed under the motor driven. The redundant water in the slurry is released by the force of centrifugal, and the concrete is dense and high in strength. And the spun pile is formed around the inner wall of the mould.

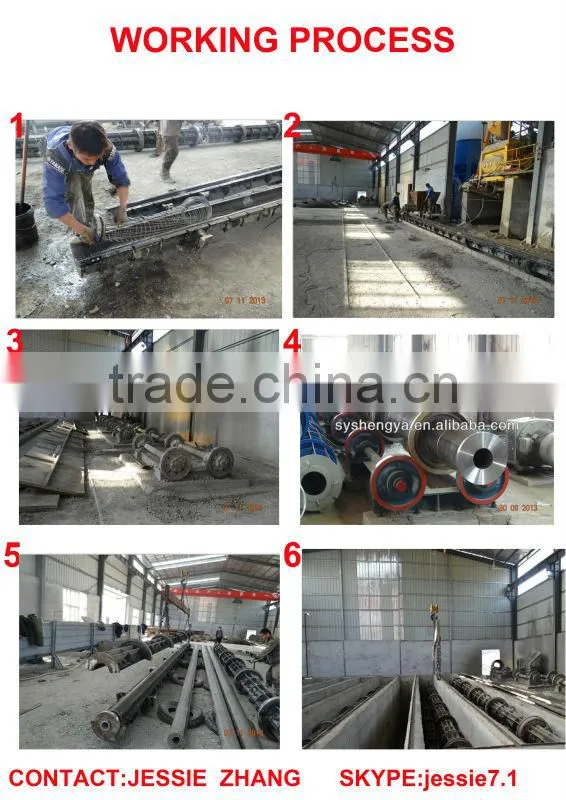

Working Process:
Picture showing :
Aftersale Services:
Selling is only the beginning of our service,
1, Our good after-sale service would provide our customer with both the technology and the skills.
2, Our overseas technicians would be there to help installation and teach the using method.
3, We could provide the manual brochure if needed.
4, We would provide professional help with plant building by providing the foundation drawing.
Our company:
YOUR ANY QUESTIONS WILL BE WARMLY WELCOME.
JESSIE ZHANG
0086 153 0539 9073
SKYPE:jessie7.1
