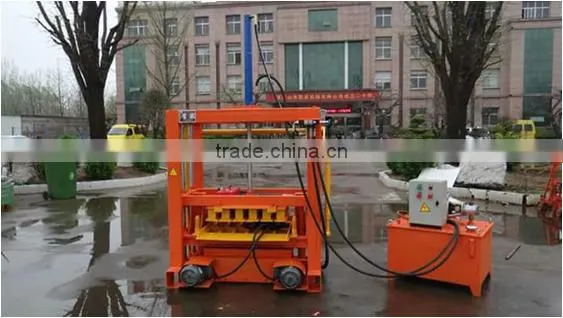

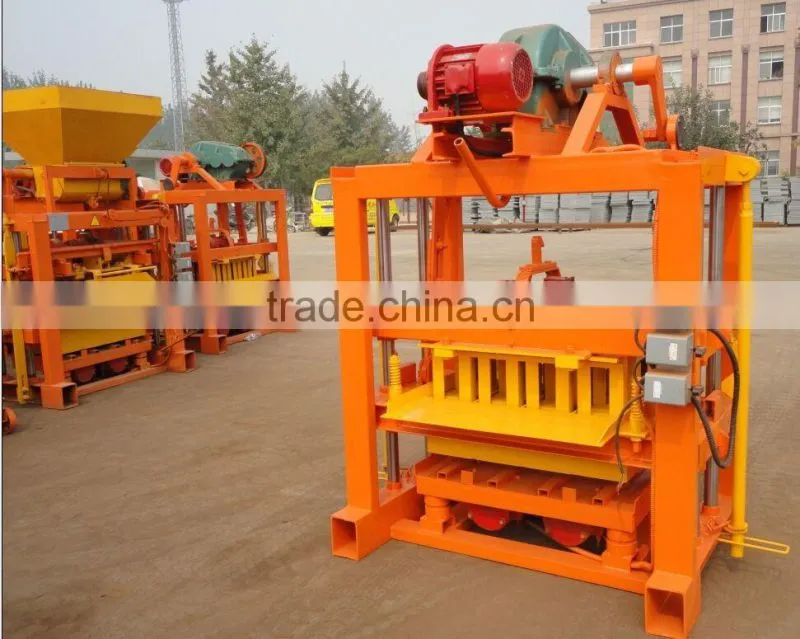

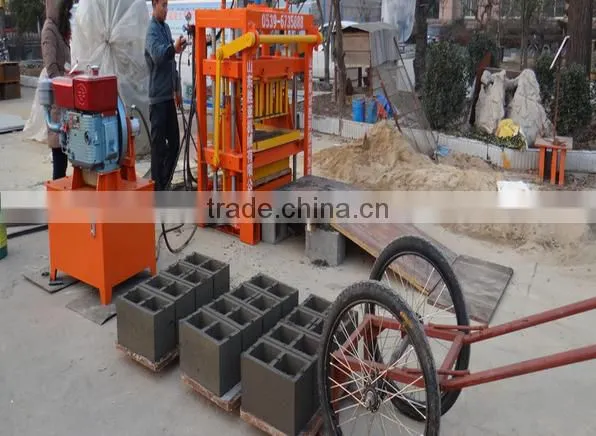

SHENGYA MACHINERY QTJ4-40 concrete block making machine
Brief Introduce of SHENGYA MACHINERY QTJ4-30 concrete block making machine,maquina de bloco de concreto
QTJ4-40-block making machine use the mechanical transmission, there are manual mixture into the island-me-forming. Their products look beautiful, clear edges and corners, the weight of products error of ± 3%, strength of it up to 10.5 ((MPa), error of it is10 percent,its geometry is<± 1.5.
Technical Specifications of SHENGYA MACHINERY QTJ4-30 concrete block making machine
Power |
9.6KW |
Cycle |
40S |
Overall Size |
1580X1100X2100mm |
Carriage Size |
850X470X30mm |
Electrical source |
380V/50Hz |
Vibration Frequency |
Max.3000r/m |
Total mass |
1500kg |
Standards |
JC/T920-2003 |
product quantity |
400*200*200 4pcs/mould 2880pcs/8h 400*150*200 5pcs/mould 3600pcs/8h 400*120*200 6pcs/mould 4320pcs/8h |
Other information:
1. Area: Workshop area: 30-50m2, all factory area 1000m2, the bigger, the better.
2. Workers : three or four.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.

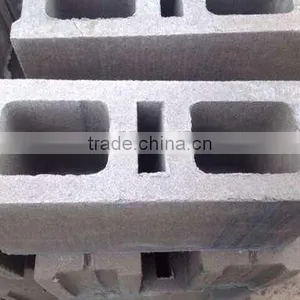

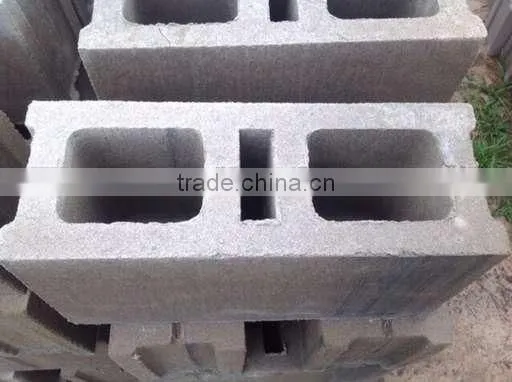

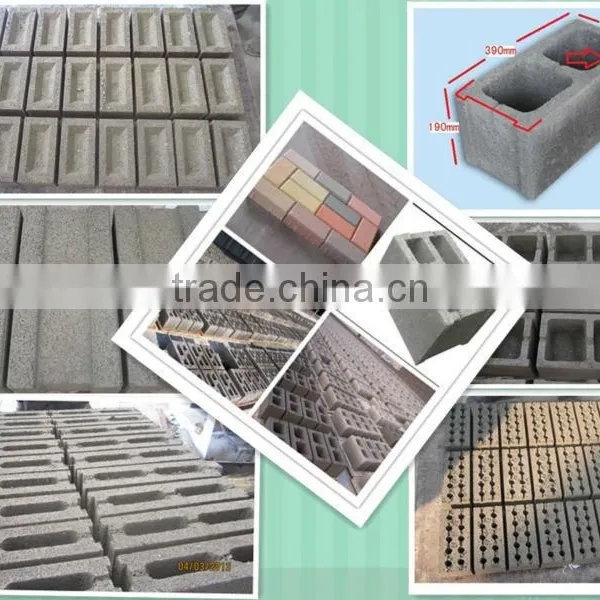

4.Hollow block weight:(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. Raw material consumption per day:30-40T
6. Water consumption per day:3%-5% of raw material Weight.

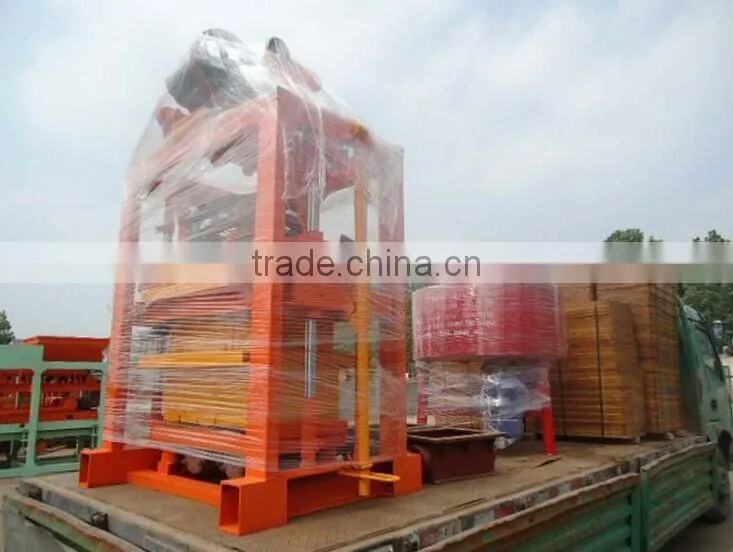

Packing: Iron Box or nude
Delivery Date: 15-20 days after confirming the down payment.
Shipping Method: By sea or as ur requirement
Shipping Port: Qingdao, China.
We have our long-term and reliable shipping company, which could guarantee to provide best freight service. However, if the customer required, we could use their own nominated shipping service.
Delivery:
You can choose to send your brick machines by LCL ( less than container) or whole container (20 GP or 40 GP).
We will arrange everything for you here in China, including packing, delivery, find forwarder, arrange shipping and so on.
You just need to pick up your brick machines when they arrived at your port; the newest information will be sent to you from time to time by us.
We provide considerate service
Inquiry service:
Accept inquiry of customers,confirmation of investment advice of choice of product ,assist the customers to design the workshop
In-sale service:
Sale of product,help customers build the base ,technical training of customers’ workers ,practice of operation ,help to install ,train the operators in the workshop.
After-sale service:
24 hours service of technology inquiry, instant components supply, regularly technical service guidance of maintain,long distance malfunction control.
Unique service:
System upgrade,special design according to the customers’ requirement, mould renew ,supply new technology and products information.
Our Commitment
1.Perfect 6*24hours services;
2.Professional training to your workers;
3.High efficiency brick production line;
4.Priority to become our agent in your city,we offer you our factory prices;
5.High profits from your bricks and blocks business.
Why choose us?
We are manufacturer:
Specialized in block machinery for over 20 years, we have rich expenrience and enjoy good reputation in China and foreign market.
Technology and Quality:
We adopt most advanced and reliable technology and use Siemens motors.
Our Price:
Providing our customers best qualified machine and most satisfied service with lowest price is our permanent goal.
Notes:
1. All kinds of mould can be designed according to customer's requirements.
2. All price are based on FOB, QINGDAO, China.
3. Payment: 30% as the down payment by T/T, 70% before delivery.
4. parameters mentioned here is only for reference, for they are updating all the time
5. Package: Nude packing or as required.
6. Warranty: All machines enjoy one year’s warranty, if you have any problems please feel free to contact us. We will try our best to make it.
FAQ
Q1: What is the Warranty for the machine?
A1: For the machine,we have 1 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What kinds of payment methods can be accept?
A2: Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery
Q3: Who will pay the delivery cost?
A3: customers need to pay delivery cost.
Q4:Who arrange shipping?
A4:We will arrange shipping for you if you don’t have special requirement
Q5: what's the motor voltage?
A4: Our local voltage is 380v, 3phase, 50HZ, motor voltage could be customized to fit your local voltage
Q6: Do you have Operation Instruction Manual
A4: Yes.We will send the Operation Instruction Manual to you after you purchase the machine.
Please feel free to contact with Iris for further business talk! Thank you!
Iris Chen: 0086 13316165676(WhatsApp&WeChat)
QQ: 843221453
