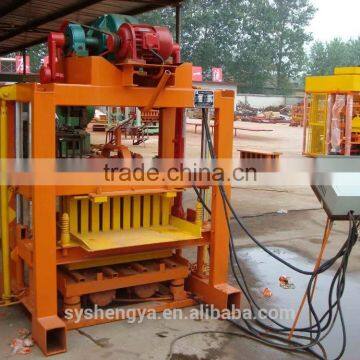

Help CenterShengya QTJ4-40 Block Making Machine for Sale in Africa Made in China
Related Products
-
Professional Manufactory QTJ4-26C Full Automatically With Pallet Feeding System Concrete Clay Block Making MachinesUS$ 7,407 - 12,350MOQ: 1 Set -
Professional Manufactory Shengya QTJ4-26C Semi Automatically Concrete Clay Block Making Machines China ProductUS$ 5,546 - 12,350MOQ: 1 Set
-
Professional Manufactory Shengya Newest Movable SY1-20 Baking-free Interlocking Brick Machine With Concrete Mixer China ProductUS$ 3,892 - 3,892MOQ: 1 Set
-
Professional Manufactory QMY10-15 Automatically Baking-free Concrete Mobile Machines China ProductUS$ 20,000 - 20,000MOQ: 1 Set
-
China New Foam Concrete Pump Machine LD-20 for CLCUS$ 1,600 - 9,300MOQ: 1 Set
Contact Person: Iris Chen
Sales Manager
Cell/Whatsapp: +86 13316165676
E-mail:brick11 at
Vedio Show in Youtube: https://youtu.be/v8966o0AnP8
qtj4-40 manual brick forming machine, have office in algeria, tanzania, kenya, algeria
Brief Introduce of QTJ4-40 manual brick forming machine
QTJ4-40-block making machine use the mechanical transmission, there are manual mixture into the island-me-forming. Their products look beautiful, clear edges and corners, the weight of products error of ± 3%, strength of it up to 10.5 ((MPa), error of it is10 percent,its geometry is<± 1.5.
Technical Specifications for QTJ4-40 manual brick forming machine
Power |
9.6KW |
Cycle |
40S |
Overall Size |
1580X1100X2100mm |
Carriage Size |
850X470X30mm |
Electrical source |
380V/50Hz |
Vibration Frequency |
Max.3000r/m |
Total mass |
1500kg |
Standards |
JC/T920-2003 |
product quantity |
400*200*200 4pcs/mould 2880pcs/8h 400*150*200 5pcs/mould 3600pcs/8h 400*120*200 6pcs/mould 4320pcs/8h |
other information:
1. Area: Workshop area: 30-50m2, all factory area 1000m2, the bigger, the better.
2. Workers : three or four.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.Hollow block weight:(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. Raw material consumption per day:30-40T
6. Water consumption per day:3%-5% of raw material Weight.
shengya QTJ4-40 manual brick forming machine

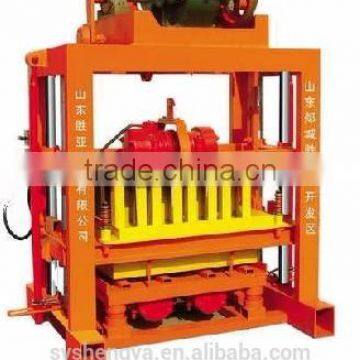

Details part show for shengya QTJ4-40 manual brick forming machine

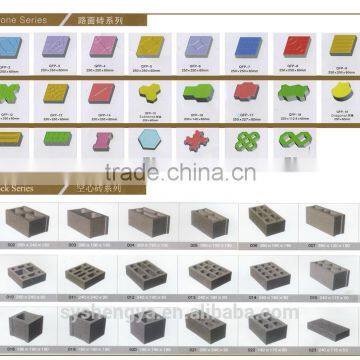

Block/Brick Sample for Customer Choice:
Packing:Nude or Iron Box
Delivery Time:30 days after the receipt of the down payment
Shipping Port: Qingdao, China
We have our longterm and reliable freight forwarder, which could guarantee to provide our customer with best service, but we could also use the clien's nominated freight agent as required.

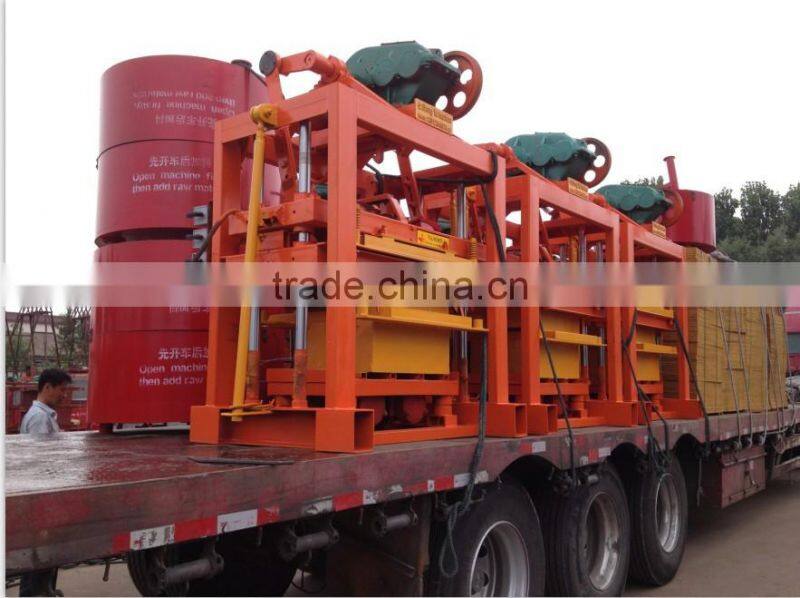

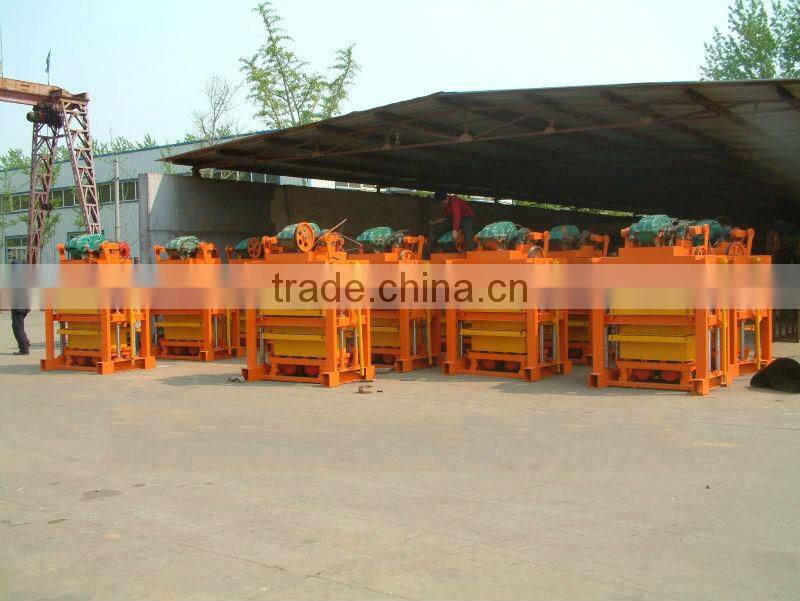

Shengya Block machine go to world:

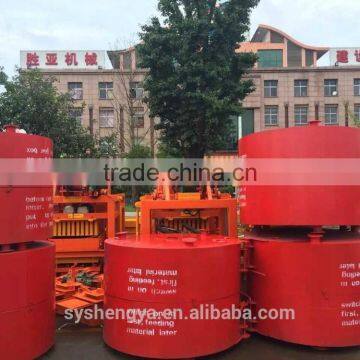

Foreign Customers Visit to our Shengya Factory

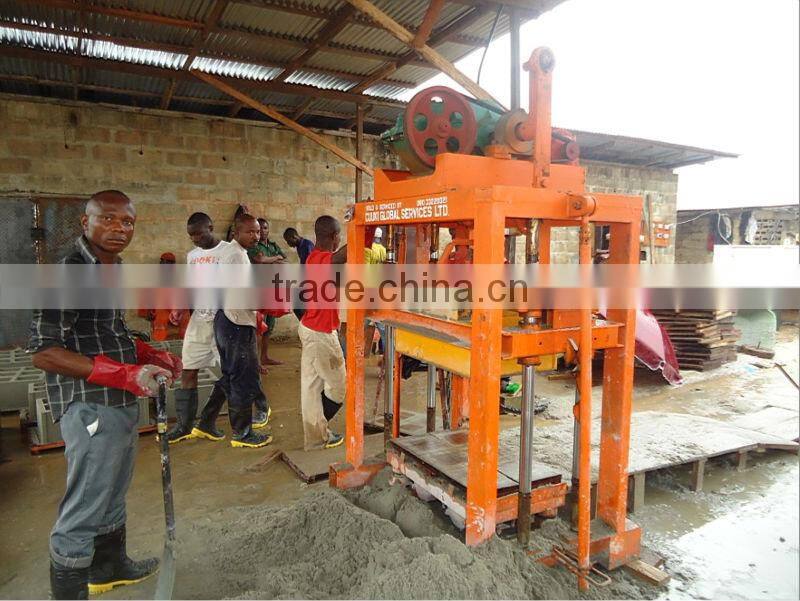

Best and ultimate After Sales Service in Africa
Please feel free to contact me any time for more information about our block machinery and our company
IRIS CHEN 008613316165676
1. Welcome to visit our factory if you would like! we can arrange everything for you. For example,boarding, lodging arrangements,etc. |
2. Our factory of Shuangli is located in Shengli Development Zone,Tancheng county,Linyi City,Shandong Province,China |
3. The nearest airport is Jinan Airport, (ICAO: ZSJN) |
4. If you need the invitation letter of this visit, we can send you free invitation of our company. |
