Help CenterQT4-20 Automatic Interlocking Block Making Machine for Concrete Block
Related Products
-
QT4-20 Automatic Unfired Fly Ash/cement Block Machine for SudanNegotiableMOQ: 1 Set -
Tiger Stone Machine Paving Machine in Agrentina ZimbabweNegotiableMOQ: 1 Set
-
China Best Selling QT5-20 Semi Automatic Price Concrete Block Machine for GhanaNegotiableMOQ: 1 Set
-
QT5-20 Paver Block Machine Hollow Concrete Block Machine for Fly Ash CinderNegotiableMOQ: 1 Set
-
Hot Sale QT4-20 Hydraulic Paving Block Making Machine for BuildingsNegotiableMOQ: 1 Set
interlocking block making machine for concrete block
Sales Manager:Bobby Zhang
Mobile&Whatsapp:0086 15305399011 Skype:bingyubobo
Email: brick4 at
1.Capacity table of QT4-20 semi automatic hydraulic brick machine
Brick kind |
Brick size |
Pcs/mold |
Mouding cycle |
Pcs/hour |
Pcs/day |
Hollow brick |
400*200*200 |
4pcs |
20-25s |
720pcs |
7200pcs/day |
Porous brick |
240*115*90 |
14pcs |
20-23s |
2500pcs |
25000pcs/day |
Standard brick |
240*115*53 |
28pcs |
20-15s |
5000pcs |
50000pcs/day |
2.Main Technical Parameters of QT4-20 semi automatic hydraulic brick machine
Main Technical Specifications | |
Dimension |
7100*1600*2610mm |
Rated pressure |
16MPa |
Main vibration |
platform |
Vibration frequency |
4600r /min |
Pallet Size |
1020*570*25mm |
Molding Cycle |
20-25(s) |
Overall Power |
27.5kw |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields |
widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
3.Pictures show:

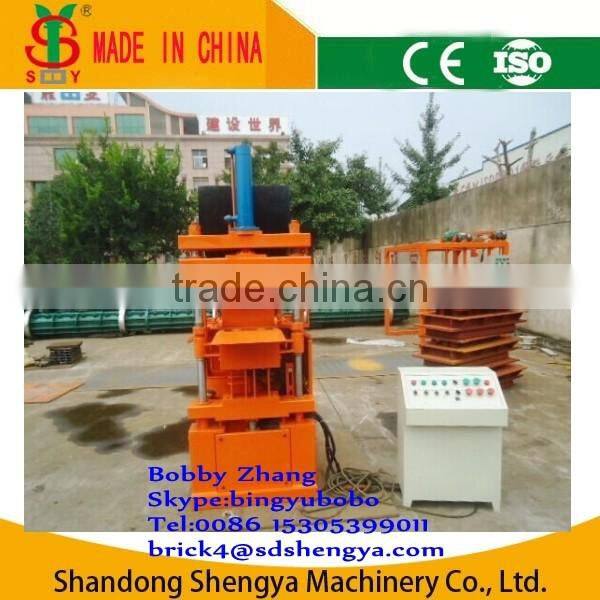

(1)QT4-20 semi automatic brick machine
(2)Moulds
(3)Block types
(4) Concrete mixer for QT4-20 full automatic brick machine
(5)Certificates
(6)Customers from all over the world

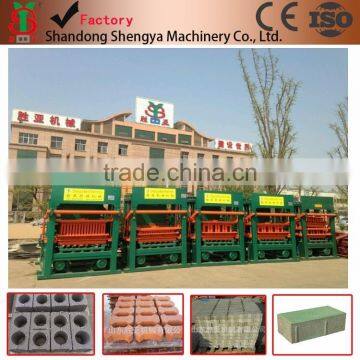

(7)About our factory
4.Company information
Shandong Shengya Machinery Co.,LTD. was founded in 1995, We have been always working for theconcrete block machines and mixers design, production and sales. For many years we have to perfect the quality, export block machines to more than 90 countries and regions, and also have office inNigeria, Tanzania&Algeria&Kenya&Ethiopia&Congo and Cameroon now, then can serve the clients much better.
5. Our Services
Quality Guarantee
Our professional engineer would test machine carefully before loading,so please rest assure.
Selling is only the beginning of our service
1.our good aftersale service would provide our customer with both the technology and the skills.
2.our overseas technicians would be there to help installation and teach the using method.
3.we could provide the manual brochure if needed.
6.The reasons why choose us
(1)We offer different types of block machines, small, semi-automatic and fully automatic. And make all kinds of size of moulds according to customer requirements.
(2) We have about 200 workers,50 sales manager and 10 professional designers of 20 years experience.
(3)Exported to more than 70 countries in the world, setting branch office in Nigeria&Tanzania&Algeria&
Kenya&Ethiopia&Congo and Cameroon.
7. Our other type related hollow block machines
8.Warmly welcome to visit our factory.Shengya is ur best choice!
