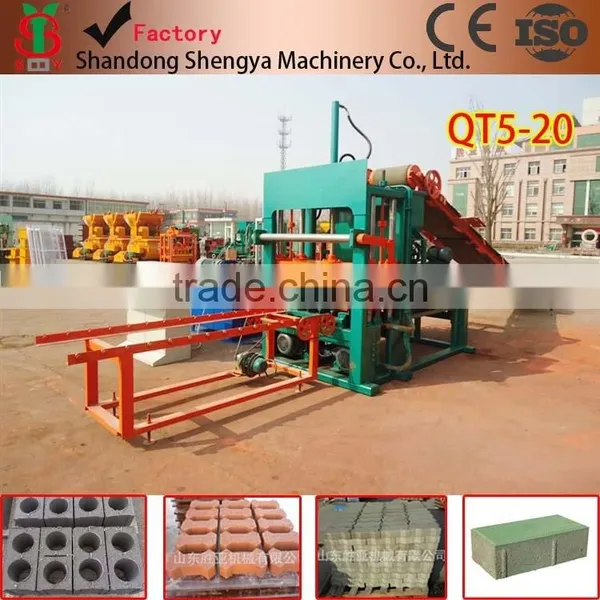

Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20

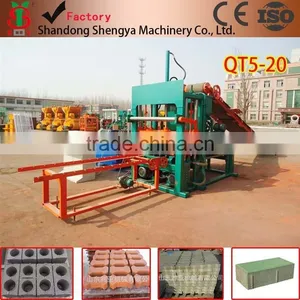

Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20 thumbnail-1
Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20 thumbnail-2
Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20 thumbnail-3
Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20 thumbnail-4
Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20 thumbnail-5

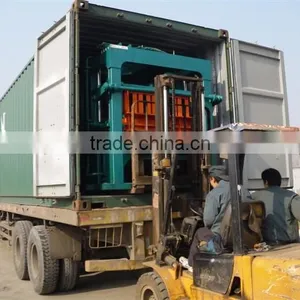

Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20 thumbnail-6
Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20 photo-1
Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20 photo-2
Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20 photo-3
Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20 photo-4
Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20 photo-5

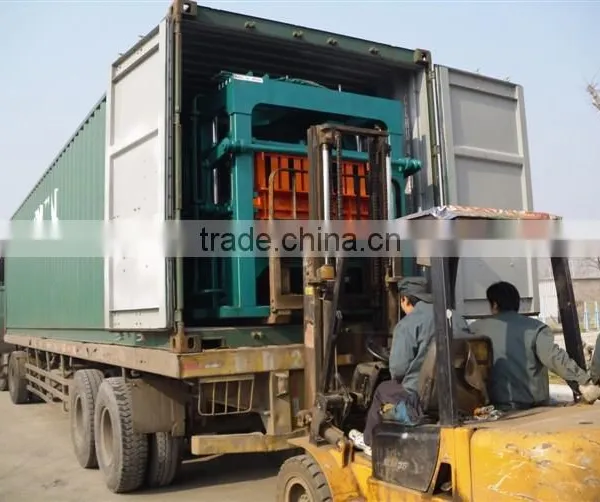

Low Cost With High Capacity Fully Automatic Brick Production Line QT5-20 photo-6
US$ 13,000 - 18,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Contact Supplier Request Quote Chat Now
Shandong Shengya Machinery Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 50,000-400,000
Place of Origin Shandong, China
Brand Name Shengya
Model Number QT5-20
Voltage 380V
Power 340KW
Dimension(L*W*H) 4500x1520x2900mm
Certification CE/SGS/ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Low cost with high capacity fully automatic brick production line QT5-20

Contact:Nicole Yau

Tel:+0086-18816786369(whatsapp)

QQ&Wechat:458317491

Skype:nicole31795

E-mail:brick23 at

INTRODUCE of Low cost with high capacity fully automatic brick production line QT5-20:

 QT5-20 Block Machine is one of the newest styles of concrete block shapig machine of our company.

(1)  Advanced hydraulic system and electro-hydraulic integration system is adopted,It is simple in operating and reliable in running

(2)  The material distributing system equipped with multirow of stirring forks ,can quickly and evenly discharge the material into the moulding box.

(3)  The integration of hydraulic system and vibrating make the brick shaping more quickly and the density of brick is strengthened .

 (4)  The machine can also produce different sizes of blocks with different moulds.



IMPORTANT TECHNICAL DATA of Low cost with high capacity fully automatic brick production line QT5-20:



Standard block

 390x190x190 Hollow block

Number of each mould



32 pcs

5 pcs

Moulding cycle



20 S

20-25 S

Designed capacity per hour



5760 pcs

2880 pcs

Vibrator force (KN)



50 KN

 50 KN

Vibration frequency



4500 r/m

4500r/m

Amplitude (MM)



15

15

Number of operators



8

8

Pressure



21 Mpa (≈10 T)

21 Mpa

Total weight



3.5 T

3.5 T

Dimensions



4500x1520x2900mm

4500x1520x2900mm

Pallet size



1100x550x25 (adjustable)mm

1100x550x25 (adjustable)mm



BLOCK MACHINE PRODUCE PROCESS of Low cost with high capacity fully automatic brick production line QT5-20:

Low cost with high capacity fully automatic brick production line QT5-20

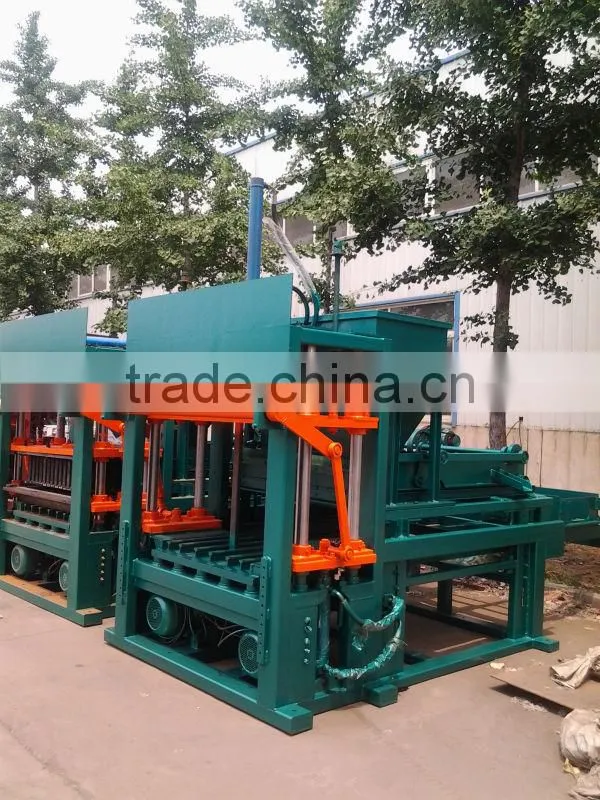

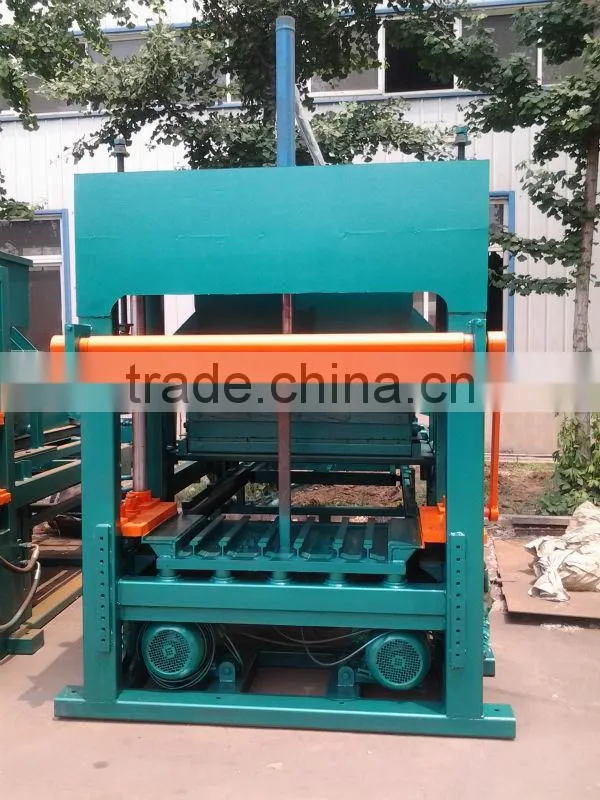

Picture show of Low cost with high capacity fully automatic brick production line QT5-20 :

Low cost with high capacity fully automatic brick production line QT5-20

 Low cost with high capacity fully automatic brick production line QT5-20       Low cost with high capacity fully automatic brick production line QT5-20Low cost with high capacity fully automatic brick production line QT5-20 Low cost with high capacity fully automatic brick production line QT5-20

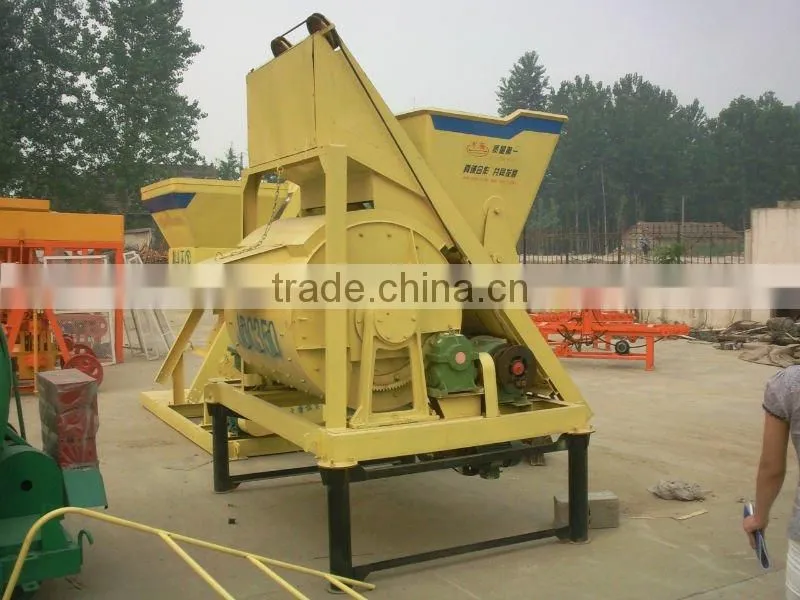

JDC350 MIXER with Low cost with high capacity fully automatic brick production line QT5-20:

Low cost with high capacity fully automatic brick production line QT5-20  Low cost with high capacity fully automatic brick production line QT5-20



BlOCK RECEIVER MACHINE with Low cost with high capacity fully automatic brick production line QT5-20:

Low cost with high capacity fully automatic brick production line QT5-20



HYDRAULIC STATION&CONTROLLER TABLE of Low cost with high capacity fully automatic brick production line QT5-20:

Low cost with high capacity fully automatic brick production line QT5-20     Low cost with high capacity fully automatic brick production line QT5-20



BARROW of Low cost with high capacity fully automatic brick production line QT5-20:

Low cost with high capacity fully automatic brick production line QT5-20 Low cost with high capacity fully automatic brick production line QT5-20



MOULD of Low cost with high capacity fully automatic brick production line QT5-20:

  Low cost with high capacity fully automatic brick production line QT5-20



Please feel free to contact Nicole Yau for further business talk

Contact:Nicole Yau

Tel:+0086-18816786369(whatsapp)

QQ&Wechat:458317491

Skype:nicole31795

E-mail:brick23 at
