China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine
Machine operation video:
/watch?v=i4qqreHno-k
7 reasons to choose it:
1, High technology used. Completely controlled by PLC system,and by operating the computer interface, random signal analysis, fault diagnosis, and parameter setting-up would be easily achieved.
2, Electro-hydraulic proportional valve is used in its vibrating system. the material-feeding with low frequency and the shape-vibrating with high frequency have been achieved.
3, Low error margin. The Board support devices on the vibration table is installed. And its low 1-1.55mm than the vibration table. When the vibration box drop ,the Board support devices will stand the pallets so that will reduce the pressing of vibration box and increase the vibration force .To build a higher density of block and also will control the higher of the products. Within the error of 1mm.
4, Its rake feeding system mounter with multirow of stirring forkscan quickly and evenly discharge the materials into the moulding box.
5, By changing different moulds ,all kinds of blocks, standard bricks, cellular bricks, grass planting titles ,decoration bricks, pavement bricks ect. can be manufactured,
6, High productivity. With an annual production capacity of 70.000 cubic meters.
specifications of China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine
| Total Power | 36.65KW |
| Cycle | 15 |
| Overall Size | 4900X2000X2580mm |
| Carriage Size | 900X850X30mm |
| Vibrations frequency | 45-75HZ |
| product quantity |
400*200*200 8pcs/mould 15360pcs/8h 400*150*200 10pcs/mould 19200pcs/8h |

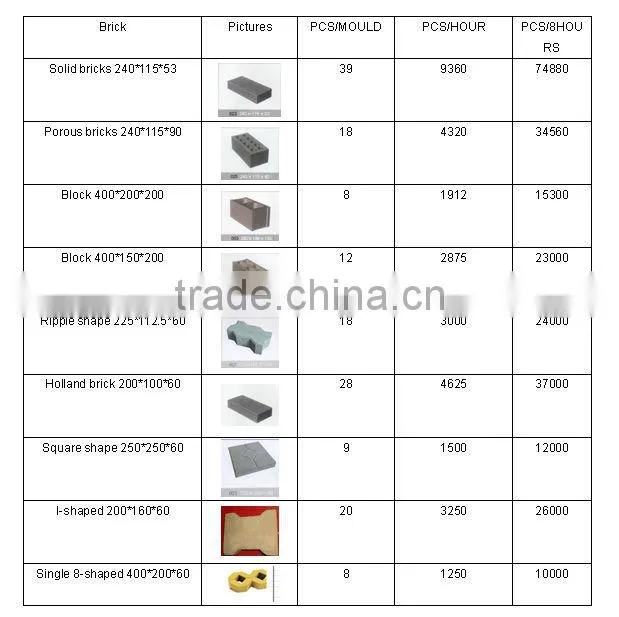

Capacity of China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine
Other information of China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : five or six
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5. raw material consumption per day:220-230T
6. water consumption per day:3%-5% of raw material .Weight.

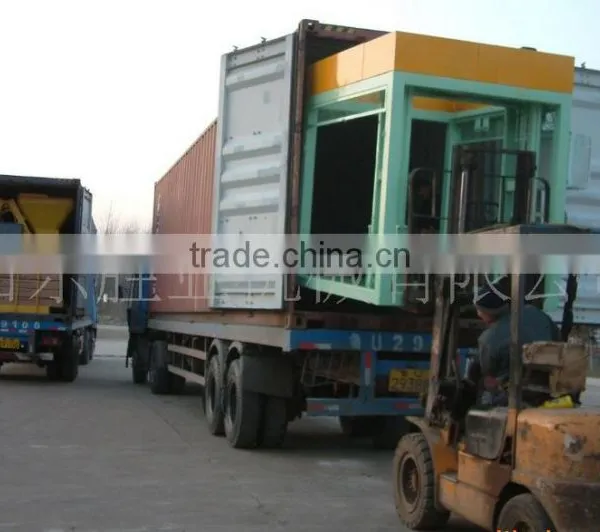

Packing & Shipping of China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine
Packing:Nude or Iron Box
Delivery Time:30 days after the receipt of the down payment
Shipping Port: Qingdao, China
We have our long-term and reliable freight forwarder, which could guarantee to provide our customer with best service, but we could also use the clien's nominated freight agent as required.

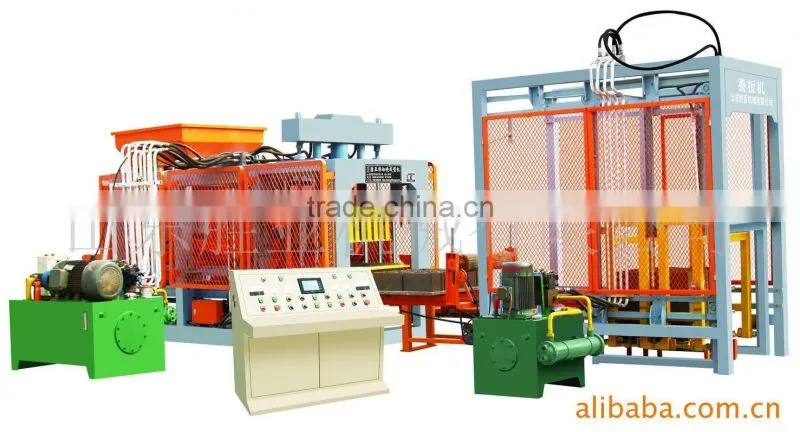

overall view of China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine
PLC controller system&hydraulic station of China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine
automatic stacking machine of China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine
block sweeper of China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine
PLD1200 batching machine of China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine

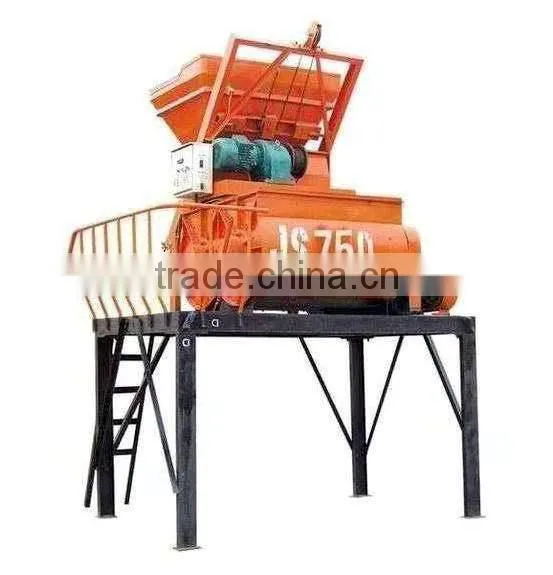

JS750 concrete mixer of China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine
COMMODITY NAME |
Forced concrete mixer |
|
MODEL |
JS750 |
|
SPECIFICATION |
1.discharging height :1.5m(2.7m/3.8m) 2.discharging form: manual operation/ air operated |
|
BRAND NAME |
Shengya |
|
PLACE OF ORIGIN |
China |
|
MOTOR POWER |
1.1KW |
|
MIXING POWER |
30KW |
|
LIFTING MOTER |
7.5KW |
|
CHARGING CAPACITY |
1200L |
|
DISCHARGING CAPACITY |
750L |
|
MAX.PRODUCTIVITY |
35M3/H |
|
SPEED OF MIXING DRUM |
30.5r/min |
|
NUMBER OF BLADES |
2*8 |
|
|
MAX. AGGREGATE SIZE |
scree |
80mm |
aggregate |
60mm |
|
|
OUTLINE DIMENSION (mm)
|
Transport dimensions |
5930*2300*6260 |
Working dimensions |
4146*2300*2800 |
|
WEIGHT |
6800KG |
|
conveyor belt of China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine
China product fully automatic system hydraulic concrete block making machine for build house in Africa high output block machine
Shandong Shengya Machinery in 120th Canton Fair
Our Adventages:
1,We offer different types of block machines, small, semi-automatic and fully automatic. And make all kinds of size of moulds according to customer requirements
2,We have 200 workers,50 sales manager and 10 professional designers for more than 20 years experience
3,Exported to more than 70 countries in the world, setting branch office in Nigeria, Tanzania and Algeria.
4,Professional factory: we are manufacturer, specializing in manufacturing block machines, and mixers for 20 years.
5,Competitive price with good quality, the deadline usually is 25-35 working days.
6,Rapid response to your needs: We will be answer within 24 hours. Welcome to contact with us if you have any problems. We are looking forward to cooperating with you.
Branch office in Africa:
1. Lagos and Abujia in Nigeria
2. Dar les salaam in Tanzania
3. Nairobi in Kenya
4. Alger in Algeria
5. Addis Ababa in Ehiopia
6. Douala in Cameroon
7. Kinshasa in DR. Cango
Other related machine in our company:
Any question about the machine,pls feel free to contact:
Nicole Yau
whatsapp:18816786369
QQ&Wechat:458317491
skype:nicole31795
Shengya is worthy of your trust!!
