QT4-20 Hydraulic automatic block making machine production line
ligne de production automatique de la machine de bloc hydraulique
It is a practical machine that simple in structure, artistic in figure. Especially suitable to the production of the standard bricks, it can produce various kinds of paving bricks, porous bricks, roads bricks etc.
a> Productivity of QT4-20 automatic hydraulic hollow blocks/paving blocks making machine/QT4-20 small hydraulic block machine production line
Brick kind |
Brick size |
Pcs/mold |
Mouding cycle |
Pcs/hour |
Pcs/day |
Hollow brick |
400*200*200 |
4pcs |
20-25s |
720pcs |
7200pcs/day |
Porous brick |
240*115*90 |
14pcs |
20-23s |
2500pcs |
25000pcs/day |
Standard brick |
240*115*53 |
28pcs |
20-15s |
5000pcs |
50000pcs/day |
b> Main Technical Parameters of QT4-20 automatic hydraulic hollow
blocks/paving blocks making machine/QT4-20 small hydraulic block machine production line
Main Technical Specifications | |
Dimension |
7100*1600*2610mm |
Rated pressure |
16MPa |
Main vibration |
platform |
Vibration frequency |
4600r /min |
Pallet Size |
1020*570*25mm |
Molding Cycle |
20-25(s) |
Overall Power |
27.5kw |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Theoretical workshop area:300-500m2,need about 3-
5workers,the curing area and stacking area arranged according to your specific situation.
c> used road paver
1) QT4-20 automatic pavers factory sale : PLC intelligent control.Man machine interface,control system equipped with complete logic control,production program,malfunction diagnosis system and remote control function.It doesn’t need a professional person but only need a simple trainning to the operator.
<![if !supportLineBreakNewLine]>
<![endif]>
2) QT4-20 automatic pavers factory sale :
Multifunction in one machine.Changing molds can produce various kinds of specification porous bricks,standard bricks,hollow bricks,with a double material-feeding machine can produce all kinds of the colored road bricks, grassland
bricks, and slope protection bricks etc.
3) QT4-20 automatic pavers factory sale :
It is a compact oil hydraulic machine according to the standard of international.Many parts from abroad ensure the quality of machine and take from the power.
4) Concrete brick machine price QT4-20 brick machine price:
Vibration system contains platform vibration and mould vibration.The platform vibration was drived by hydraulic oil and program,bringing a vertical and synchronal vibration and achieving low frequency in feeding material,high frequency making.According to different product,we can change the vibration.5) pavement machine :Application of digital control systems and sensor technology,combined with effective and makes all act exactness and trustiness.So that it is the same with different conditions.The adoption of a variety of advanced technology is easy to be operated.The system is of fault diagnosis system.

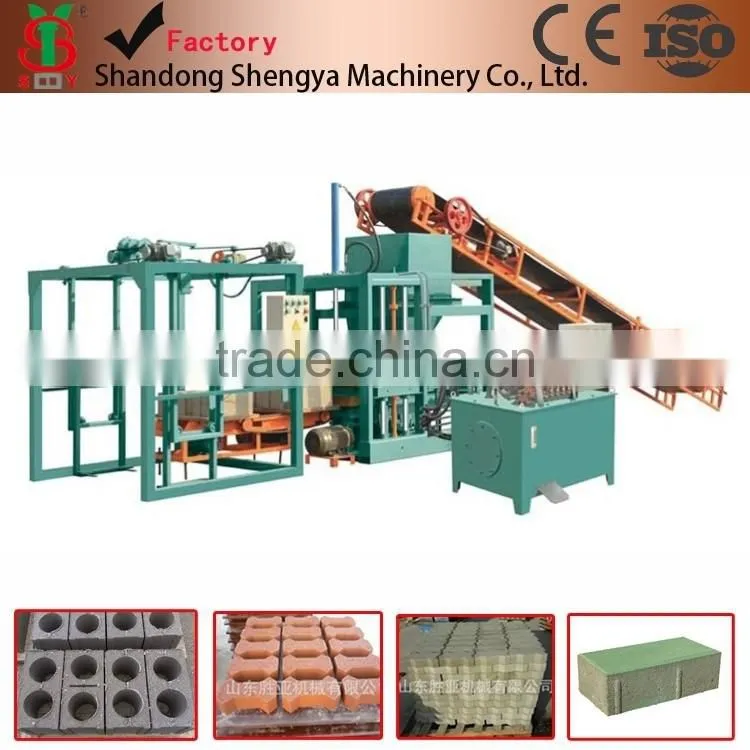

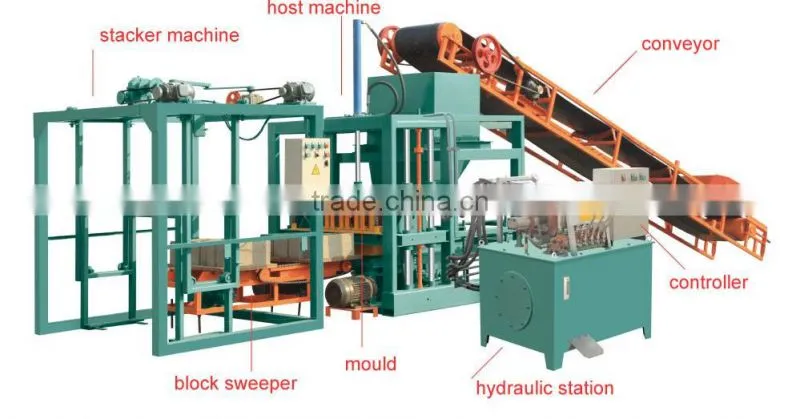

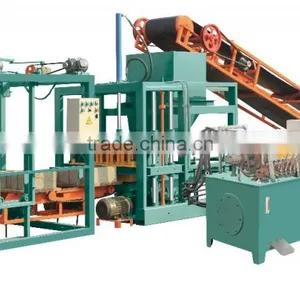

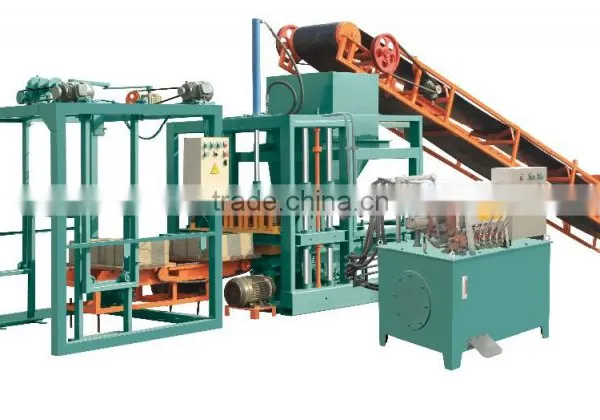

Photos Show of QT4-20 automatic hydraulic hollow blocks/paving blocks making machine
Capacity of the QT4-20 Automatic Block Machine

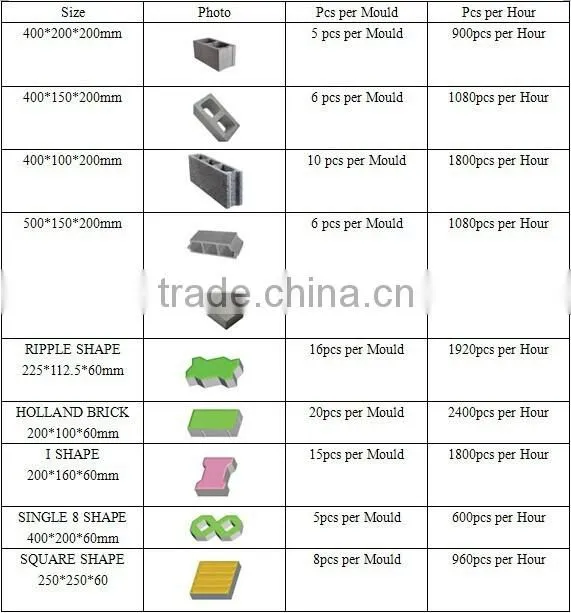

Block Samples for your choice(The machine can make any type blocks by changing its mould)
Packing: Iron Box or nude
Delivery Date: 15-20 days after confirming the down payment.
Shipping Method: By sea or as ur requirement
Shipping Port: Qingdao, China.
We have our long-term and reliable shipping company, which could guarantee to provide best freight service. However, if the customer required, we could use their own nominated shipping service.
Delivery:
You can choose to send your brick machines by LCL ( less than container) or whole container (20 GP or 40 GP).
We will arrange everything for you here in China, including packing, delivery, find forwarder, arrange shipping and so on.
You just need to pick up your brick machines when they arrived at your port; the newest information will be sent to you from time to time by us.
Selling is only the beginning of our service,
1, Our good after-sale service would provide our customer with both the technology and the skills.
2, Our overseas technicians would be there to help installation and teach the using method.
3, We could provide the manual brochure if needed.
4, We would provide professional help with plant building by providing the foundation drawing.
Our factory has 20 years history in manufacturing concrete block machine, interlocking clay brick machine, paver machine, pipe machine and concrete pole machine.
Our machines are wildly used in more than 80 countries and now we have my own branches with chinese workers in the following Countries and supply customers fast and excellet service.
Branch office in Africa:
1. Lagos and Abujia in Nigeria
2. Dar les salaam in Tanzania
3. Nairobi in Kenya
4. Alger in Algeria
5. Addis Ababa in Ehiopia
6. Douala in Cameroon
7. Kinshasa in DR. Cango
Our Advantage
(1)We offer different types of block machines, small, semi-automatic and fully automatic. and make all kinds of size of moulds, according to customer requirements
(2) We have about 200 workers,50 sales manager and 10 professional designers of 20 years experience
(3)Exported to more than 70 countries in the world, setting branch office in Nigeria, Tanzania and Algeria,Kenya, Mozambique , Ethiopia
(4)Professional factory: we are manufacturer, specializing in manufacturing block machines, mixers for 20 years.
(5)Competitive price with good quality, the deadline usually is 25-35 working days.
(6)Our worker will test the machine for making blocks before we send it out,So please rest assure.
(7)Rapid response to your needs: We will be answer within 24 hours. Welcome to contact with us if you have any problems. We are looking forward to cooperating with you.
