Specifications
machine adjustable leveling block QT6-15automatic ,germany techology
good production.
Characters: PLC intelligent control.Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesnt need a professional person but only need a simple trainning to the operator.
Product scope: It produces various bricks/blocks including color-face bricks (layered material feeding), through-body tiles, dock linkage blocks, road curb bricks,sod bricks, hydraulic blockshollow blocks, perforated bricks, and standard bricks etc.
Optional configuration:
1. Lift-slab Elevating Conveyor (block stacking machine):
According to the different type of bricks, the finished products will be moved from the discharge transmitter and pilled up automatically 3 to 8 layers by the elevating conveyor, and carried to the maintaining place by the fork lifter truck. It could reduce labor and ground.
2. Colour face material feeder (layered material feeding)
Equipped with color face material feeding device, it could make various color face bricks , through-body Environmental protection bricks, road curb rocks, hydraulic blocks and sod bricks and so on.

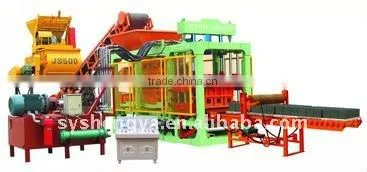

For QT6-15 Block Forming Machine, intelligence system of PLC is adopted to control, with man-machine interface and automatic diagnosis function. For the electro-hydraulic proportional valve is used in its vibrating system, the materia-feeding with low frequency and the shape-vibrating with high frequency have been achieved. Its material distributing system mounted with multirow of stirring forkscan quickly and evenly discharge the materials into the moulding box. Only by changing its moulds and dies, all kinds of blocks, standard bricks, cellular bricks, grass planting titles, etc. can be manufactured, with an annual production capacity of 50,000 cubic meters ofstandard brick. So, it is one kind of ideal equipment for producing wall materials of new type.
Main Technical Specifications | |
Production per Mould: |
6 pcs/mould (Standard Block: 400x200x200mm) |
36 pcs/mould (Solid Block: 240x115x53mm) | |
18 pcs/mould (Hollow Block: 240x115x90mm) | |
|
24 pcs/mould (Holland Brick: 200x100x60-80mm) |
Cycle Time: |
13-15 seconds |
Production per Day (8 Working Hours): |
Hollow Block (400x200x200mm): 11500pcs |
Solid Block (240x115x53mm): 57600 pcs | |
Hollow Block (240x115x90mm): 28800 pcs | |
|
Holland Brick (200x100x60-80mm): 28800 pcs |
Vibrating Frequency: |
3300 rolls/minute |
Vibrating Force: |
50 KN |
Motors Power: |
29.5 KW |
Machine Dimensions: |
9500x2800x2750mm |
Pallet Size: |
850x560mm |
Gross Weight: |
about 7T |
Raw Materials: |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products: |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc |
Applied Fields: |
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc |
