Technical specification for Pre-stressed concrete(PSC) pole
concrete pole machine produce sizes of concrete poles which are used for electrictiy power transmission
electric concrete pole making machine can make pole range from 6--30m,design with your requirement.the capicity range 40 to 200pcs

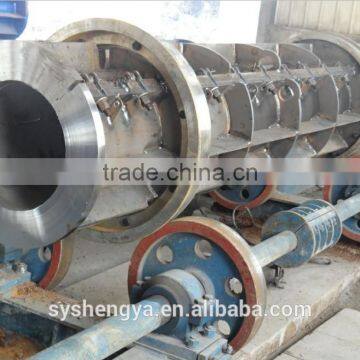

Pre-stressed Concrete Spun Pole Spinning Machine is a kind of mould equipment, which used for making a variety of different diameter and length of reinforced concrete poles and other cement products.
Pre-stressed Concrete Spun Pole Spinning Machine is operated by remote-controlled continuously variable motor. It runs smoothly and has a variable-speed range. So the production of concrete pipes and piles are good at quality.
The base of the machine is welded in box-type structure, sturdiness and durability. The bearings are sealed and reliable, long life. Random electric control equipment is complete and easy to use.
Working Principle
1. Adding the slurry into the mould, it is driven quickly and rotated in the same speed of the machine. Each component is separated and released under the centrifugal force. Usually the higher the slurry rotate speed, the better the slurry separating effect.
2. Centrifugal sedimentation is the use of different density of each component in the slurry, which is rotated under the centrifugal force. To realize the liquid - solid (or liquid - liquid) separation.
3. The speed of separation is slow when the viscosity of slurry is high.
4. It is good for centrifugal sedimentation when the slurry density is different in each component.
Technical Parameter
top end inner diameter (mm) |
Tread (mm) |
Running wheel diameter (mm) |
Length (m) |
150 |
2000 |
600 |
7-12 |
170 |
2000 |
600 |
7-12 |
190 |
2000 |
650 |
7-15 |
230 |
2000 |
650 |
6-9 |
300 equal diameter |
2000 |
600 |
6-9 |
350 equal diameter |
2000 |
650 |
6-12 |
310 |
2000 |
650-780 |
6-15 |
Features
1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).
2. Crack resistance can increase about 3~5 times.
3. Rigidity increases 1~3 times.
4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).
5. Good durability, can delay the existence and expansion of cracks.
6, Protect the environment on which human beings depend on for existence, and reduce the deforestation.
Supply Turnkey Solution for electric concrete pole making machine/ concrete poles plant !
Quality Guarantee
Our professional engineer would text machine carefully before loading,so please rest assure.
Aftersale Services:
We have established eight oversea offices in Algeria,Cote d'Ivoire,Kenya,Nigeria,Ethiopia,Cameroon,DR Congo and Tanzania.We also have 3 after-service sites aborad :Angola,Sudan,the united Arab Emirates. So we can supply you better and in time service.
Selling is only the beginning of our service,
1,our good after-sale service would provide our customer with both the technology and the skills.
2, our overseas technicians would be there to help installation and teach the using method.
3, we could provide the manual brochure if needed.
