Shengya professional cement plant PLD1200,PLD800 with three and two hoppers

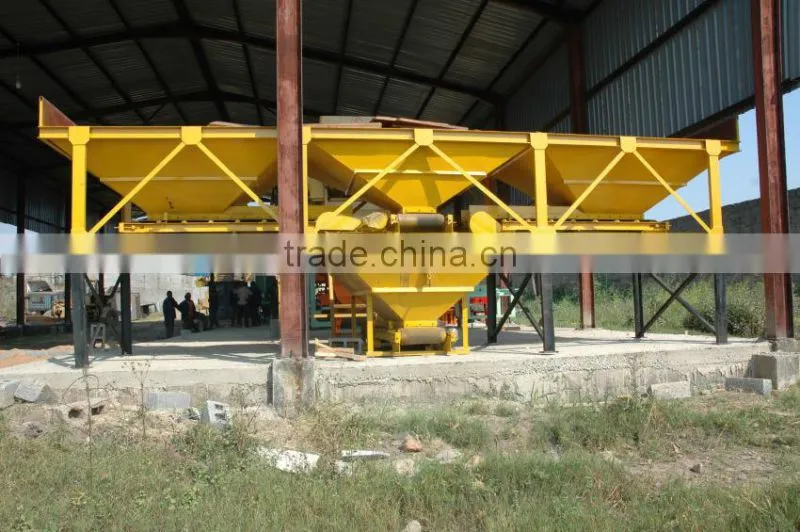

PLD1200 Batching Plant
The PLD1200 Electronic Computation Material Compounding Machine is mainly used to match kinds of materials proportionally for live construction, which can be designed into four or more material boxes as customer 'demand. The controlling system of the machine adopts imported controller to provide it good and reliable performance, and conveyer passing way to make sure materials' high accuracy.
Specifications:
Capacity of compound material box (L) |
1200 |
Capacity of raw material box (L) |
3500*3 |
Output capacity |
60m3 / h |
Proportion of Grain material |
±1% |
Max bearing weight of compound material box |
2000 Kg |
Variety of raw material |
3 |
Height of material feeding |
2300mm |
Speed of material conveying |
1 m/s |
Max size of grain material |
80mm |
Rated power |
3*2.2=6.6KW |
Weight of machine |
2900 Kg |
Overall size (mm L*W*H) |
5600*1722*3200 |

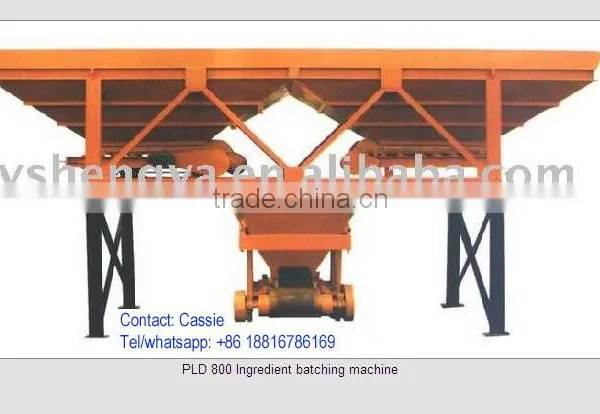

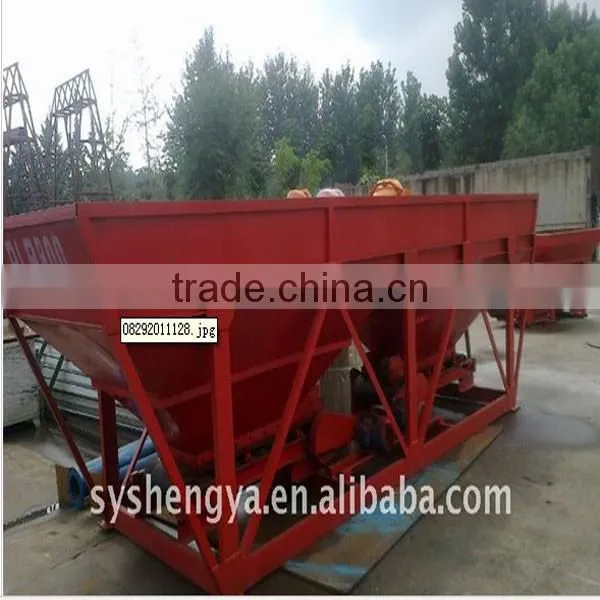

PLD800 Batching Plant
1,The PLD Electronic Computation Material Compounding Machine is an automatic batching equipment, which is mainly used to match kinds of materials proportionally for live construction.It can be designed into four or more material boxes as customer 'demand.
2,It can finish automatically 3-6 kinds of material batching process like sand, stone and cement according to concrete ratio designed by user.
3,Electric weighing, computer control, digital display, cable remote control is adopted, with accurate weighing and high batching precision, high speed,good control ability, easy operation etc.
4,The series concrete batching machine can be combined with corresponding mixer to form different concrete batching plant.
1) Cubage of weighing hopper: 1.2m3
2) Cubage of reserve hopper: 2 x 3m3
3) Productivity: 40m3/h
4) Batching precision: ± 2%
5) Max. Metage: 2000kg
6) Batching category: 2
7) Loading height: 2, 400mm
8) Measurement: Electronic weigher
9) Batching mode: Electronic strap (horizontal)
10) Unloading mode: Electronic strap (horizontal)
11) Power: 6.6kW
12) Weight: 2000kg
13) Dimensions: 5600x 1830x 2760mm
Warmly welcom to our factory for visiting!!
Quality Guarantee
Our professional engineer would text machine carefully before loading,so please rest assure.
Aftersale Services:
We have established eight oversea offices in Algeria,Cote d'Ivoire,Kenya,Nigeria,Ethiopia,Cameroon,DR Congo and Tanzania.We also have 3 after-service sites aborad :Angola,Sudan,the united Arab Emirates. So we can supply you better and in time service.
Selling is only the beginning of our service,
1,our good after-sale service would provide our customer with both the technology and the skills.
2, our overseas technicians would be there to help installation and teach the using method.
3, we could provide the manual brochure if needed.
