Specifications

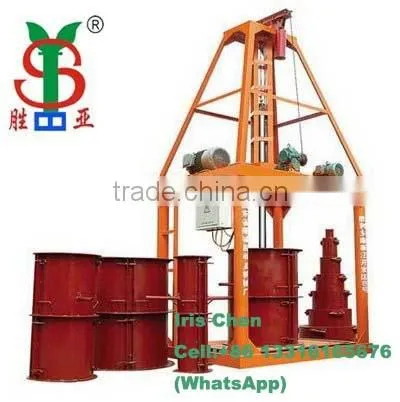

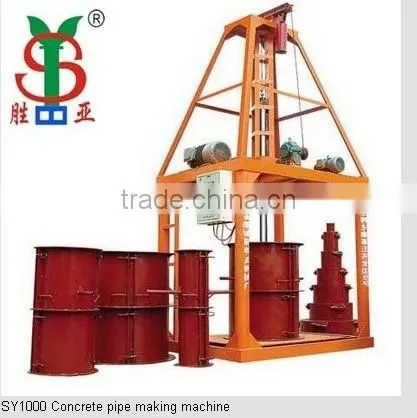

SY1000 concrete pipe making machine
1.Rated power: 5.5-22Kw
2.Standard: GB11836-89
3.Pipe specification:20-1000mm

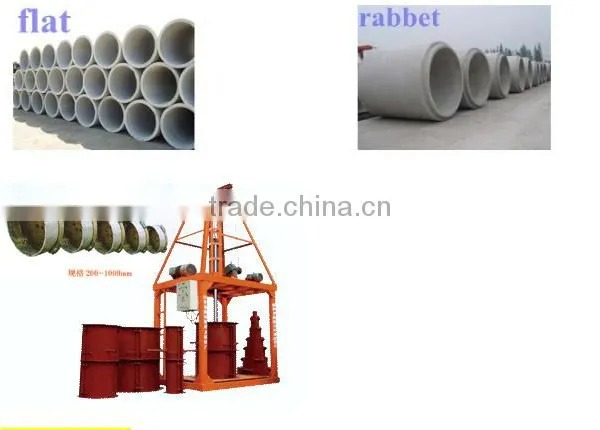

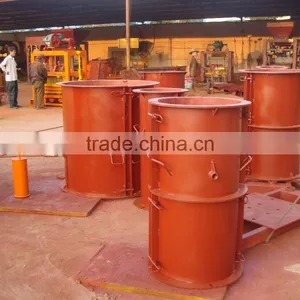

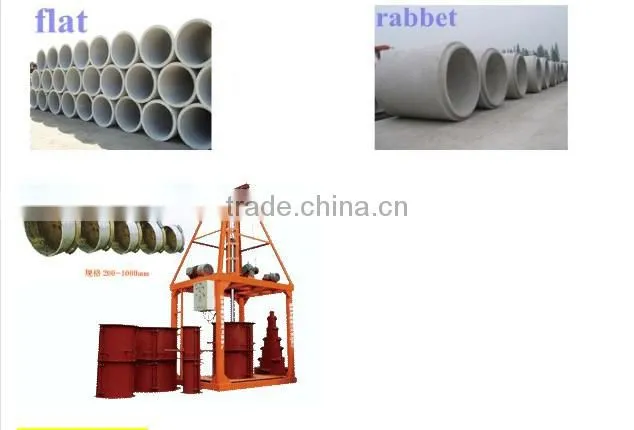

Shengya Concrete/cement pipe Moulding Machine
SY Series Tube Machine are ideal equipment for producing concrete tubes.now,it is reasonable in design ,beautiful in appearance,reliable in performance and convenient in operating.Its quality is up to State Standards of GB11836-89.

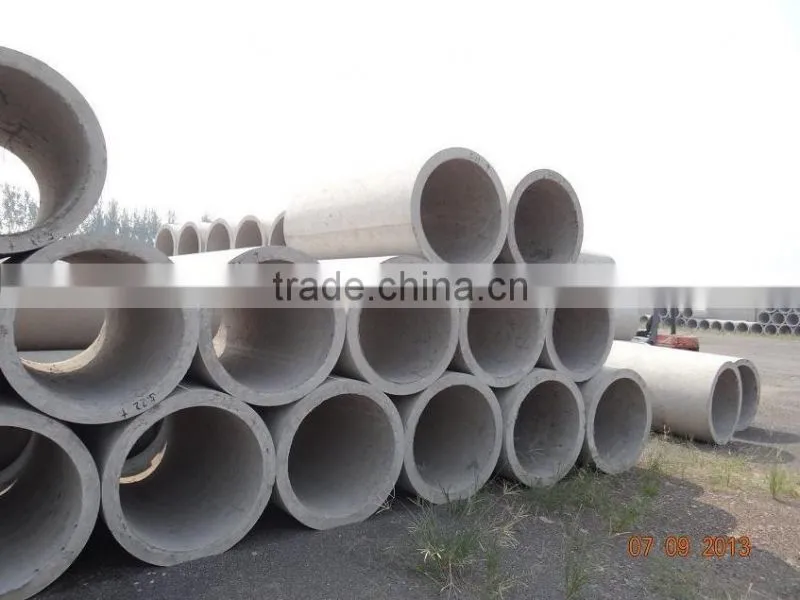

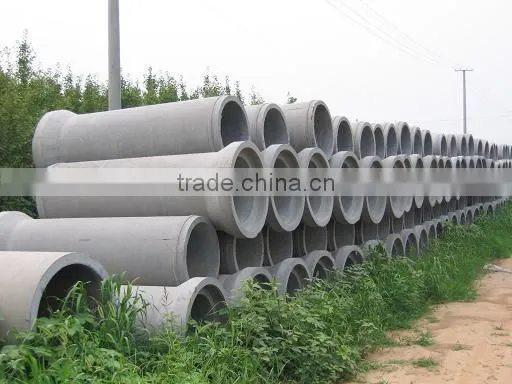

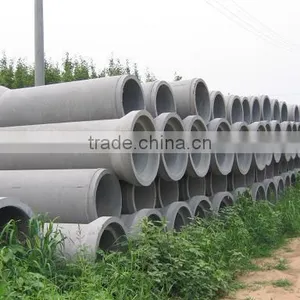

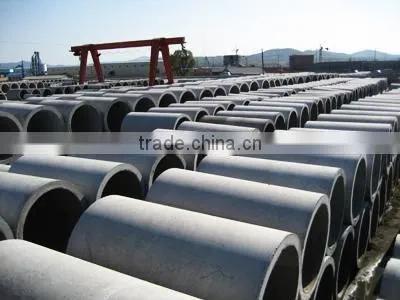

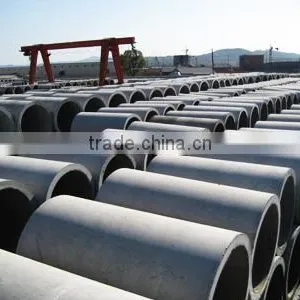

With this series of machine,the concrete tubes with specifications of 200-1000mm can be produced by using pulverized coal ash,slag,sands and crushed stone pulsing little quantity of cement.The tubes produced with this series machines are even in their wall thickness,smooth on surface,high in compression strength ,convenient and firm in connection,and excellent in anti-seeping,which are widely used in agricultural irrgation and draining projects in cities.
(1)Host machine infromation
max pressure: |
110t |
total power: |
7.5KW |
total weight: |
3000KG |
shape size: |
2200*1800*4150mm |
|
Production quantitiy:φ1000×1000mm φ800×1000mm φ600×1000mm φ400×1000mm φ500×1000mm φ300×1000mm φ200×1000mm | |
(2)JQ350 Mixer
Maim Technical Specifications | |
Discharging capacity |
0.35 m3 |
Feeding capacity |
0.56 m3 |
Productivity |
≥4m3/h |
Max. aggregates diameter |
80mm |
Mixer power |
7.5 KW |
Diameter |
1200mm |
Wegiht |
0.52Ton |
(3)Production capacity
type of pipe |
Pcs/ 8 Hr |
φ200×1000mm |
120 |
Φ300×1000mm |
120 |
Φ400×1000mm |
100 |
Φ500×1000mm |
90 |
Φ600×1000mm |
80 |
Φ800×1000mm |
50 |
Φ1000×1000mm |
40 |
Packing: Iron Box or nude
Delivery Date: 15-20 days after confirming the down payment.
Shipping Method: By sea or as ur requirement
Shipping Port: Qingdao, China.
We have our long-term and reliable shipping company, which could guarantee to provide best freight service. However, if the customer required, we could use their own nominated shipping service.
Delivery:
You can choose to send your brick machines by LCL ( less than container) or whole container (20 GP or 40 GP).
We will arrange everything for you here in China, including packing, delivery, find forwarder, arrange shipping and so on.
You just need to pick up your brick machines when they arrived at your port; the newest information will be sent to you from time to time by us.
Our factory has 20 years history in manufacturing concrete block machine, interlocking clay brick machine, paver machine, pipe machine and concrete pole machine.
Our machines are wildly used in more than 80 countries and now we have my own branches with chinese workers in the following Countries and supply customers fast and excellet service.
Branch office in Africa:
1. Lagos and Abujia in Nigeria
2. Dar les salaam in Tanzania
3. Nairobi in Kenya
4. Alger in Algeria
5. Addis Ababa in Ehiopia
6. Douala in Cameroon
7. Kinshasa in DR. Cango
