Home > Products > Cement pipe machine > SY1000 Concrete Pipe Making Machinery/Concrete pipe up to 1m
SY1000 Concrete Pipe Making Machinery/Concrete pipe up to 1m
- 20 Set / Sets per Month
- Qingdao.
- T/T L/C D/P D/A Credit Card PayPal
- CNC router for stone processing engraving machine
- Glass polishing machine JMB95A
- Aluminum Profile Bending Machine/Arc Bending Machine for Aluminum
- Automatic aluminum window corner connector cutting machine
- aluminum door and window frame cutting machine aluminum windows and doors machine
- Upvc Window Door Machine Four Head Welding Machine for PVC welding Window Machine
Product Details
Condition: | New | Type: | Pipe Production Line | Pipe Material: | Stainless Steel |
Application: | Drain Pipe | Production Capacity: | 40-160pcs/shift | Place of Origin: | Shandong, China |
Brand Name: | Shengya | Model Number: | SY-1000 | Voltage: | 220/380/415/420/440V |
Power(W): | 22KW | Dimension(L*W*H): | 2200*1600*4100mm | Weight: | 3000KGS |
Certification: | CE/SGS/ISO9001 | Warranty: | 12 Months | After-sales Service Provided: | Overseas service center available |
Product Description
Contact information:
Iris Chen: 0086 13316165676(WhatsApp&WeChat)
Skype: IrisChen26
QQ: 843221453
Facebook: Iris Chen
E-mail:brick11 at
Specifications
SY1000 concrete pipe making machine
1.Rated power: 5.5-22Kw
2.Standard: GB11836-89
3.Pipe specification:20-1000mm
SY1000 concrete pipe making machine
SY Series Tube Machine are ideal equipment for producing concrete tubes.now,it is reasonable in design ,beautiful in appearance,reliable in performance and convenient in operating.Its quality is up to State Standards of GB11836-89.
With this series of machine,the concrete tubes with specifications of 200-1000mm can be produced by using pulverized coal ash,slag,sands and crushed stone pulsing little quantity of cement.The tubes produced with this series machines are even in their wall thickness,smooth on surface,high in compression strength ,convenient and firm in connection,and excellent in anti-seeping,which are widely used in agricultural irrgation and draining projects in cities.
Main Technical Specifications:
power | 22kw |
overall | 2200*1600*4150mm |
electrical source | Max 1400r/h |
vibration frequency | 380V/50Hz |
total mass | 3000kg |
Capacity
type of pipe | pcs/8hours |
φ200*1000mm | 150 |
φ300*1000mm | 150 |
φ400*1000mm | 120 |
φ500*1000mm | 110 |

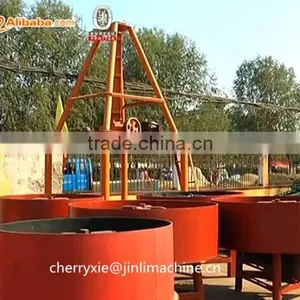

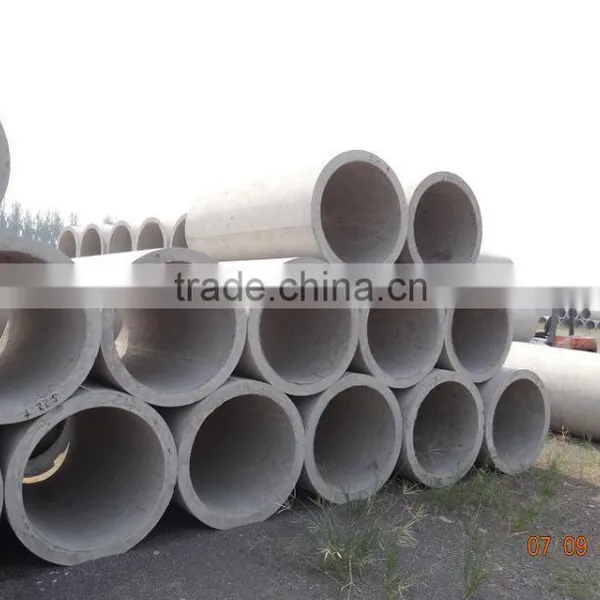

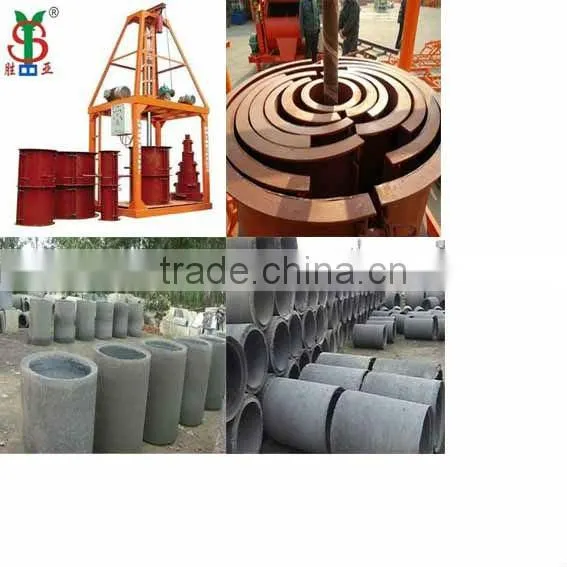

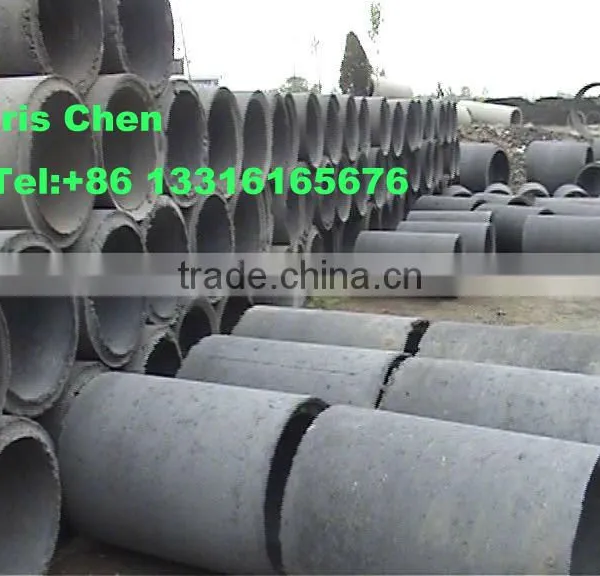

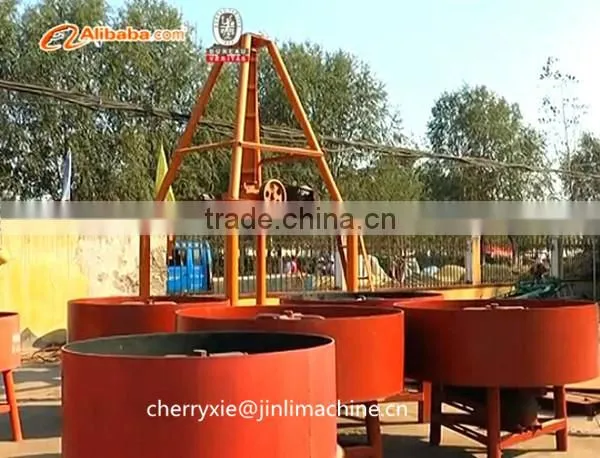

Pictures Showing
Company Info
Shandong Shengya Machinery Co.,LTD. was founded in 1995, We have been always working for the concrete block machines,concrete pipe making machine and mixers design, production and sales. For many years we have to perfect the quality, export block machines to more than 100 countries and regions, and also have office in Nigeria, Tanzania & Algeria now, then can serve the clients much better.
Reasons to choose us:
1,6 overseas branches available to provide professional service,reducing your concern to the minimum.
2,We offer different types of block machines, small, semi-automatic and fully automatic. And make all kinds of size of moulds according to customer requirements
3,We have 200 workers,50 sales manager and 10 professional designers for more than 20 years experience
4,Exported to more than 70 countries in the world, setting branch office in Nigeria, Tanzania and Algeria.
5,Professional factory: we are manufacturer, specializing in manufacturing block machines, and mixers for 20 years.
6,Competitive price with good quality, the deadline usually is 25-35 working days.
7,Rapid response to your needs: We will be answer within 24 hours. Welcome to contact with us if you have any problems.
We are looking forward to cooperating with you.
Please feel free to contact with Iris for further business talk! Thank you!
