Industrial 2 t output per day superplastic nylon cotton rope making machine
Introduction of the cotton rope making machine
1.This machine is suitable for making ropes with Nylon, PE, PP, yarns or strands .
2.It consists of rope making device and strand making device can produce rope
with Dia.3-26mm after continuous operation once omit extra working steps
from strand making to rope making, thereby the production efficiency is greatly
improved.
3.There is no waste yarn or scrap coming out during the production process, so
the ropes are more attractive and durable.
4.Raw material requirements: plastic wire, round wire, flat wire, mono-filament,
cotton and linen isometric fiber
5.Good quality ensure the stability and low cost, 10 years experience in this field
could deduce the repairment, high efficiency, low noise
Specifications of the cotton rope making machine
Model |
Speed(r/m) |
Rope diameter |
Motor |
Dimension |
Daily Capacity |
JX77 |
320 |
20 -26mm |
18KW-4 |
14.8m * 2.5m * 2.1m |
1.5-2T |
JX66 |
350 |
16 -22mm |
15KW-4 |
13m * 2.3m * 2.1m |
0.9-1.5T |
JX55 |
420 |
10 -16mm |
7.5KW-4 |
6.86m * 2m * 2.1m |
0.8-1.1T |
JX44 |
620 |
5 -8mm |
5.5KW-4 |
5m * 1.9m * 1.8m |
0.3-0.6T |
JX33 |
900 |
3 -6mm |
3KW-4 |
4m * 1.9m * 1.8m |
0.2-0.4T |

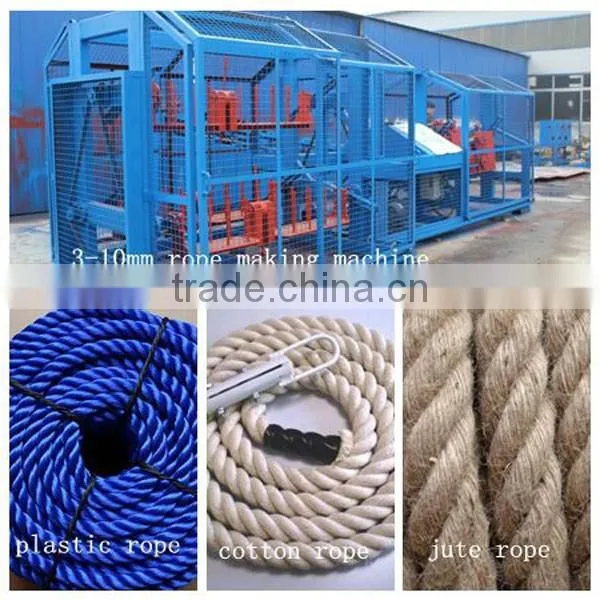

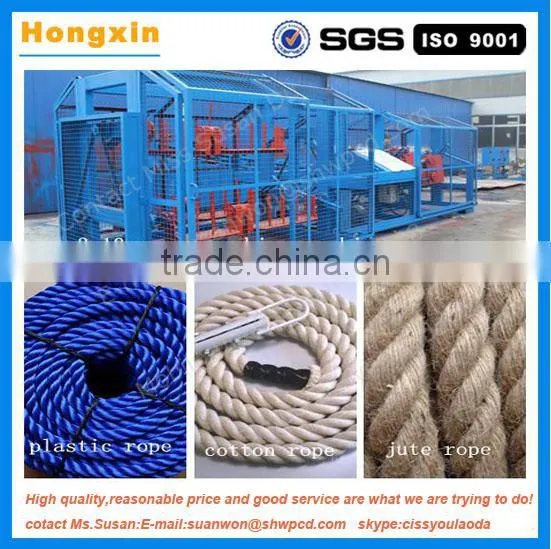

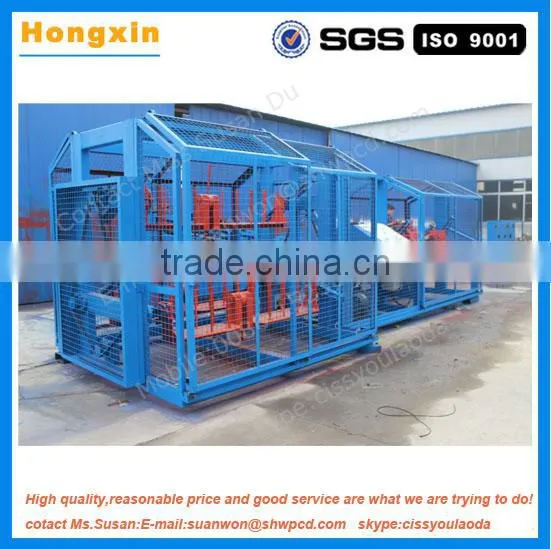

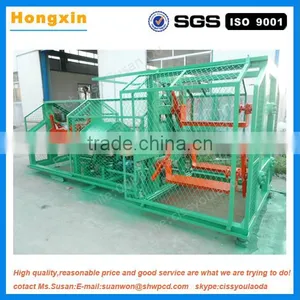

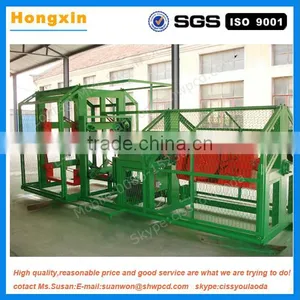

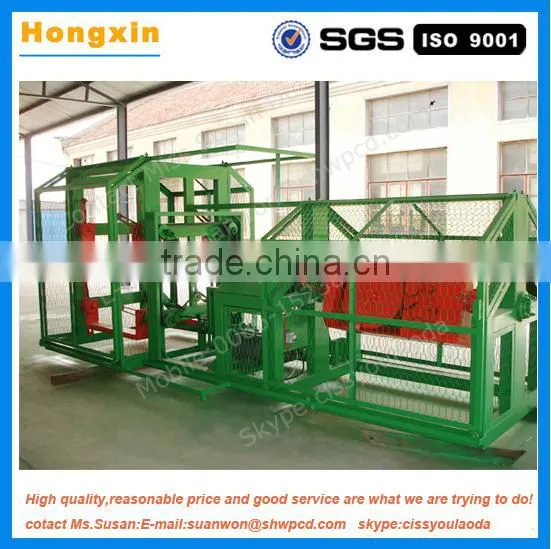

Pictures of the cotton rope making machine
If you are interested in this machine,please tell me.Your satisfication is what we are always struggling for!
