wire nail production line
Introduce of wire nail production line
This machine can be use scrap steel waste wire and plate steel dual-purpose full-automatic nail making machine, configures double system of scrap steel waste wire and plate steel nail making machine,
has the service of sending materials and nail making constructure and order. Automatic feeding and automatic making are to be
finished only once, no matter the scrap steel or plate steel, high speed nail making can be reached truly(350per/min.).
High quality of the finished product(qualified rate98%), low tooling loss(prolong the working life of tooling for more three times), simple operation(hand one hand the steel or plate steel to the feeding port, the following process can be finished automatically ).
Our automatic nail making machines are your ideal option for investing on nail making equipment. Welcome to pick and buy.
Features:
(1).Both of the scrap iron wire and the new steel rod can be used to make nails,and the profit using waste steel is 5 times of that using new steel.
(2).You don't need to change any thing if you want to make different length of nails of same diameter.
(3).It has the features of high speed, low noise, less impact and good continuity.
(4).We can make you master the good skills to make good looking nails such as whether it is straight,whether the nail head is round etc.
(5)Low power consumption,more profit.
(6)Installation service available,free training available,clients factory in your country visit available.
Technical Parameter of wire nail production line
| parameter | unit | QXY001 | QXY002 | QXY003 | QXY004 | QXY005 |
| Dia of nail max | mm | 5.5 | 4.5 | 3.4 | 2.8 | 1.6 |
| Dia of nail min | mm | 3.7 | 2.8 | 1.8 | 1.2 | 0.9 |
| Length of nail max | mm | 150 | 100 | 80 | 50 | 25 |
| Length of nail min | mm | 80 | 50 | 30 | 16 | 9 |
| Signed out put | pcs/min | 200 | 260 | 320 | 350 | 450 |
| Moter power | kw | 5.5 | 4 | 3 | 2.2 | 1.5 |
| Weight(approx) | kg | 2500 | 2000 | 1400 | 1200 | 560 |
| Overall dimensions | mm | 2800x1800x1800 | 2200x1600x1650 | 2000x1400x1400 | 1700x1300x1400 | 1500x1300x1200 |
Picture show

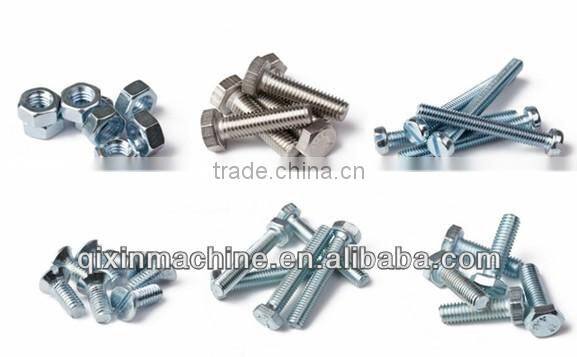

Samples for reference
The packing
The shipping
1.Passionater Salemen help you to well know our products and company
2.Experienced engineer and workers produce your orders
3.Professional inspector check Rides Quality before delievery
4.Excellent technician guide Rides Assemble at your place
5.Creative Designers Programme your indoor or outdoor site, and design Customized Ride
according to your demand.
6.good after-sales service ,offer installation CD or send our engineer to help you if needed
Our office and factory
Thank you for taking the time to visit our website . Any colors, any logo accetpable, we can offer smaple to you, Pls leave an inquiry to know more details about Price, Packing , Shipping and Discount. Explore for more product information.
