Hot selling coal powder ball pressing machine machinery/gypsum powder briquette press machine with good quality
[Applications]
Hydraulic dry powder ball briquetting machine can be used to suppress the iron, aluminum, iron oxide, carbon black, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke breeze and other powder, powder, scrap, waste, widely used refractory, power plants, metallurgy, chemicals, energy, transport, heating and other industries.

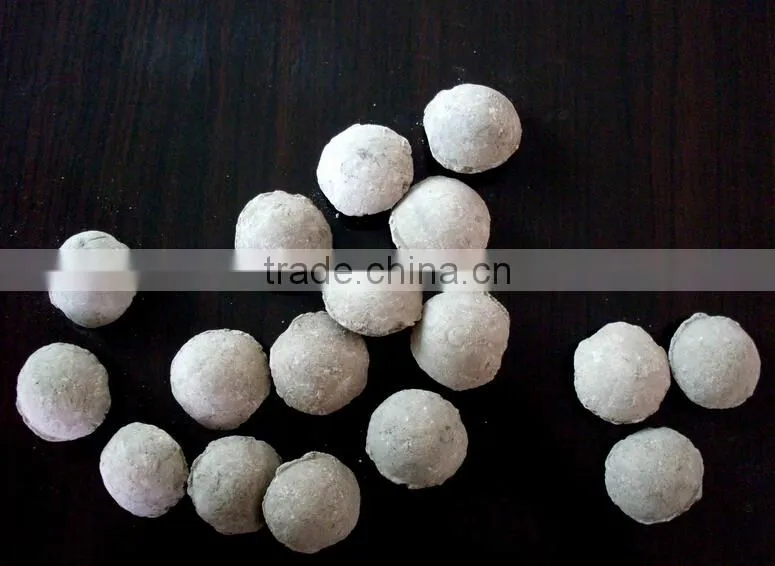

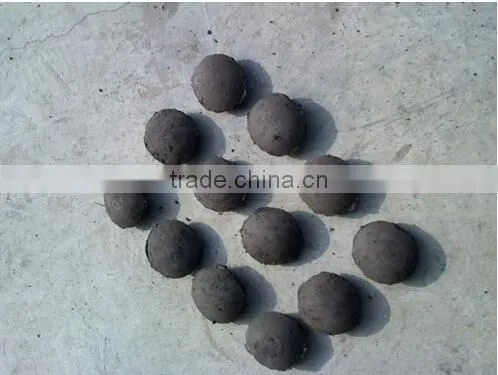

[Finished] spherical shape
The machine can produce square, egg-shaped ball, with round, oval type, pillow type and other special shapes finished ball.
[Economic]
Materials produced by the pressure of the ball machine after molding, energy saving, easy to transport, increase waste utilization, with good economic and social benefits.

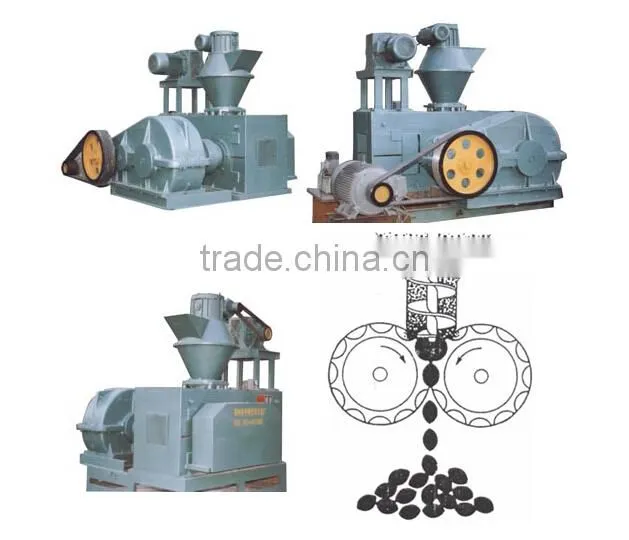

[Structural principle]

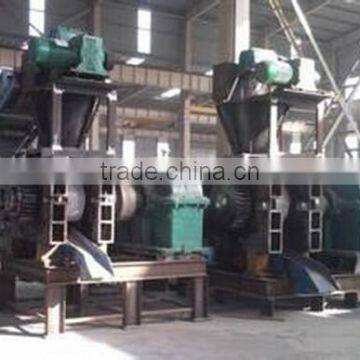

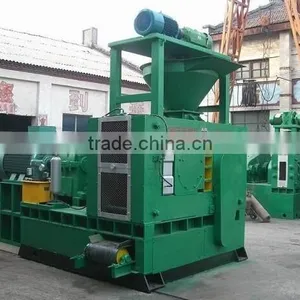

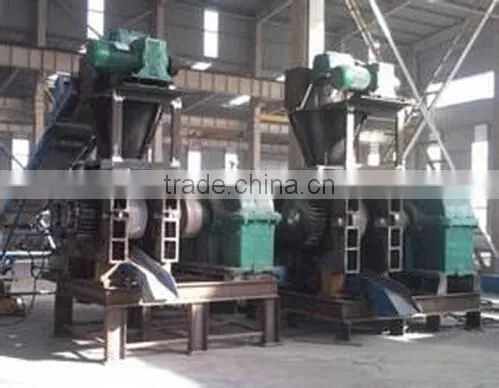

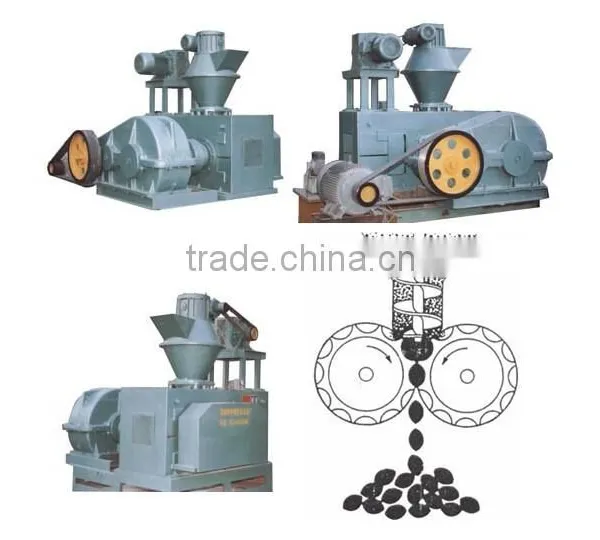

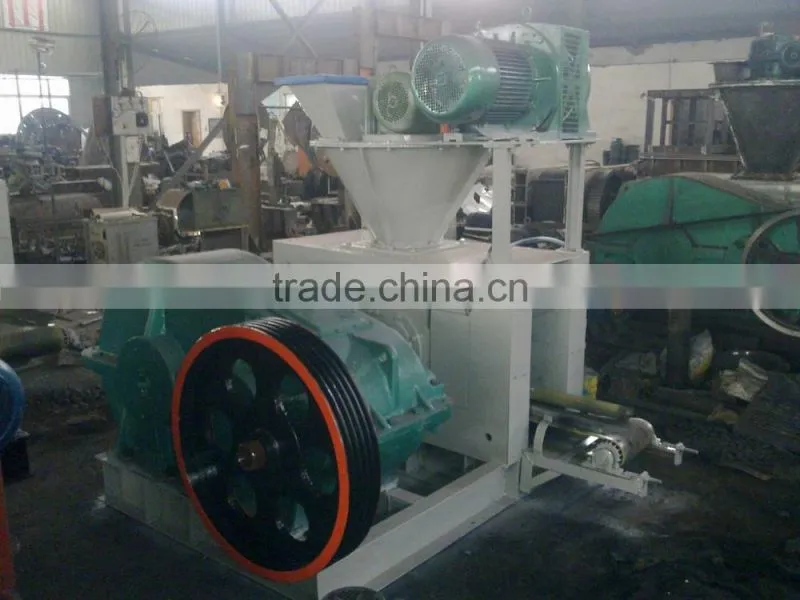

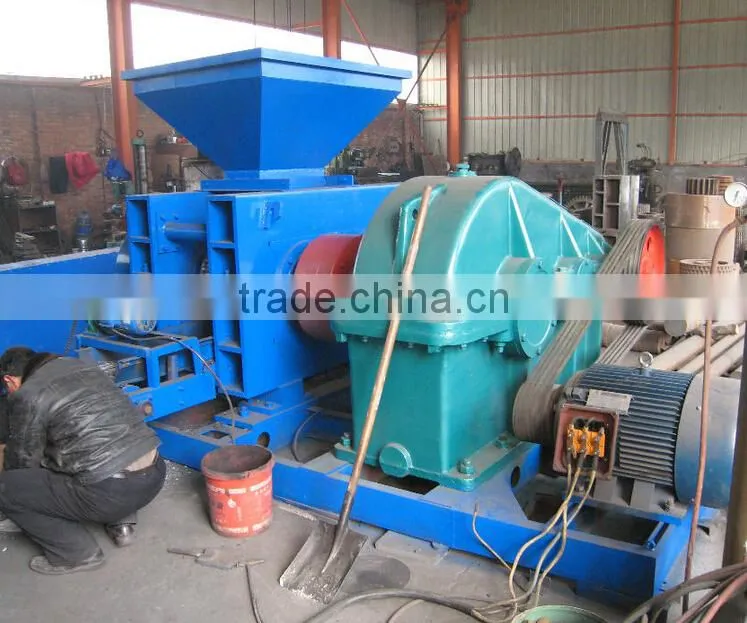

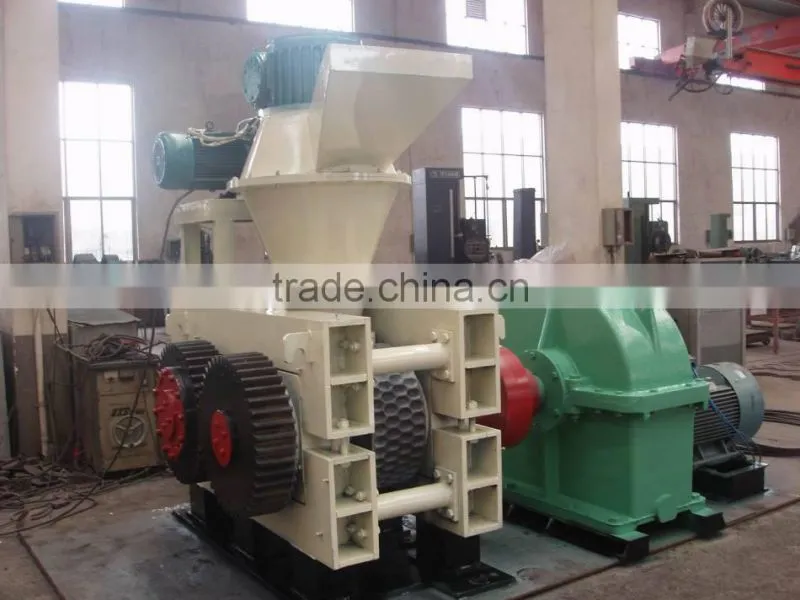

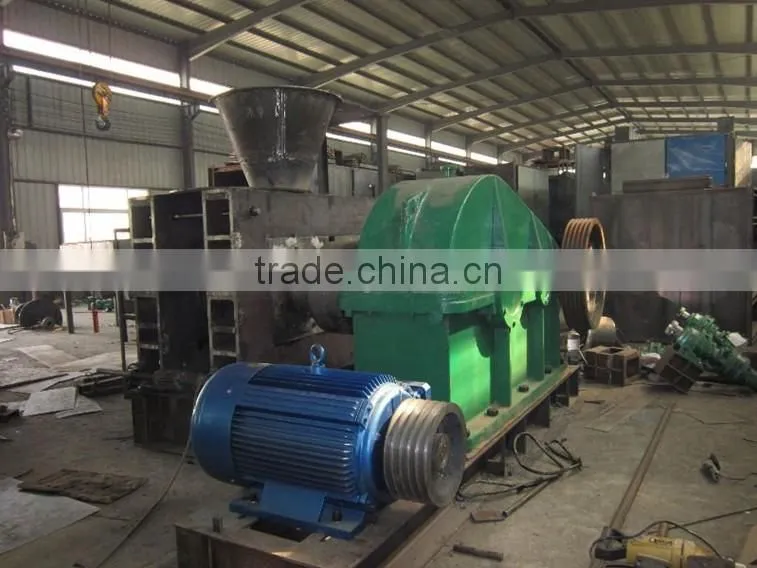

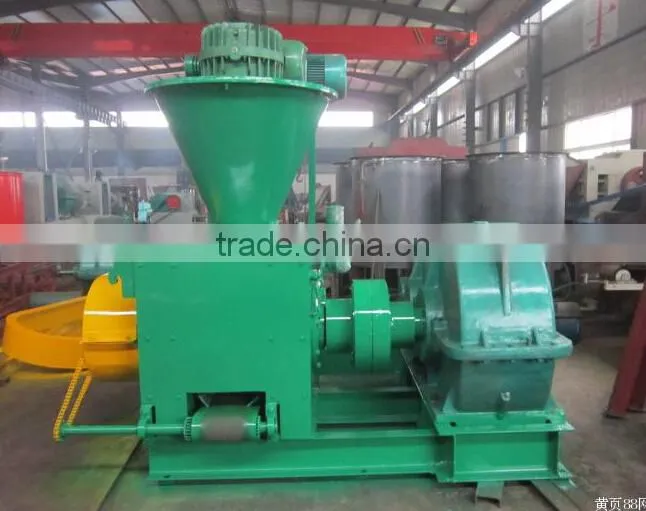

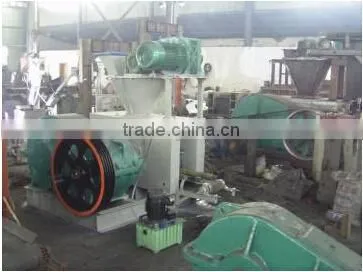

Powder ball press machine mainly by the host, motor, reducer, conveyors components. Its internal components made of leather roller 65 Mn casting, using a combination of the assembly can be replaced after wear. Internal pressure ball machine has a buffer device can better protect the device against a hard object impact. (The following figure followed reducer, roller, powder ball press machine semi-finished map)
Technical parameter:
Model |
WLZYGF- 0.5 |
WLZYGF- 1.0 |
WLZYGF-1.5 |
WLZYGF- 2.0 |
WLZYGF-2.5 |
WLZYGF-3.0 |
WLZYGF-5.0 |
Capacity |
0.5T/h |
1.0T/h |
1.5T/h |
2.0T/h |
2.5T/h |
3.0T/h |
5.0T/h |
Roller dia(mm) |
φ299 |
φ367 |
φ367 |
φ399.5 |
φ480 |
φ522 |
φ700 |
Roller width(mm) |
110 |
183 |
183 |
232 |
196 |
196 |
225 |
Power |
18.5kw |
37kw |
45kw |
45kw |
55kw |
55kw |
75kw |
Reducer |
ZQ650 |
ZQ850 |
ZQ85 |
ZQ850 |
ZQ1000 |
ZQ1250 |
ZQ1450 |
Roller materials |
9CY2Mn |
9CY2Mn |
9CY2Mn |
9CY2Mn |
9CY2Mn |
9CY2Mn |
9CY2Mn |
|
Bearing model Bearing qty |
7522 8set |
2097730 4set |
2097730 4set |
20997730 4set |
2097736 4set |
2097744 4set |
2097752 4set |
Ball shape |
square, egg-shaped ball, with round, oval type, pillow type and other special shapes finished ball. |
||||||

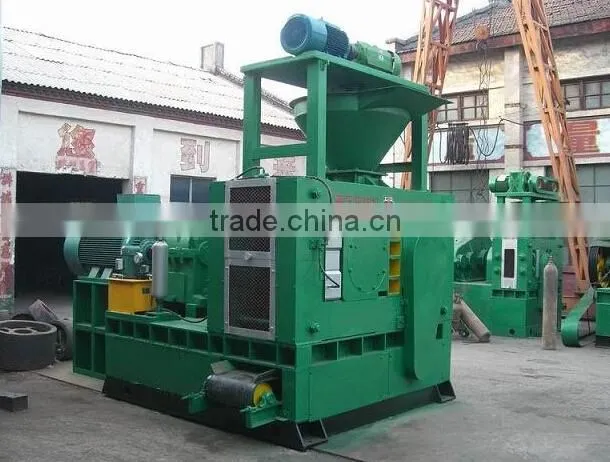

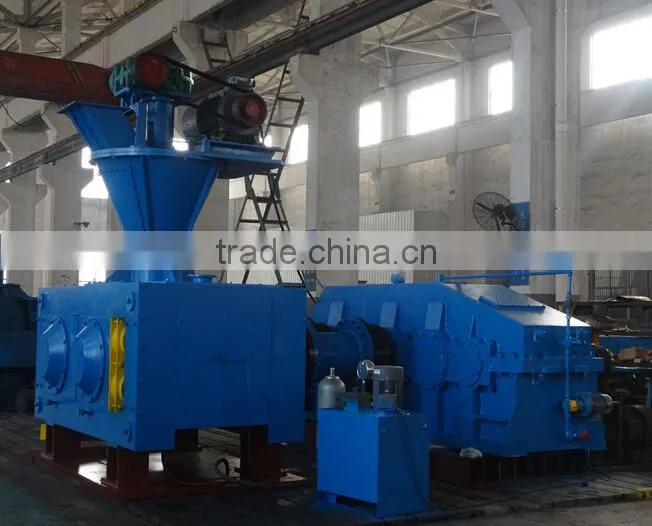

Hydraulic coal or charcoal pressing machine
Hydraulic charcoal Briquetting machine is the main equipment in the coal forming product line, mainly used for briquetting coal powder, coke powder ,sludge ,calcareousness ,active carbon etc . This kind of machines have solved the problems of the finished ball with low intension, mainly used in the field of metallurgy ,chemical and so on . The forming parts is made of alloy steel, passed by heat treatment ,hardness testing etc special craftwork .
Model |
SCMQ-5 |
SCMQ-10 |
SCMQ-15 |
SCMQ-20 |
SCMQ-30 |
SCMQ-40 |
|
Capacity(T/H) |
2.5 |
5 |
7.5 |
10 |
15 |
20 |
|
Roller Diameter(mm) |
522 |
630 |
630 |
800 |
1000 |
1200 |
|
Roller Width(mm) |
212 |
310 |
415 |
540 |
800 |
1000 |
|
Total pressure (tons) |
14 |
30 |
60 |
130 |
200 |
270 |
|
Adjustable Line pressure (T/cm) |
0.8 |
1.2 |
1.41 |
1.68 |
1.8 |
2.0 |
|
Roller speed(r/min) |
17 |
17 |
17 |
16 |
16 |
16 |
|
Main power |
15 |
30 |
37 |
55 |
75 |
110 |
|
Reducer model |
ZQ500 |
ZQ650 |
ZQ850 |
ZQ1000 |
ZSY400 |
GDC1200 |
|
Hydraulic station model(Mpa) |
DBD0.8 |
||||||
Rated pressure |
Mpa8 |
Mpa10 |
Mpa12 |
Mpa14 |
Mpa16 |
Mpa20 |
|
Packaging: Export wooden box package
Delivery time: 10 working days
Remark:
1. Delivery time: 10days after received your advanced payment.
2. Payment terms:40% Advanced payment by TT when you place the order
60% Balance by TT when send you scanned bill of lading.
3. Documents: The original documents will post to you immediately when we received your balance by DHL or UPS or TNT express.
The original documents include:
1. Original bill of lading( three original and three copy)
2. Original commercial invoice
3. Original sales contract
4. Original packing list
4. Loading port: Qingdao seaport , China
5. The quotation valid time: valid for one month.
