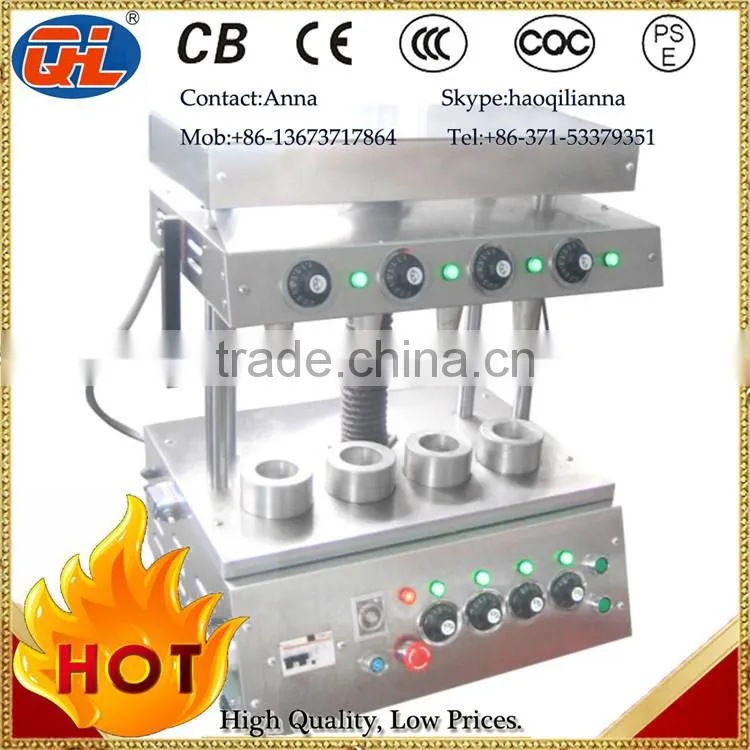

High quality hot sale cone pizza machine 4 cone maker|cone pizza oven
Introduction pizza cone machine :
Pizza cone machine is suitable for Tea restaurant, cake room, bakery, drink store, cafe,
Western restaurant etc.
1. Equipped with automatic alarm, this pizza cone machine could adjust temperature
as your need.
2. The Pizza cone mchine is usually used with the Pizza cone oven.
3. This pizza cone machine is made of food grade material, safe and healthy. The shell of
machines are make of Stainless steel.
4.The pizza cone could be hold in hand as the ice cream.It is fast and convenient food,
easy to take and delicious&popular.This machine is easy to operate and could save time.

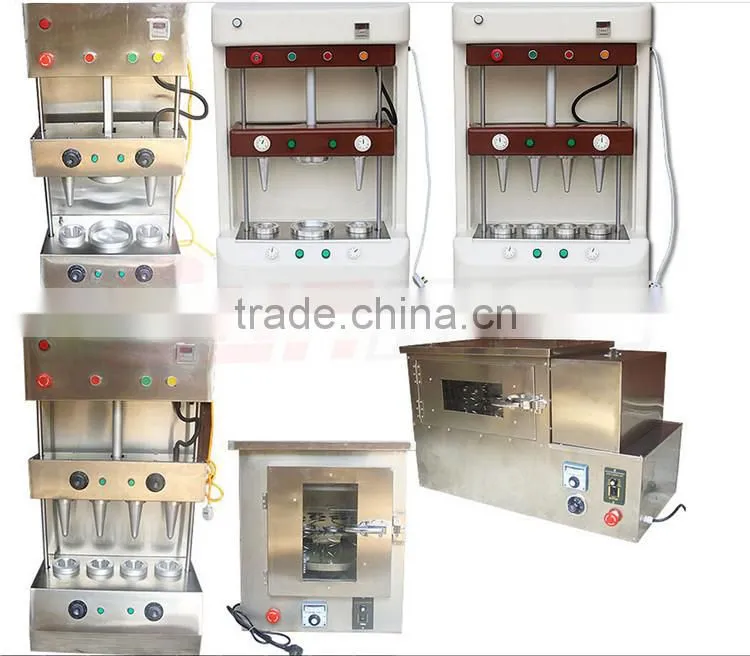

Flow chart of the pizza cone machine:
1,Flour mixer:
Model |
Volume |
Power |
Dimension |
Weight |
HQL-4- 2G20 |
20L |
2.2kw |
800*400*900 |
110KG |
2,Dough ball making machine:
Model |
Motor |
Capacity |
Dimension |
Weight |
HQL-4-2D30 |
50Hz |
1800pics/h |
580*660*978
|
200KG |

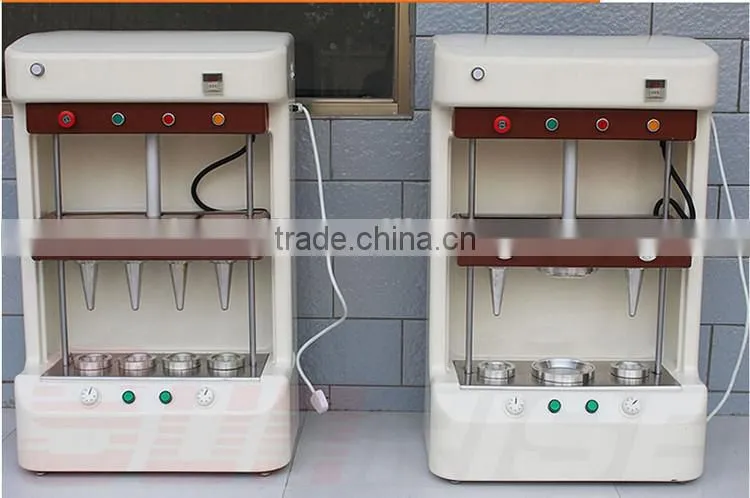

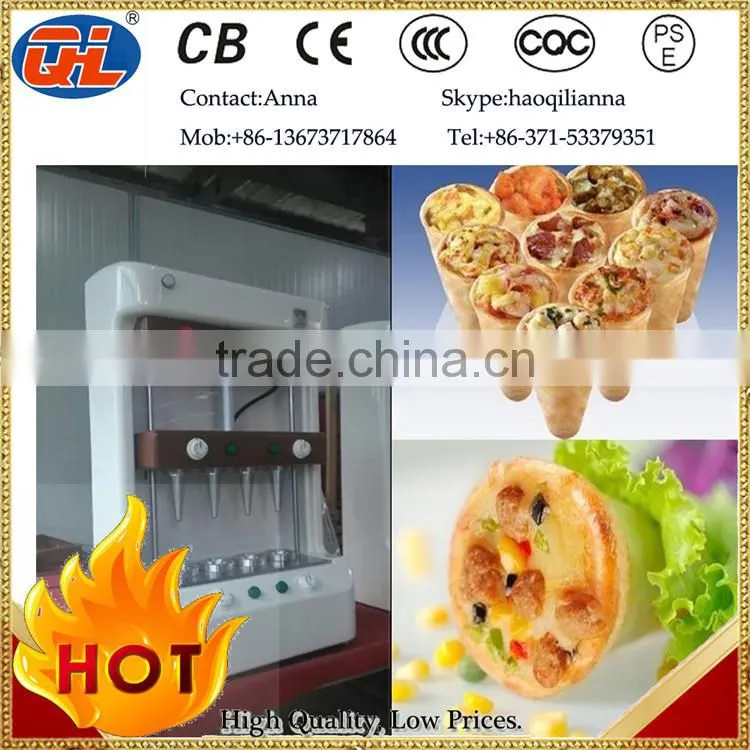

3,Cone pizza machine:
Model |
capacity |
Motor |
Weight |
Dimension |
HQL-4-PC5 |
4pcs/batch (180-200pcs/hr) |
6.35kw |
130KG |
680*550*790 |

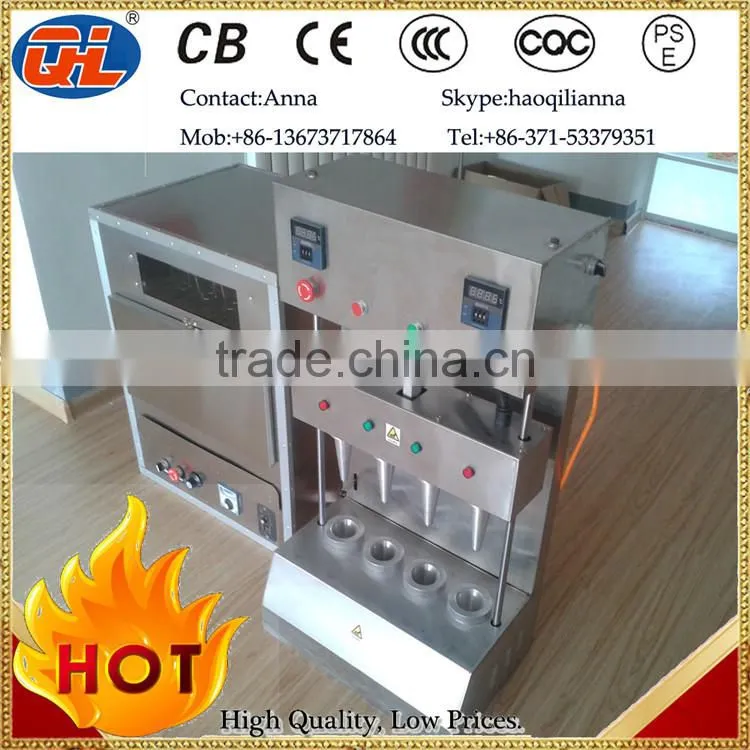

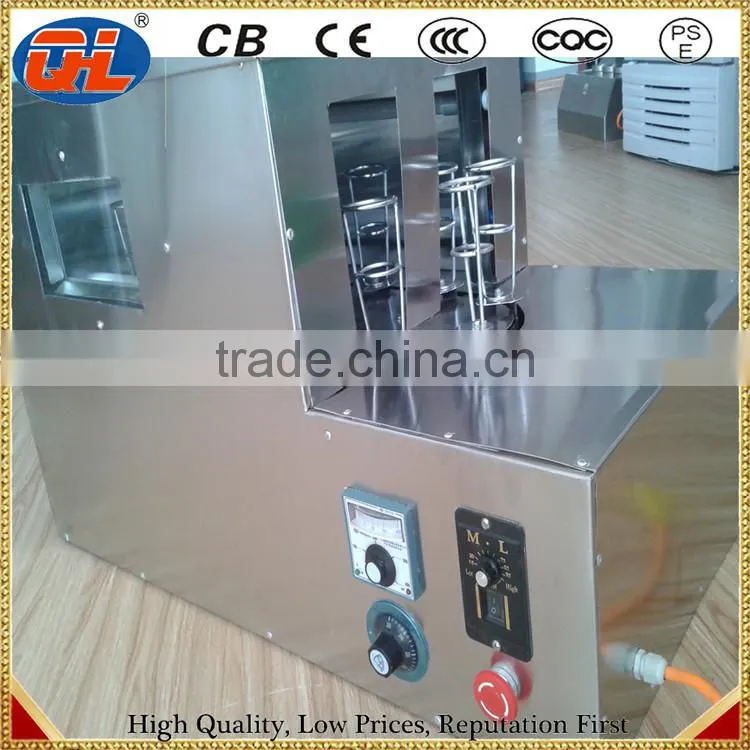

4,Cone pizza oven:
Model |
power |
Capacity |
Dimension |
Weight |
HQL-4-HK |
2.4kw |
12 pics/set |
720*430*410mm
|
101kg |

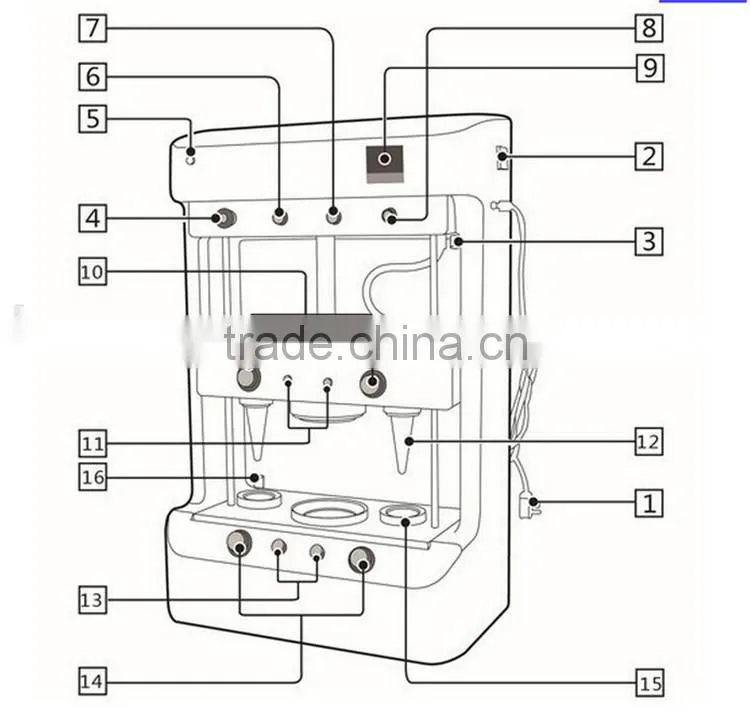

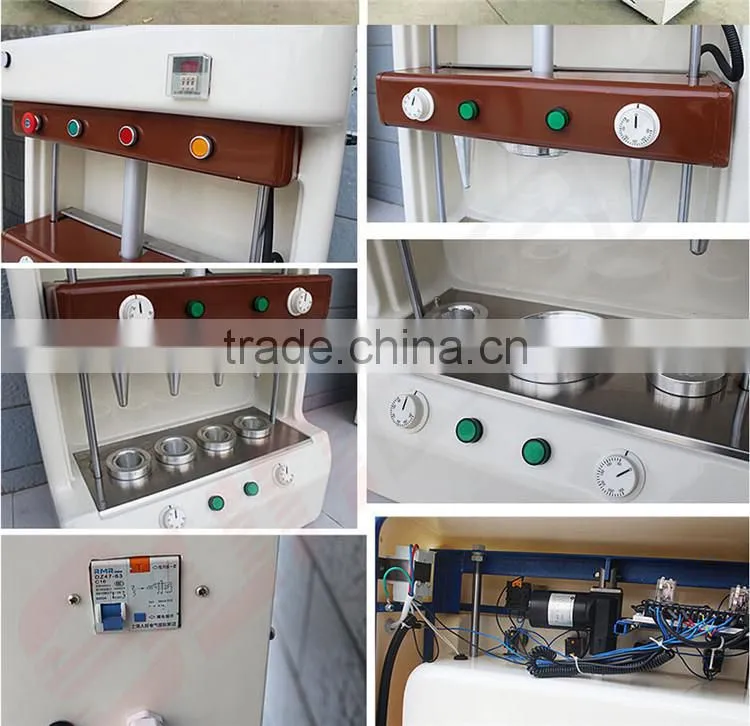

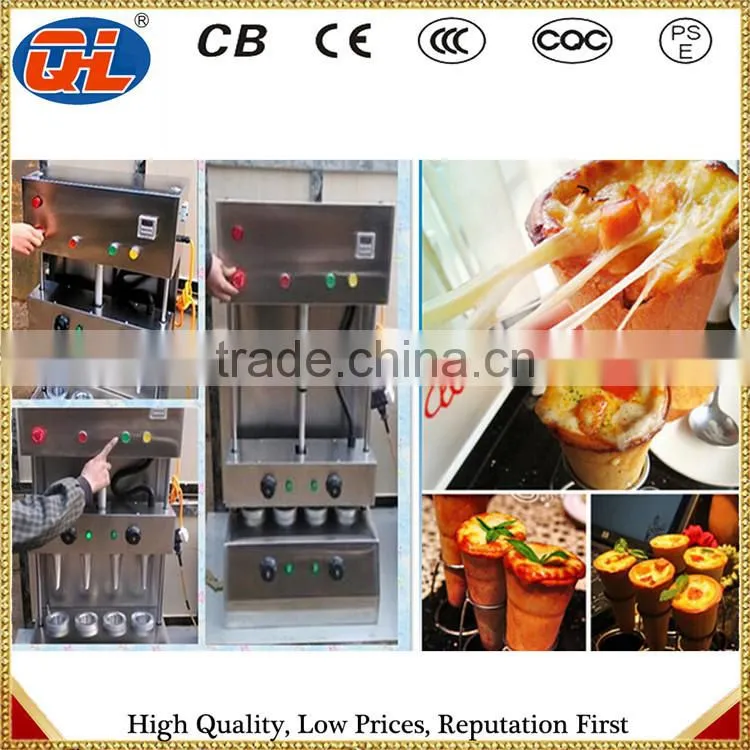

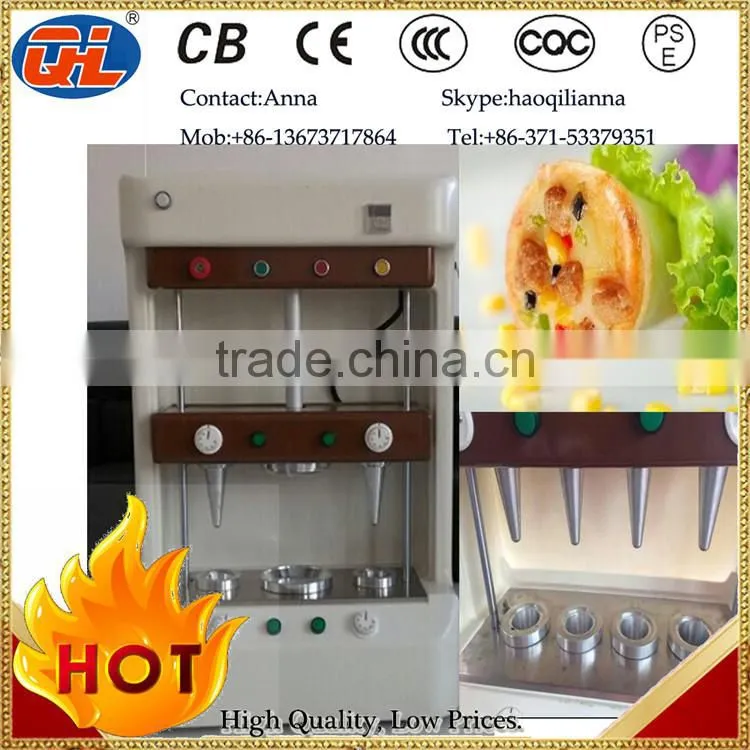

1. The power socket
2. The leakage protector:When the leakage automatic tripping
3. Insurance tube: Voltage instability cases automatic fuse, protect the click
4. Emergency switch:Twist open the power supply to the right;Down by the machine stop running
5. The power indicator light:According to the power supply indicator
6. The rise of upper die switch (red): Press the switch, upper die automatically rise to the initial position
7. Start switch (green): Press the switch, upper die down
8. Deflated switch (yellow):Press the switch (2-3 times), lower die automatically deflated, prevent damage of egg barrels
9. Time controller:Control of upper die and lower die, 8 seconds, generally do not need to adjust.
10. The mould temperature controller:Can adjust the temperature of upper die, general control in 220-220 degrees Celsius
Controller A (left) control on the left side of the two upper die
Regulator B (right) control on the right side of the two upper die
11. The mold temperature indicator:After upper die temperature indicator set temperature, the indicator lights
When the upper die temperature reaches the set temperature, light is put out
A corresponding indicator light (left) and A regulator
Light B (right) and the corresponding controller B
12. Die on: Inside the cone shape mould, reach the set temperature, mold temperature on the die can work.
13. Mould temperature controller:Can adjust the mold temperature, general control in 240-240 degrees Celsius
Controller A (left) control on the left side of the two lower die
Regulator B (right) control on the right side of the two lower die
14. Mold temperature indicator: Lower die temperature indicator set temperature, the indicator lights
When the upper die temperature reaches the set temperature, light is put out
Indicator light (left) and A lower die regulator. A corresponding
Light is B (right) and the lower die controller corresponding to B
15.Die under:Cone outer molding mold, mold temperature reach the set temperature, lower die can work.
16. The switch contact point: Can manually adjust the height, can be used to adjust the cone thin thickness
Finish product:
